Single belt drum (LB1) on building front

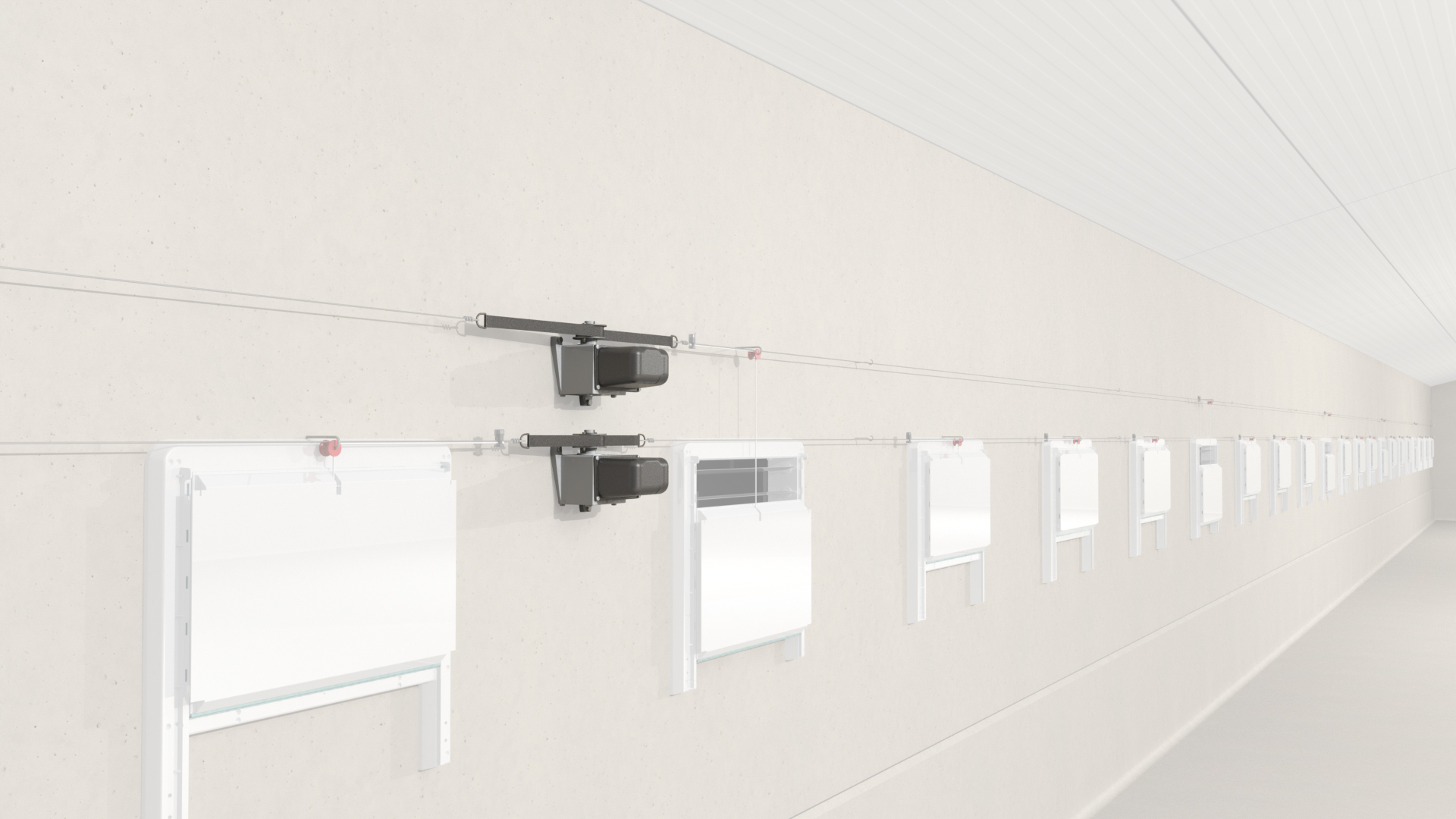

Double belt drum (LB2) in middle of building
●
●
HomeDrive SystemsDrive systems for poultry buildingsDrive systems for ventilationAir inlet valves (belt)

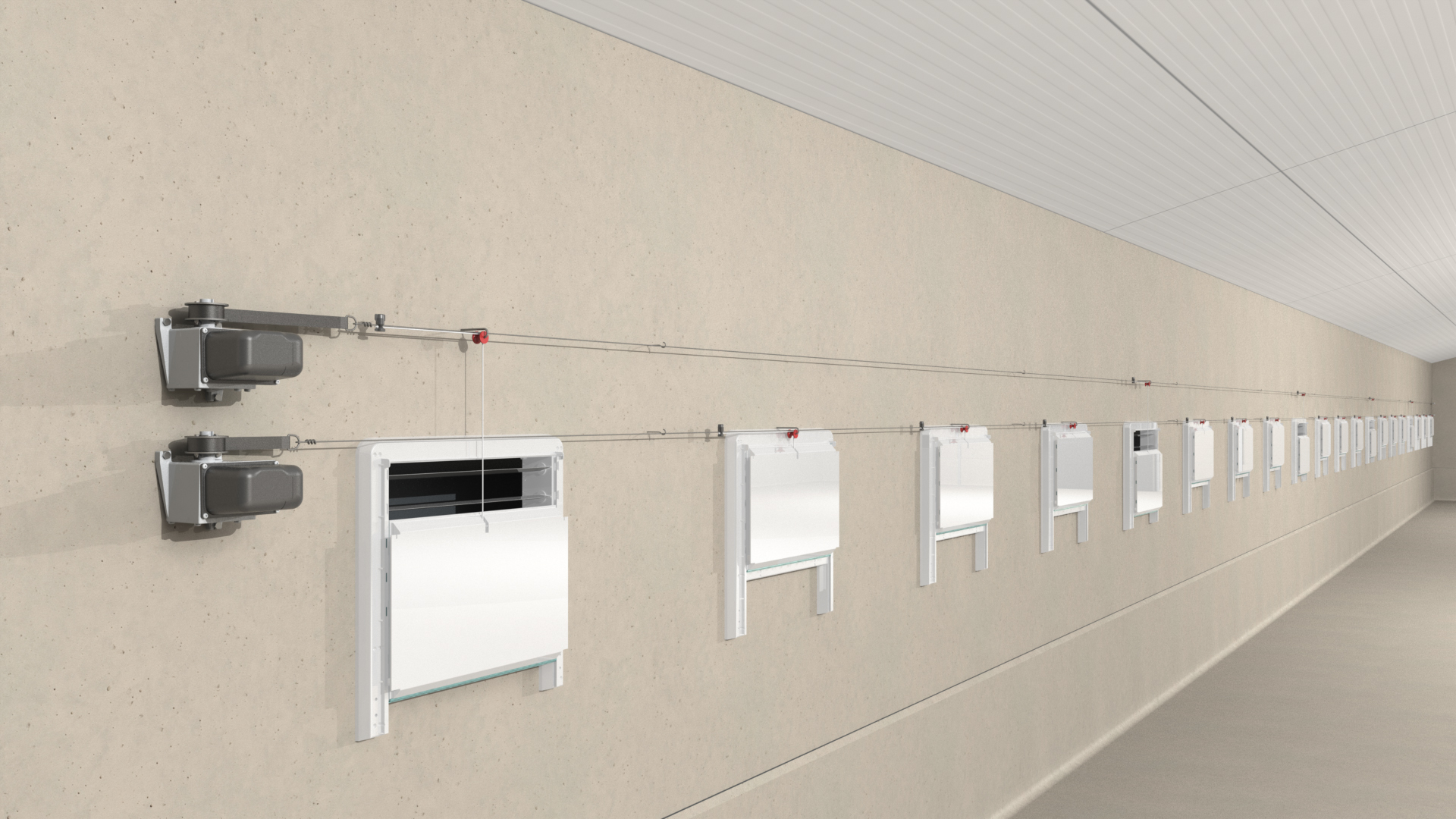

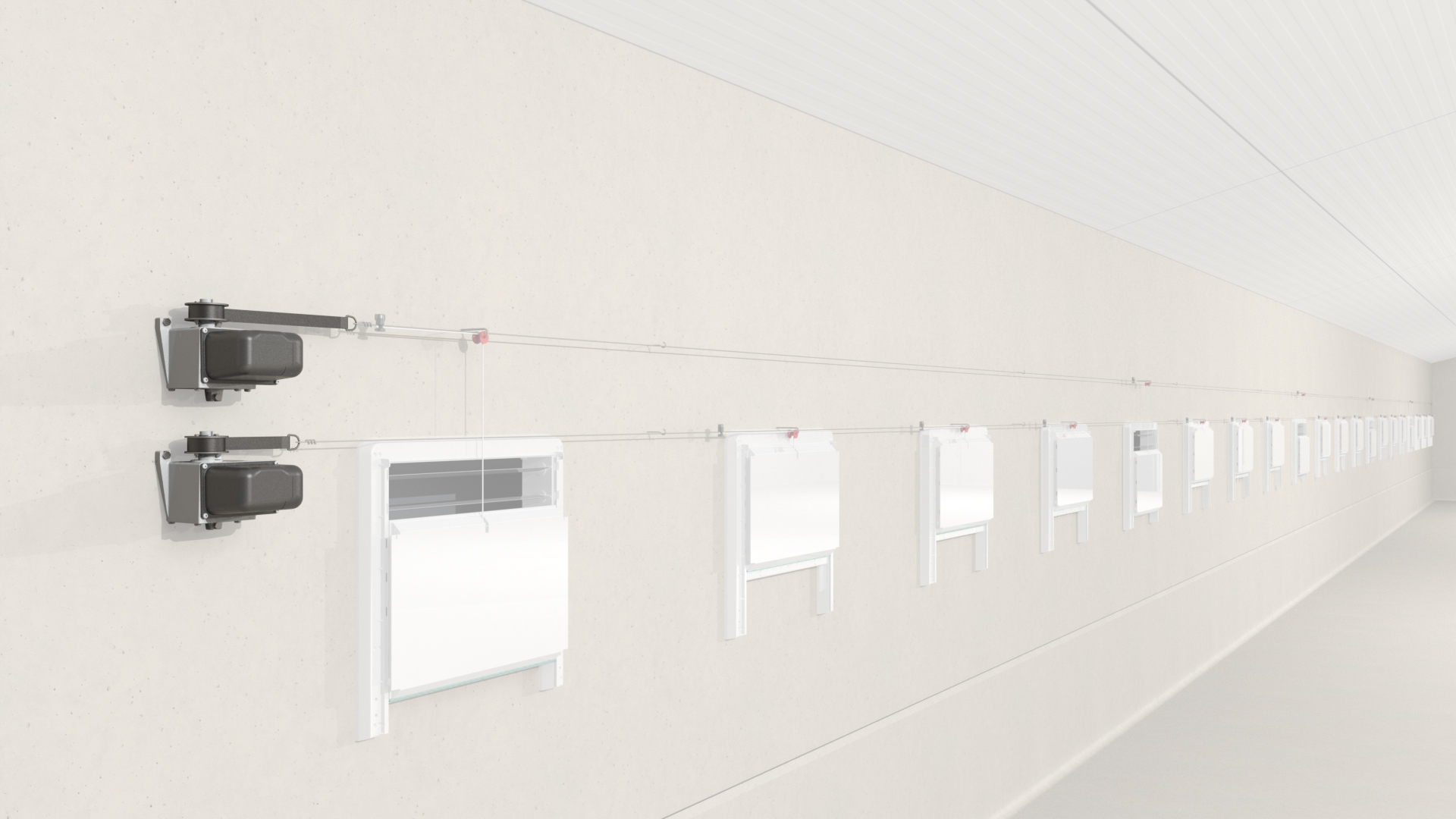

Single belt drum (LB1) on building front

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Inlet valves or flaps are commonly used for ventilation in livestock buildings. The inlet valves are opened or closed gradually by winding or unwinding a belt on a drum, ensuring optimal ventilation in case of negative pressure or excess heat.

  • For the best climate and animal welfare.
  • Extra precision with KL300 MultiWinch.
  • Low-maintenance and low-noise drive.
  • Cost-effective belt drum solution.

KL300 MultiWinch

ArticleDescriptionT [Nm]n [rpm]P [VA]I [A]s [rev]m [kg]
P.KL300.1.024.08.LKL300 0.8 24VDC for winch drum / sprocket900,8 (0,4)72 (48)3,0 (2,0)0,25 - 1006,2
Article number
P.KL300.1.024.08.L
Description
KL300 0.8 24VDC for winch drum / sprocket
T [Nm]
90
n [rpm]
0,8 (0,4)
P [VA]
72 (48)
I [A]
3,0 (2,0)
s [rev]
0,25 - 100
m [kg]
6,2

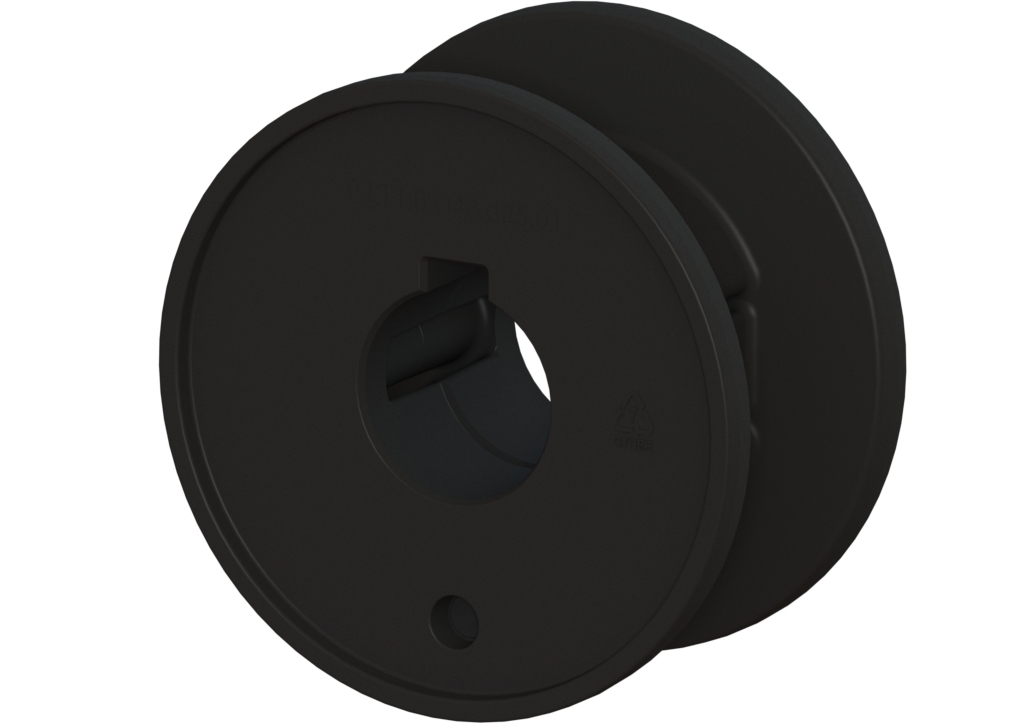

Belt drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.B.D48.D25.01Belt winch drum D48 d25 B25 KL30042254825780,1
Article number
P.LT1.B.D48.D25.01
Description
Belt winch drum D48 d25 B25 KL300
L [mm]
42
B [mm]
25
D1 [mm]
48
D2 [mm]
25
D3 [mm]
78
m [kg]
0,1

Winch belt KL300

ArticleDescriptionL [mm]B [mm]D [mm]m [kg]
P.LBD.25.1000KBelt W25mm L1000mm with cable connect (0,4t)1000251,10
P.LBD.25.2000KBelt W25mm L2000mm with cable connect (0,4t)2000251,10
Article number
P.LBD.25.1000K
Description
Belt W25mm L1000mm with cable connect (0,4t)
L [mm]
1000
B [mm]
25
D [mm]
1,1
m [kg]
0
Article number
P.LBD.25.2000K
Description
Belt W25mm L2000mm with cable connect (0,4t)
L [mm]
2000
B [mm]
25
D [mm]
1,1
m [kg]
0

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW10.3.024.13.LGW10 1.3 24VDC for winch drum1001,322983,50,106,5-21
P.GW10.3.230.13.LGW10 1.3 1ph 230V for winch drum100 / -1,3 / -1911240,09 / -1,1 / --21
P.GW10.3.400.13.LGW10 1.3 3ph 400V for winch drum100 / 801,3 / 1,61911240,09 / 0,110,5 / 0,50,9 / 0,921
P.GW10.3.400.13.LGW10 1.3 3ph 400V for winch drum100 / 801,3 / 1,61911240,09 / 0,110,5 / 0,50,9 / 0,921
P.GW30.024.13.LGW30.1.3 24VDC for winch drum (IEC63)3001,3312,51070,199,4-25
P.GW30.2.230.13.LGW30 1.3 1ph 230V for winch drum300 / -1,3 / -2201450,12 / -1,3 / --24
P.GW30.400.13.LGW30 1.3 3ph 400V for winch drum300 / 2401,3 / 1,61911450,18 / 0,220,7 / 0,71,2 / 1,225
P.GW30.400.13.LGW30 1.3 3ph 400V for winch drum300 / 2401,3 / 1,61911450,18 / 0,220,7 / 0,71,2 / 1,225
Article number
P.GW10.3.024.13.L
Description
GW10 1.3 24VDC for winch drum
T (50/60Hz) [Nm]
100
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
83,5
P (50/60Hz) [kW]
0,10
I (@ Y) (50/60Hz) [A]
6,5
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.230.13.L
Description
GW10 1.3 1ph 230V for winch drum
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
1,1 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.400.13.L
Description
GW10 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
21
Article number
P.GW10.3.400.13.L
Description
GW10 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
21
Article number
P.GW30.024.13.L
Description
GW30.1.3 24VDC for winch drum (IEC63)
T (50/60Hz) [Nm]
300
n (50/60Hz) [rpm]
1,3
L [mm]
312,5
D [mm]
107
P (50/60Hz) [kW]
0,19
I (@ Y) (50/60Hz) [A]
9,4
I (@ Δ) (50/60Hz) [A]
-
m [kg]
25
Article number
P.GW30.2.230.13.L
Description
GW30 1.3 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
24
Article number
P.GW30.400.13.L
Description
GW30 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
145
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
25
Article number
P.GW30.400.13.L
Description
GW30 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
145
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
25

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

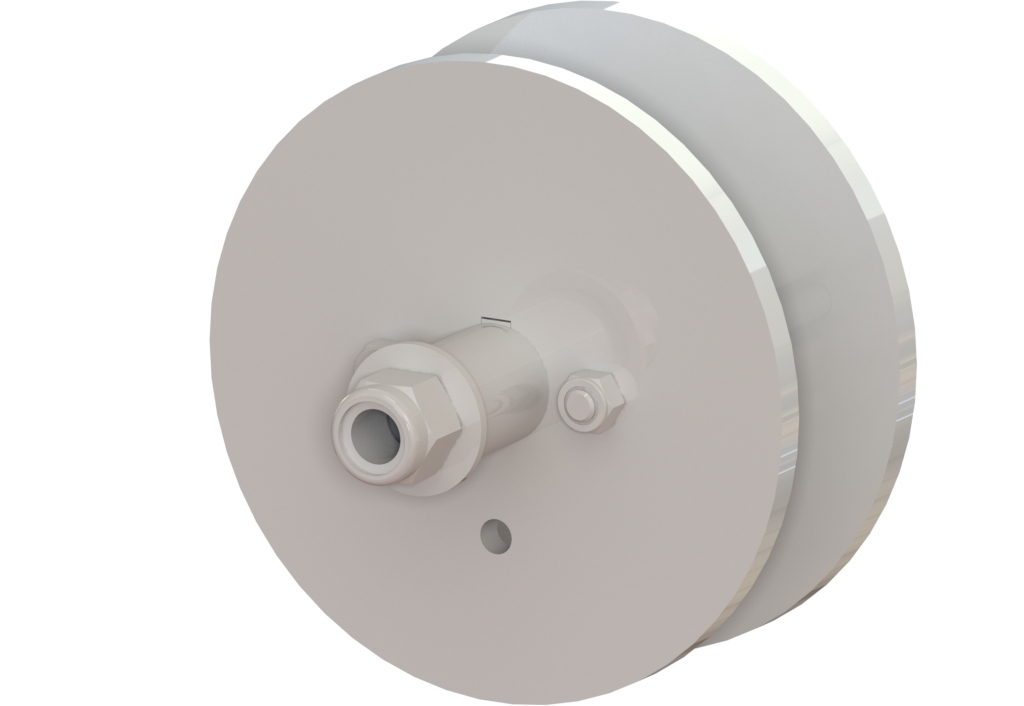

Belt drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.B.GW10Belt winch drum GW10 D50 B36903650181181,6
P.LT1.B.GW.D55Belt winch drum GW20/30/40 D55 B36903655281201,6
Article number
P.LT1.B.GW10
Description
Belt winch drum GW10 D50 B36
L [mm]
90
B [mm]
36
D1 [mm]
50
D2 [mm]
18
D3 [mm]
118
m [kg]
1,6
Article number
P.LT1.B.GW.D55
Description
Belt winch drum GW20/30/40 D55 B36
L [mm]
90
B [mm]
36
D1 [mm]
55
D2 [mm]
28
D3 [mm]
120
m [kg]
1,6

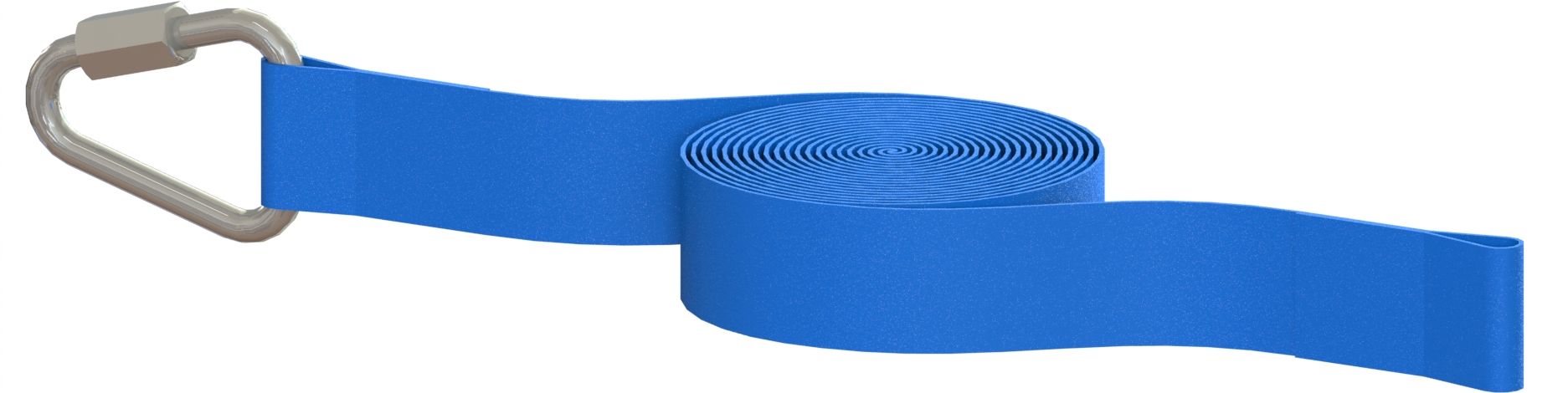

Winch belt GW

ArticleDescriptionL [mm]B [mm]D [mm]m [kg]
P.LBD.35.1000KBelt W35mm L1000mm with cable connect (1t)1000351,10
P.LBD.35.2000KBelt W35mm L2000mm with cable connect (1t)2000351,10
Article number
P.LBD.35.1000K
Description
Belt W35mm L1000mm with cable connect (1t)
L [mm]
1000
B [mm]
35
D [mm]
1,1
m [kg]
0
Article number
P.LBD.35.2000K
Description
Belt W35mm L2000mm with cable connect (1t)
L [mm]
2000
B [mm]
35
D [mm]
1,1
m [kg]
0

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [rpm]max. stroke [mm]m [kg]
P.PM.TWS.1,64.GW10Gear set 79.23.48.30 for GW101,642000,11
P.PM.TWS.1,64Gear set 79.23.48.301,642000,11
P.PM.TWS.2,03.GW10Gear set 75.27.48.30 for GW102,033000,11
P.PM.TWS.2,03Gear set 75.27.48.302,033000,11
P.PM.TWS.2,57.GW10Gear set 70.32.48.30 for GW102,574000,10
P.PM.TWS.2,57Gear set 70.32.48.302,574000,10
P.PM.TWS.3,19.GW10Gear set 30.17.48.30 for GW103,195000,10
P.PM.TWS.3,19Gear set 30.17.48.303,195000,10
P.PM.TWS.4,50.GW10Gear set 30.24.48.30 for GW104,507000,10
P.PM.TWS.4,50Gear set 30.24.48.304,507000,10
P.PM.TWS.7,20Gear set 68.34.30.487,2011000,13
P.PM.TWS.9,60Gear set 30.20.30.489,6015000,10
Article number
P.PM.TWS.1,64.GW10
Description
Gear set 79.23.48.30 for GW10
i [rpm]
1,64
max. stroke [mm]
200
m [kg]
0,11
Article number
P.PM.TWS.1,64
Description
Gear set 79.23.48.30
i [rpm]
1,64
max. stroke [mm]
200
m [kg]
0,11
Article number
P.PM.TWS.2,03.GW10
Description
Gear set 75.27.48.30 for GW10
i [rpm]
2,03
max. stroke [mm]
300
m [kg]
0,11
Article number
P.PM.TWS.2,03
Description
Gear set 75.27.48.30
i [rpm]
2,03
max. stroke [mm]
300
m [kg]
0,11
Article number
P.PM.TWS.2,57.GW10
Description
Gear set 70.32.48.30 for GW10
i [rpm]
2,57
max. stroke [mm]
400
m [kg]
0,10
Article number
P.PM.TWS.2,57
Description
Gear set 70.32.48.30
i [rpm]
2,57
max. stroke [mm]
400
m [kg]
0,10
Article number
P.PM.TWS.3,19.GW10
Description
Gear set 30.17.48.30 for GW10
i [rpm]
3,19
max. stroke [mm]
500
m [kg]
0,10
Article number
P.PM.TWS.3,19
Description
Gear set 30.17.48.30
i [rpm]
3,19
max. stroke [mm]
500
m [kg]
0,10
Article number
P.PM.TWS.4,50.GW10
Description
Gear set 30.24.48.30 for GW10
i [rpm]
4,50
max. stroke [mm]
700
m [kg]
0,10
Article number
P.PM.TWS.4,50
Description
Gear set 30.24.48.30
i [rpm]
4,50
max. stroke [mm]
700
m [kg]
0,10
Article number
P.PM.TWS.7,20
Description
Gear set 68.34.30.48
i [rpm]
7,20
max. stroke [mm]
1100
m [kg]
0,13
Article number
P.PM.TWS.9,60
Description
Gear set 30.20.30.48
i [rpm]
9,60
max. stroke [mm]
1500
m [kg]
0,10

Drive systems for ventilation

A healthy building environment determines the livestock' productivity, growth, food consumption, stress levels and infection risks. Fresh air is vital important, where it enters in an optimal direction, at the right height and speed. For this we offer the highly innovative KL300 MultiWinch, which is specifically designed for this form of ventilation. The well-known GW series combined with winch drums or TGA rack and pinion is the solution for opening and closing tunnel doors.

Air inlet valves (steel cable)
Air inlet valves (steel cable)
Air inlet valves (gear rack)
Air inlet valves (gear rack)
Air inlet valves (drive tube)
Air inlet valves (drive tube)
Air inlet valves (belt)
Air inlet valves (belt)
Tunnel doors | Pad cooling
Tunnel doors | Pad cooling
●
●
HomeDrive SystemsDrive systems for poultry buildingsDrive systems for ventilationAir inlet valves (belt)

Double belt drum (LB2) in middle of building

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Inlet valves or flaps are commonly used for ventilation in livestock buildings. The inlet valves are opened or closed gradually by winding or unwinding a belt on a drum, ensuring optimal ventilation in case of negative pressure or excess heat.

  • For the best climate and animal welfare.
  • Extra precision with KL300 MultiWinch.
  • Optimum force distribution with mounting in the middle of the livestock building
  • Low-maintenance and low-noise drive
  • Cost-effective belt drum solution.

KL300 MultiWinch

ArticleDescriptionT [Nm]n [rpm]P [VA]I [A]s [rev]m [kg]
P.KL300.1.024.08.LKL300 0.8 24VDC for winch drum / sprocket900,8 (0,4)72 (48)3,0 (2,0)0,25 - 1006,2
Article number
P.KL300.1.024.08.L
Description
KL300 0.8 24VDC for winch drum / sprocket
T [Nm]
90
n [rpm]
0,8 (0,4)
P [VA]
72 (48)
I [A]
3,0 (2,0)
s [rev]
0,25 - 100
m [kg]
6,2

Belt drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.B.D48.D25.01Belt winch drum D48 d25 B25 KL30042254825780,1
Article number
P.LT1.B.D48.D25.01
Description
Belt winch drum D48 d25 B25 KL300
L [mm]
42
B [mm]
25
D1 [mm]
48
D2 [mm]
25
D3 [mm]
78
m [kg]
0,1

Winch belt KL300

ArticleDescriptionL [mm]B [mm]D [mm]m [kg]
P.LBD.25.1000KBelt W25mm L1000mm with cable connect (0,4t)1000251,10
P.LBD.25.2000KBelt W25mm L2000mm with cable connect (0,4t)2000251,10
Article number
P.LBD.25.1000K
Description
Belt W25mm L1000mm with cable connect (0,4t)
L [mm]
1000
B [mm]
25
D [mm]
1,1
m [kg]
0
Article number
P.LBD.25.2000K
Description
Belt W25mm L2000mm with cable connect (0,4t)
L [mm]
2000
B [mm]
25
D [mm]
1,1
m [kg]
0

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW10.3.024.13.LGW10 1.3 24VDC for winch drum1001,322983,50,106,5-21
P.GW10.3.230.13.LGW10 1.3 1ph 230V for winch drum100 / -1,3 / -1911240,09 / -1,1 / --21
P.GW10.3.400.13.LGW10 1.3 3ph 400V for winch drum100 / 801,3 / 1,61911240,09 / 0,110,5 / 0,50,9 / 0,921
P.GW10.3.400.13.LGW10 1.3 3ph 400V for winch drum100 / 801,3 / 1,61911240,09 / 0,110,5 / 0,50,9 / 0,921
P.GW30.024.13.LGW30.1.3 24VDC for winch drum (IEC63)3001,3312,51070,199,4-25
P.GW30.2.230.13.LGW30 1.3 1ph 230V for winch drum300 / -1,3 / -2201450,12 / -1,3 / --24
P.GW30.400.13.LGW30 1.3 3ph 400V for winch drum300 / 2401,3 / 1,61911450,18 / 0,220,7 / 0,71,2 / 1,225
P.GW30.400.13.LGW30 1.3 3ph 400V for winch drum300 / 2401,3 / 1,61911450,18 / 0,220,7 / 0,71,2 / 1,225
Article number
P.GW10.3.024.13.L
Description
GW10 1.3 24VDC for winch drum
T (50/60Hz) [Nm]
100
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
83,5
P (50/60Hz) [kW]
0,10
I (@ Y) (50/60Hz) [A]
6,5
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.230.13.L
Description
GW10 1.3 1ph 230V for winch drum
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
1,1 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.400.13.L
Description
GW10 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
21
Article number
P.GW10.3.400.13.L
Description
GW10 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
21
Article number
P.GW30.024.13.L
Description
GW30.1.3 24VDC for winch drum (IEC63)
T (50/60Hz) [Nm]
300
n (50/60Hz) [rpm]
1,3
L [mm]
312,5
D [mm]
107
P (50/60Hz) [kW]
0,19
I (@ Y) (50/60Hz) [A]
9,4
I (@ Δ) (50/60Hz) [A]
-
m [kg]
25
Article number
P.GW30.2.230.13.L
Description
GW30 1.3 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
24
Article number
P.GW30.400.13.L
Description
GW30 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
145
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
25
Article number
P.GW30.400.13.L
Description
GW30 1.3 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
145
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
25

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

Belt drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.B.GW10Belt winch drum GW10 D50 B36903650181181,6
P.LT1.B.GW.D55Belt winch drum GW20/30/40 D55 B36903655281201,6
Article number
P.LT1.B.GW10
Description
Belt winch drum GW10 D50 B36
L [mm]
90
B [mm]
36
D1 [mm]
50
D2 [mm]
18
D3 [mm]
118
m [kg]
1,6
Article number
P.LT1.B.GW.D55
Description
Belt winch drum GW20/30/40 D55 B36
L [mm]
90
B [mm]
36
D1 [mm]
55
D2 [mm]
28
D3 [mm]
120
m [kg]
1,6

Winch belt GW

ArticleDescriptionL [mm]B [mm]D [mm]m [kg]
P.LBD.35.1000KBelt W35mm L1000mm with cable connect (1t)1000351,10
P.LBD.35.2000KBelt W35mm L2000mm with cable connect (1t)2000351,10
Article number
P.LBD.35.1000K
Description
Belt W35mm L1000mm with cable connect (1t)
L [mm]
1000
B [mm]
35
D [mm]
1,1
m [kg]
0
Article number
P.LBD.35.2000K
Description
Belt W35mm L2000mm with cable connect (1t)
L [mm]
2000
B [mm]
35
D [mm]
1,1
m [kg]
0

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [rpm]max. stroke [mm]m [kg]
P.PM.TWS.1,64.GW10Gear set 79.23.48.30 for GW101,642000,11
P.PM.TWS.1,64Gear set 79.23.48.301,642000,11
P.PM.TWS.2,03.GW10Gear set 75.27.48.30 for GW102,033000,11
P.PM.TWS.2,03Gear set 75.27.48.302,033000,11
P.PM.TWS.2,57.GW10Gear set 70.32.48.30 for GW102,574000,10
P.PM.TWS.2,57Gear set 70.32.48.302,574000,10
P.PM.TWS.3,19.GW10Gear set 30.17.48.30 for GW103,195000,10
P.PM.TWS.3,19Gear set 30.17.48.303,195000,10
P.PM.TWS.4,50.GW10Gear set 30.24.48.30 for GW104,507000,10
P.PM.TWS.4,50Gear set 30.24.48.304,507000,10
P.PM.TWS.7,20Gear set 68.34.30.487,2011000,13
P.PM.TWS.9,60Gear set 30.20.30.489,6015000,10
Article number
P.PM.TWS.1,64.GW10
Description
Gear set 79.23.48.30 for GW10
i [rpm]
1,64
max. stroke [mm]
200
m [kg]
0,11
Article number
P.PM.TWS.1,64
Description
Gear set 79.23.48.30
i [rpm]
1,64
max. stroke [mm]
200
m [kg]
0,11
Article number
P.PM.TWS.2,03.GW10
Description
Gear set 75.27.48.30 for GW10
i [rpm]
2,03
max. stroke [mm]
300
m [kg]
0,11
Article number
P.PM.TWS.2,03
Description
Gear set 75.27.48.30
i [rpm]
2,03
max. stroke [mm]
300
m [kg]
0,11
Article number
P.PM.TWS.2,57.GW10
Description
Gear set 70.32.48.30 for GW10
i [rpm]
2,57
max. stroke [mm]
400
m [kg]
0,10
Article number
P.PM.TWS.2,57
Description
Gear set 70.32.48.30
i [rpm]
2,57
max. stroke [mm]
400
m [kg]
0,10
Article number
P.PM.TWS.3,19.GW10
Description
Gear set 30.17.48.30 for GW10
i [rpm]
3,19
max. stroke [mm]
500
m [kg]
0,10
Article number
P.PM.TWS.3,19
Description
Gear set 30.17.48.30
i [rpm]
3,19
max. stroke [mm]
500
m [kg]
0,10
Article number
P.PM.TWS.4,50.GW10
Description
Gear set 30.24.48.30 for GW10
i [rpm]
4,50
max. stroke [mm]
700
m [kg]
0,10
Article number
P.PM.TWS.4,50
Description
Gear set 30.24.48.30
i [rpm]
4,50
max. stroke [mm]
700
m [kg]
0,10
Article number
P.PM.TWS.7,20
Description
Gear set 68.34.30.48
i [rpm]
7,20
max. stroke [mm]
1100
m [kg]
0,13
Article number
P.PM.TWS.9,60
Description
Gear set 30.20.30.48
i [rpm]
9,60
max. stroke [mm]
1500
m [kg]
0,10

Drive systems for ventilation

A healthy building environment determines the livestock' productivity, growth, food consumption, stress levels and infection risks. Fresh air is vital important, where it enters in an optimal direction, at the right height and speed. For this we offer the highly innovative KL300 MultiWinch, which is specifically designed for this form of ventilation. The well-known GW series combined with winch drums or TGA rack and pinion is the solution for opening and closing tunnel doors.

Air inlet valves (steel cable)
Air inlet valves (steel cable)
Air inlet valves (gear rack)
Air inlet valves (gear rack)
Air inlet valves (drive tube)
Air inlet valves (drive tube)
Air inlet valves (belt)
Air inlet valves (belt)
Tunnel doors | Pad cooling
Tunnel doors | Pad cooling

De Gier Drive Systems
+ 31 174 29 20 89

Markets
HorticultureIntensive LivestockCrop StorageNon-residential buildings
Drivesystems
Glass greenhousesPoly greenhousesWide-span greenhousesNon-residential buildingsPoultryPig buildingsCow buildingsCrop storage
Products
CatalogueBrochuresDocuments
More
NewsEventsSupportJobsAbout us
Contact
De Gier Drive Systems

Westlandseweg 9
2291 PG Wateringen
Netherlands
+31 174 29 20 89
sales@degierdrivesystems.com

We use cookies just to track visits to our website, we store no personal details. We also us commercial cookies, accept them for a better user experience. Please refer to our Privacy Policy.
