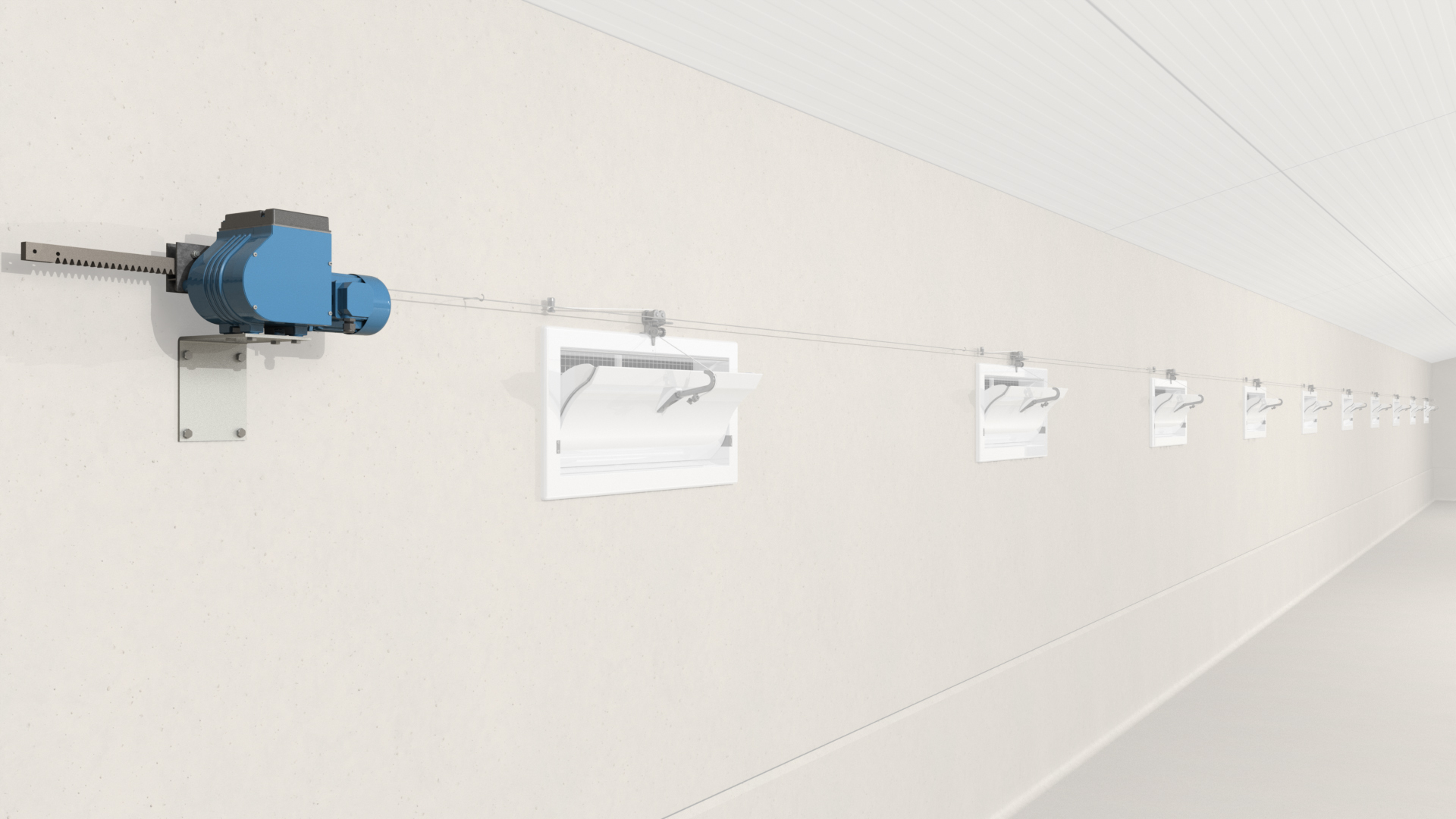

Single TGA at front of building
Double TGA in middle of building

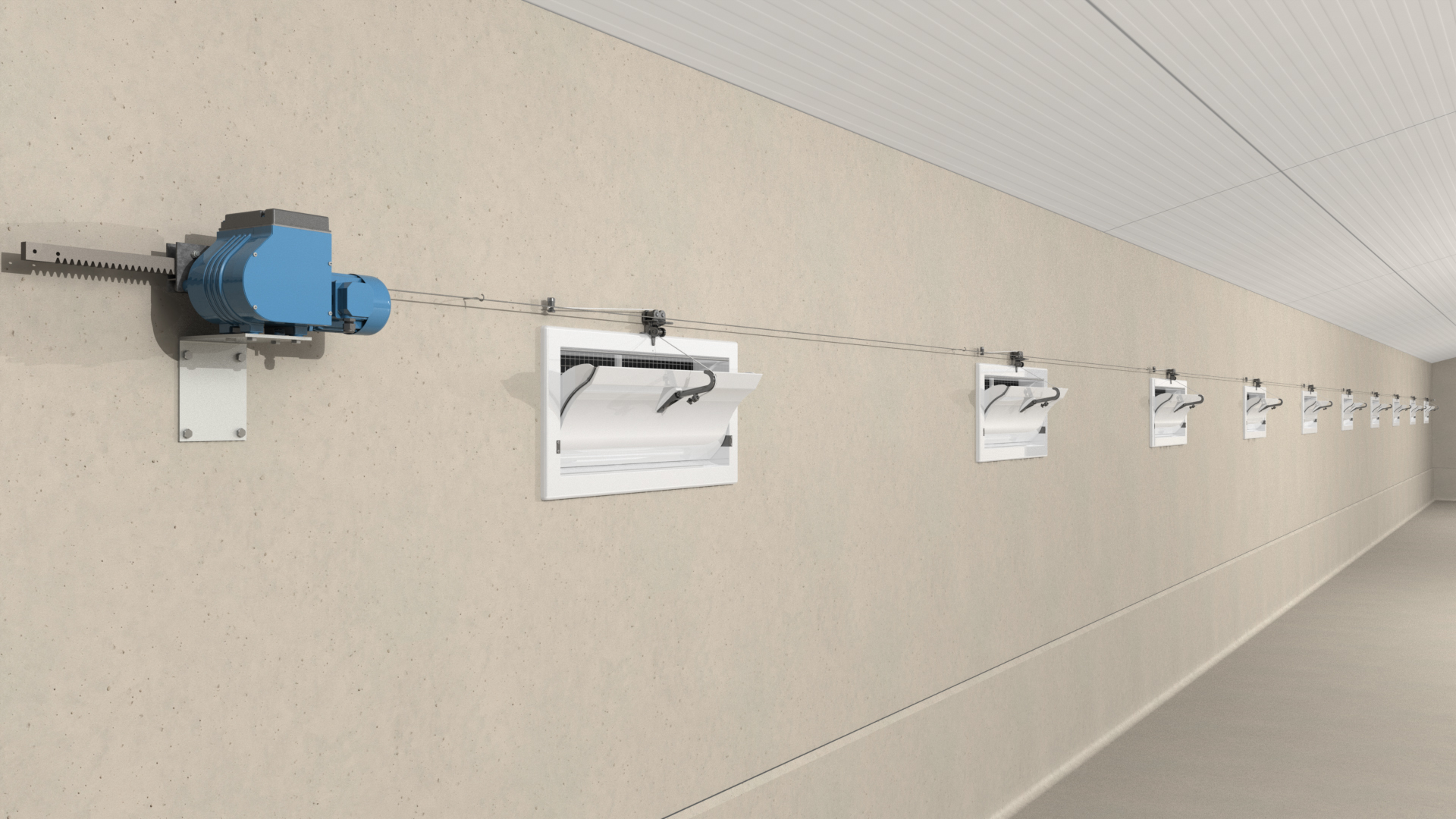

Single TGA at front of building
We are happy to help you with making a calculation
Get in contact with usInlet valves or flaps are commonly used for ventilation in livestock buildings. Through the spring mechanism of the inlet valves together with the rack drive. By converting rotary motion into linear motion of the rack, the inlet valves are opened or closed gradually to provide the best climate and well-being for the livestock.
- For the best climate and animal welfare.
- Specially developed drive with direct rack system.
- Mounts at the head of the livestock building.
- Low-maintenance and low-noise drive.
- Accurate linear motion for opening and closing.

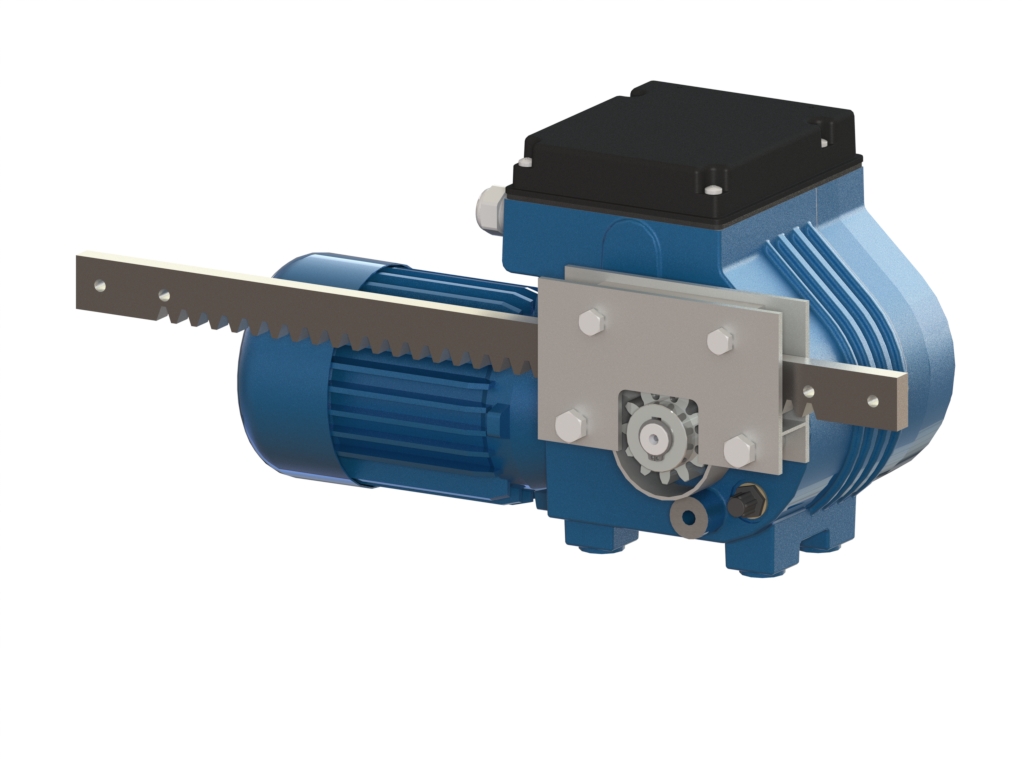

GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.024.13.T | GW10 1.3 24VDC for TGA-set | 100 | 1,3 | 229 | 84 | 0,10 | 6,5 | - | 23 |
 2 P.GW10.3.024.13.T 11 GW10 1.3 24VDC for TGA-set 12 13 P.GW10.400.26.T10.0.jpg 14 15 CAT_P.GW10.400.26.T10.0_2D.gif 17 16 10 | |||||||||
| P.GW10.3.230.13.T | GW10 1.3 1ph 230V for TGA-set | 100 / - | 1,3 / - | 191 | 124 | 0,09 / - | 1,1 / - | - | 23 |
2 P.GW10.3.230.13.T 11 GW10 1.3 1ph 230V for TGA-set 12 13 P.GW10.400.26.T10.0.jpg 14 15 CAT_P.GW10.400.26.T10.0_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.13.T | GW10 1.3 3ph 400V for TGA-set | 100 / 80 | 1,3 / 1,6 | 191 | 124 | 0,09 / 0,11 | 0,5 / 0,5 | 0,9 / 0,9 | 23 |
2 P.GW10.3.400.13.T 11 GW10 1.3 3ph 400V for TGA-set 12 13 P.GW10.400.26.T10.0.jpg 14 15 CAT_P.GW10.400.26.T10.0_2D.gif 17 16 10 | |||||||||
| P.GW20.024.13.T | GW20 1.3 24VDC for TGA-set (IEC63) | 200 | 1,3 | 229 | 84 | 0,19 | 9,4 | - | 23 |
 2 P.GW20.024.13.T 11 GW20 1.3 24VDC for TGA-set (IEC63) 12 13 P.GW20.400.26.T20.0.jpg 14 15 CAT_P.GW20.400.26.T20.0_2D.gif 17 16 10 | |||||||||
| P.GW20.400.13.T | GW20 1.3 3ph 400V for TGA-set | 200 / 160 | 1,3 / 1,6 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 23 |
2 P.GW20.400.13.T 11 GW20 1.3 3ph 400V for TGA-set 12 13 P.GW20.400.26.T20.0.jpg 14 15 CAT_P.GW20.400.26.T20.0_2D.gif 17 16 10 |
Article number
Description
GW10 1.3 24VDC for TGA-set
T (50/60Hz) [Nm]
100
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
84
P (50/60Hz) [kW]
0,10
I (@ Y) (50/60Hz) [A]
6,5
I (@ Δ) (50/60Hz) [A]
-
m [kg]
23
Article number
Description
GW10 1.3 1ph 230V for TGA-set
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
1,1 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
23
Article number
Description
GW10 1.3 3ph 400V for TGA-set
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
23
Article number
Description
GW20 1.3 24VDC for TGA-set (IEC63)
T (50/60Hz) [Nm]
200
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
84
P (50/60Hz) [kW]
0,19
I (@ Y) (50/60Hz) [A]
9,4
I (@ Δ) (50/60Hz) [A]
-
m [kg]
23
Article number
Description
GW20 1.3 3ph 400V for TGA-set
T (50/60Hz) [Nm]
200 / 160
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
23
TGA set
| Article | Description | S [mm] | L [mm] | B [mm] | F [N] | s [mm/rev] | m [kg] |
| P.T10.1 | TGA-10 set stroke 500mm | 500 | 700 | 12 | 1250 | 15,38 | 3,1 |
| P.T10.2 | TGA-10 set stroke 750mm | 750 | 950 | 12 | 1250 | 15,38 | 3,7 |
| P.T10.3 | TGA-10 set stroke 1000mm | 1000 | 1200 | 12 | 1250 | 15,38 | 4,3 |
| P.T10.4 | TGA-10 set stroke 1250mm | 1250 | 1450 | 12 | 1250 | 15,38 | 4,9 |
| P.T20.1 | TGA-20 set stroke 500mm | 500 | 700 | 15 | 3200 | 15,38 | 3,4 |
| P.T20.2 | TGA-20 set stroke 750mm | 750 | 950 | 15 | 3200 | 15,38 | 4,2 |
| P.T20.3 | TGA-20 set stroke 1000mm | 1000 | 1200 | 15 | 3200 | 15,38 | 4,9 |
| P.T20.4 | TGA-20 set stroke 1200mm | 1250 | 1450 | 15 | 3200 | 15,38 | 5,7 |
Article number
Description
TGA-10 set stroke 500mm
S [mm]
500
L [mm]
700
B [mm]
12
F [N]
1250
s [mm/rev]
15,38
m [kg]
3,1
Article number
Description
TGA-10 set stroke 750mm
S [mm]
750
L [mm]
950
B [mm]
12
F [N]
1250
s [mm/rev]
15,38
m [kg]
3,7
Article number
Description
TGA-10 set stroke 1000mm
S [mm]
1000
L [mm]
1200
B [mm]
12
F [N]
1250
s [mm/rev]
15,38
m [kg]
4,3
Article number
Description
TGA-10 set stroke 1250mm
S [mm]
1250
L [mm]
1450
B [mm]
12
F [N]
1250
s [mm/rev]
15,38
m [kg]
4,9
Article number
Description
TGA-20 set stroke 500mm
S [mm]
500
L [mm]
700
B [mm]
15
F [N]
3200
s [mm/rev]
15,38
m [kg]
3,4
Article number
Description
TGA-20 set stroke 750mm
S [mm]
750
L [mm]
950
B [mm]
15
F [N]
3200
s [mm/rev]
15,38
m [kg]
4,2
Article number
Description
TGA-20 set stroke 1000mm
S [mm]
1000
L [mm]
1200
B [mm]
15
F [N]
3200
s [mm/rev]
15,38
m [kg]
4,9
Article number
Description
TGA-20 set stroke 1200mm
S [mm]
1250
L [mm]
1450
B [mm]
15
F [N]
3200
s [mm/rev]
15,38
m [kg]
5,7

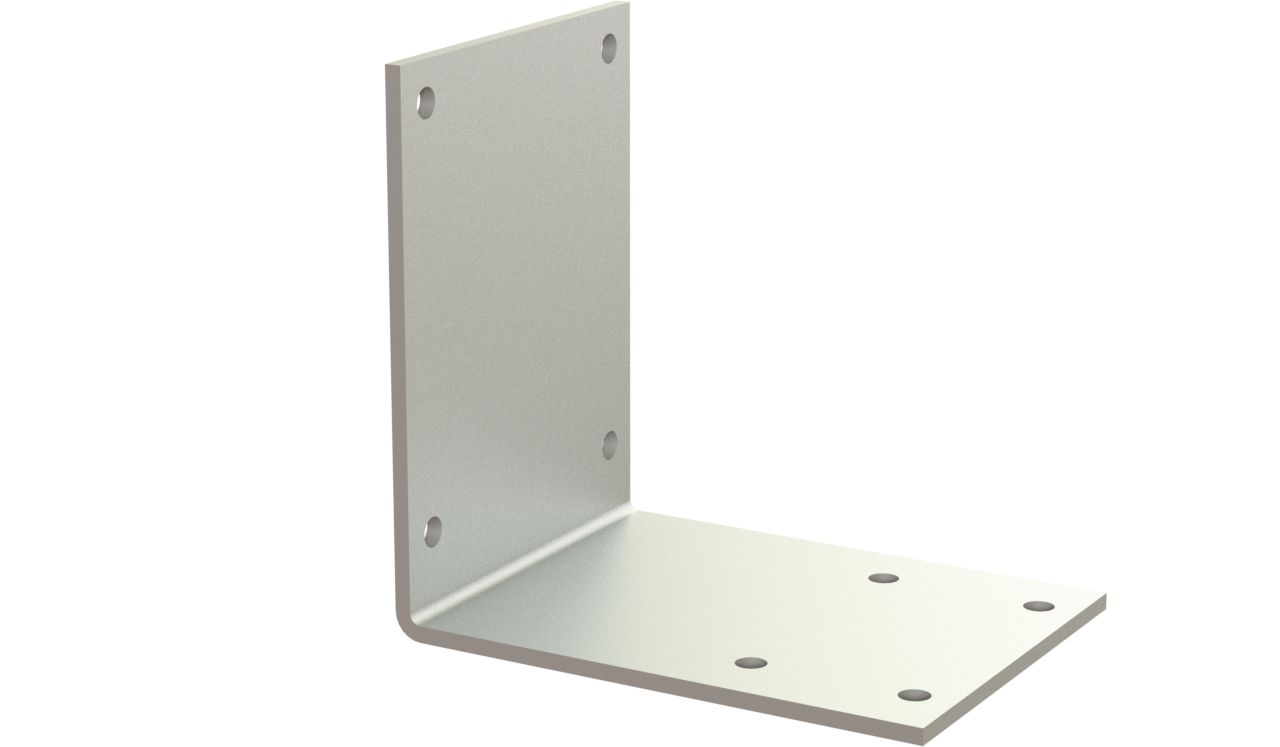

Mounting plate
| Article | Description | B [mm] | C [mm] | m [kg] |
| P.MP.GW.H.A125.M | Angled wall mounting plate GW-TGA | 65 | 131 | 2,7 |
Article number
Description
Angled wall mounting plate GW-TGA
B [mm]
65
C [mm]
131
m [kg]
2,7
Encoder I-DE
| Article | Description | n [rpm] | m [kg] |
| P.IDE.024.01 | I-DE 24V AC/DC digital/analogue Enc. built-in | 1,2 - 8,0 | 0,06 |
Article number
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06
Potentiometer
| Article | Description | Ohm [ohm] | m [kg] |
| P.PM.500 | Potentiometer 500 ohm built-in | 500 | 0,037 |
| P.PM.1000 | Potentiometer 1000 ohm built-in | 1000 | 0,037 |
| P.PM.5000 | Potentiometer 5000 ohm built-in | 5000 | 0,037 |
| P.PM.10000 | Potentiometer 10 000 ohm built-in | 10000 | 0,037 |
Potentiometer gear set
| Article | Description | i [rpm] | m [kg] |
| P.PM.TWS.3,38.GW10 | Gear set 30.18.48.30 for GW10 | 3,38 | 0,10 |
| P.PM.TWS.3,38 | Gear set 30.18.48.30 | 3,38 | 0,10 |
| P.PM.TWS.5,06.GW10 | Gear set 30.27.48.30 for GW10 | 5,06 | 0,10 |
| P.PM.TWS.5,06 | Gear set 30.27.48.30 | 5,06 | 0,10 |
| P.PM.TWS.7,20 | Gear set 68.34.30.48 | 7,20 | 0,13 |
| P.PM.TWS.8,64 | Gear set 30.18.30.48 | 8,64 | 0,10 |
Drive systems for ventilation
A healthy building environment determines the livestock' productivity, growth, food consumption, stress levels and infection risks. Fresh air is vital important, where it enters in an optimal direction, at the right height and speed. For this we offer the highly innovative KL300 MultiWinch, which is specifically designed for this form of ventilation. The well-known GW series combined with winch drums or TGA rack and pinion is the solution for opening and closing tunnel doors.

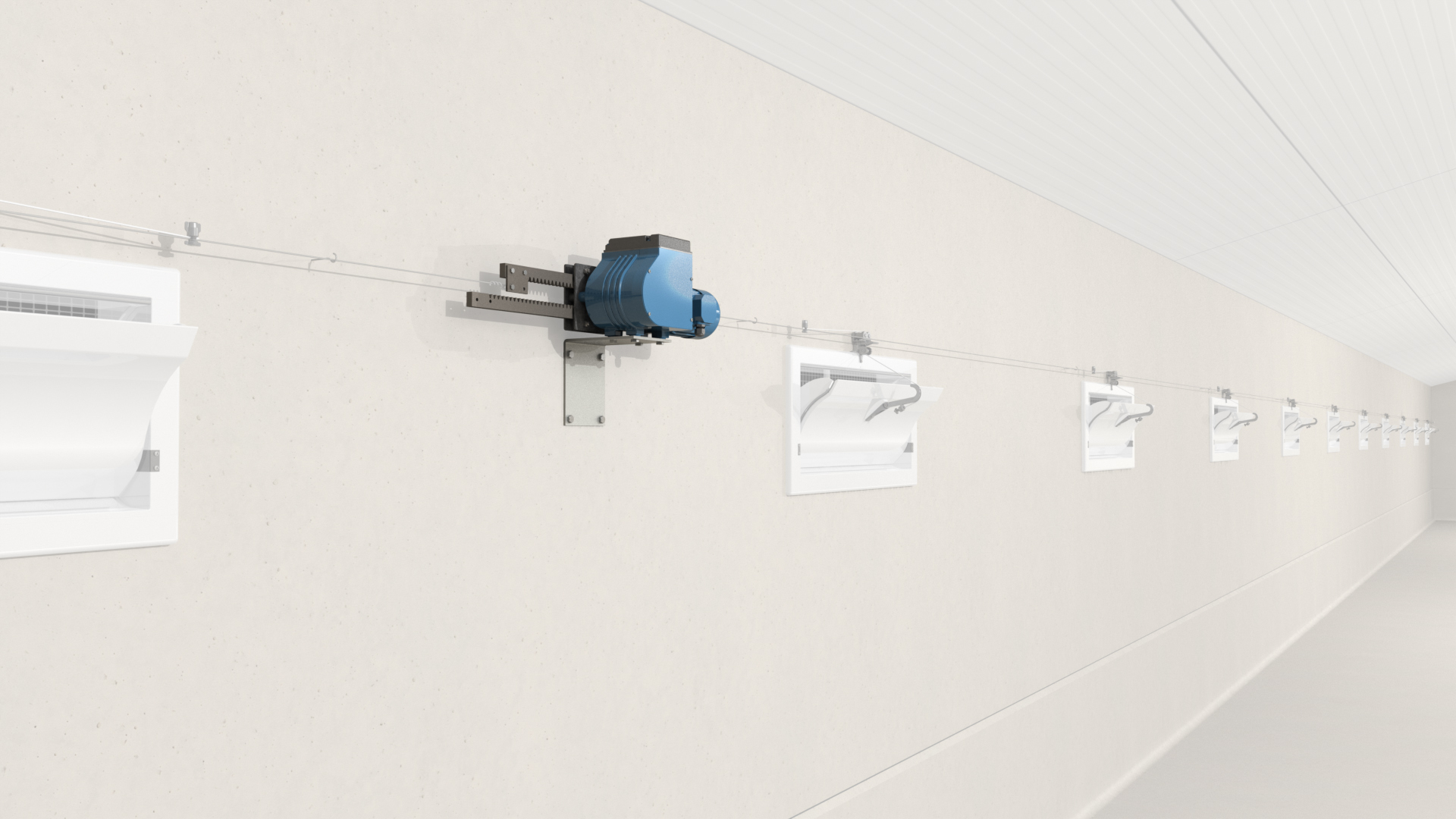

Double TGA in middle of building
We are happy to help you with making a calculation
Get in contact with usInlet valves or flaps are commonly used for ventilation in livestock buildings. Through the spring mechanism of the inlet valves together with the rack drive. By converting rotary motion into linear motion of the rack, the inlet valves are opened or closed gradually to provide the best climate and well-being for the livestock.
- For the best climate and animal welfare.
- Specially developed drive with direct rack system.
- Mounting in the middle of the livestock building.
- Optimum force distribution with mounting in the middle of the livestock building.
- Low-maintenance and low-noise drive.
- Accurate linear motion for opening and closing.
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.024.13.T | GW10 1.3 24VDC for TGA-set | 100 | 1,3 | 229 | 84 | 0,10 | 6,5 | - | 23 |
2 P.GW10.3.024.13.T 11 GW10 1.3 24VDC for TGA-set 12 13 P.GW10.400.26.T10.0.jpg 14 15 CAT_P.GW10.400.26.T10.0_2D.gif 17 16 10 | |||||||||
| P.GW10.3.230.13.T | GW10 1.3 1ph 230V for TGA-set | 100 / - | 1,3 / - | 191 | 124 | 0,09 / - | 1,1 / - | - | 23 |
2 P.GW10.3.230.13.T 11 GW10 1.3 1ph 230V for TGA-set 12 13 P.GW10.400.26.T10.0.jpg 14 15 CAT_P.GW10.400.26.T10.0_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.13.T | GW10 1.3 3ph 400V for TGA-set | 100 / 80 | 1,3 / 1,6 | 191 | 124 | 0,09 / 0,11 | 0,5 / 0,5 | 0,9 / 0,9 | 23 |
2 P.GW10.3.400.13.T 11 GW10 1.3 3ph 400V for TGA-set 12 13 P.GW10.400.26.T10.0.jpg 14 15 CAT_P.GW10.400.26.T10.0_2D.gif 17 16 10 | |||||||||
| P.GW20.024.13.T | GW20 1.3 24VDC for TGA-set (IEC63) | 200 | 1,3 | 229 | 84 | 0,19 | 9,4 | - | 23 |
2 P.GW20.024.13.T 11 GW20 1.3 24VDC for TGA-set (IEC63) 12 13 P.GW20.400.26.T20.0.jpg 14 15 CAT_P.GW20.400.26.T20.0_2D.gif 17 16 10 | |||||||||
| P.GW20.400.13.T | GW20 1.3 3ph 400V for TGA-set | 200 / 160 | 1,3 / 1,6 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 23 |
2 P.GW20.400.13.T 11 GW20 1.3 3ph 400V for TGA-set 12 13 P.GW20.400.26.T20.0.jpg 14 15 CAT_P.GW20.400.26.T20.0_2D.gif 17 16 10 |
Article number
Description
GW10 1.3 24VDC for TGA-set
T (50/60Hz) [Nm]
100
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
84
P (50/60Hz) [kW]
0,10
I (@ Y) (50/60Hz) [A]
6,5
I (@ Δ) (50/60Hz) [A]
-
m [kg]
23
Article number
Description
GW10 1.3 1ph 230V for TGA-set
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
1,1 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
23
Article number
Description
GW10 1.3 3ph 400V for TGA-set
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
23
Article number
Description
GW20 1.3 24VDC for TGA-set (IEC63)
T (50/60Hz) [Nm]
200
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
84
P (50/60Hz) [kW]
0,19
I (@ Y) (50/60Hz) [A]
9,4
I (@ Δ) (50/60Hz) [A]
-
m [kg]
23
Article number
Description
GW20 1.3 3ph 400V for TGA-set
T (50/60Hz) [Nm]
200 / 160
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
23

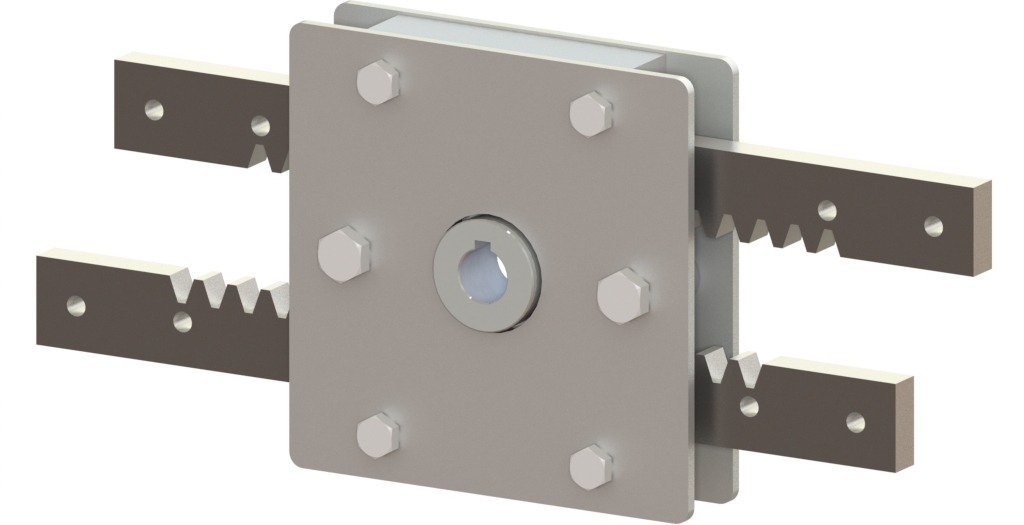

TGA set
| Article | Description | S [mm] | L [mm] | B [mm] | F [N] | s [mm/rev] | m [kg] |
| P.T10.D.1 | Double TGA-10 set stroke 500mm | 500 | 700 | 12 | 2 x 1250 | 15,38 | 5,4 |
| P.T10.D.2 | Double TGA-10 set stroke 750mm | 750 | 950 | 12 | 2 x 1250 | 15,38 | 6,6 |
| P.T10.D.3 | Double TGA-10 set stroke 1000mm | 1000 | 1200 | 12 | 2 x 1250 | 15,38 | 7,8 |
| P.T20.D.1 | Double TGA-20 set stroke 500mm | 500 | 700 | 15 | 2 x 3200 | 15,38 | 6,2 |
| P.T20.D.2 | Double TGA-20 set stroke 750mm | 750 | 950 | 15 | 2 x 3200 | 15,38 | 7,7 |
| P.T20.D.3 | Double TGA-20 set stroke 1000mm | 1000 | 1200 | 15 | 2 x 3200 | 15,38 | 9,2 |
Article number
Description
Double TGA-10 set stroke 500mm
S [mm]
500
L [mm]
700
B [mm]
12
F [N]
2 x 1250
s [mm/rev]
15,38
m [kg]
5,4
Article number
Description
Double TGA-10 set stroke 750mm
S [mm]
750
L [mm]
950
B [mm]
12
F [N]
2 x 1250
s [mm/rev]
15,38
m [kg]
6,6
Article number
Description
Double TGA-10 set stroke 1000mm
S [mm]
1000
L [mm]
1200
B [mm]
12
F [N]
2 x 1250
s [mm/rev]
15,38
m [kg]
7,8
Article number
Description
Double TGA-20 set stroke 500mm
S [mm]
500
L [mm]
700
B [mm]
15
F [N]
2 x 3200
s [mm/rev]
15,38
m [kg]
6,2
Article number
Description
Double TGA-20 set stroke 750mm
S [mm]
750
L [mm]
950
B [mm]
15
F [N]
2 x 3200
s [mm/rev]
15,38
m [kg]
7,7
Article number
Description
Double TGA-20 set stroke 1000mm
S [mm]
1000
L [mm]
1200
B [mm]
15
F [N]
2 x 3200
s [mm/rev]
15,38
m [kg]
9,2
Mounting plate
| Article | Description | B [mm] | C [mm] | m [kg] |
| P.MP.GW.H.A125.M | Angled wall mounting plate GW-TGA | 65 | 131 | 2,7 |
Article number
Description
Angled wall mounting plate GW-TGA
B [mm]
65
C [mm]
131
m [kg]
2,7
Encoder I-DE
| Article | Description | n [rpm] | m [kg] |
| P.IDE.024.01 | I-DE 24V AC/DC digital/analogue Enc. built-in | 1,2 - 8,0 | 0,06 |
Article number
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06
Potentiometer
| Article | Description | Ohm [ohm] | m [kg] |
| P.PM.500 | Potentiometer 500 ohm built-in | 500 | 0,037 |
| P.PM.1000 | Potentiometer 1000 ohm built-in | 1000 | 0,037 |
| P.PM.5000 | Potentiometer 5000 ohm built-in | 5000 | 0,037 |
| P.PM.10000 | Potentiometer 10 000 ohm built-in | 10000 | 0,037 |
Potentiometer gear set
| Article | Description | i [-] | m [kg] |
| P.PM.TWS.3,38.GW10 | Gear set 30.18.48.30 for GW10 | 3,38 | 0,10 |
| P.PM.TWS.3,38 | Gear set 30.18.48.30 | 3,38 | 0,10 |
| P.PM.TWS.5,06.GW10 | Gear set 30.27.48.30 for GW10 | 5,06 | 0,10 |
| P.PM.TWS.5,06 | Gear set 30.27.48.30 | 5,06 | 0,10 |
| P.PM.TWS.7,20 | Gear set 68.34.30.48 | 7,20 | 0,13 |
| P.PM.TWS.8,64 | Gear set 30.18.30.48 | 8,64 | 0,10 |
Drive systems for ventilation
A healthy building environment determines the livestock' productivity, growth, food consumption, stress levels and infection risks. Fresh air is vital important, where it enters in an optimal direction, at the right height and speed. For this we offer the highly innovative KL300 MultiWinch, which is specifically designed for this form of ventilation. The well-known GW series combined with winch drums or TGA rack and pinion is the solution for opening and closing tunnel doors.
De Gier Drive Systems
+ 31 174 29 20 89
