Belt winch drum D48 d25 B25 KL300
Article properties
Article Information
The GW gear motor can be equipped with different belt winch drums. The winch motor has an output shaft on which the belt winch drum is mounted. For the GW series, a single (LT1) or double cable winch drum (LT1) with a diameter of 55 mm is available. A separate and multifunctional belt winch drum is also available for use with a KL300 MultiWinch.
- Efficient winding.
- Galvanised.
- High strength.
- Easy installation.
- Low torque loss with low profile.
- No wear or breakage for winding or unwinding.
- Corrosion resistant.
- Can also be equipped with a steel cable or cord with diameters of 3 to maximum 5 mm.
Articles

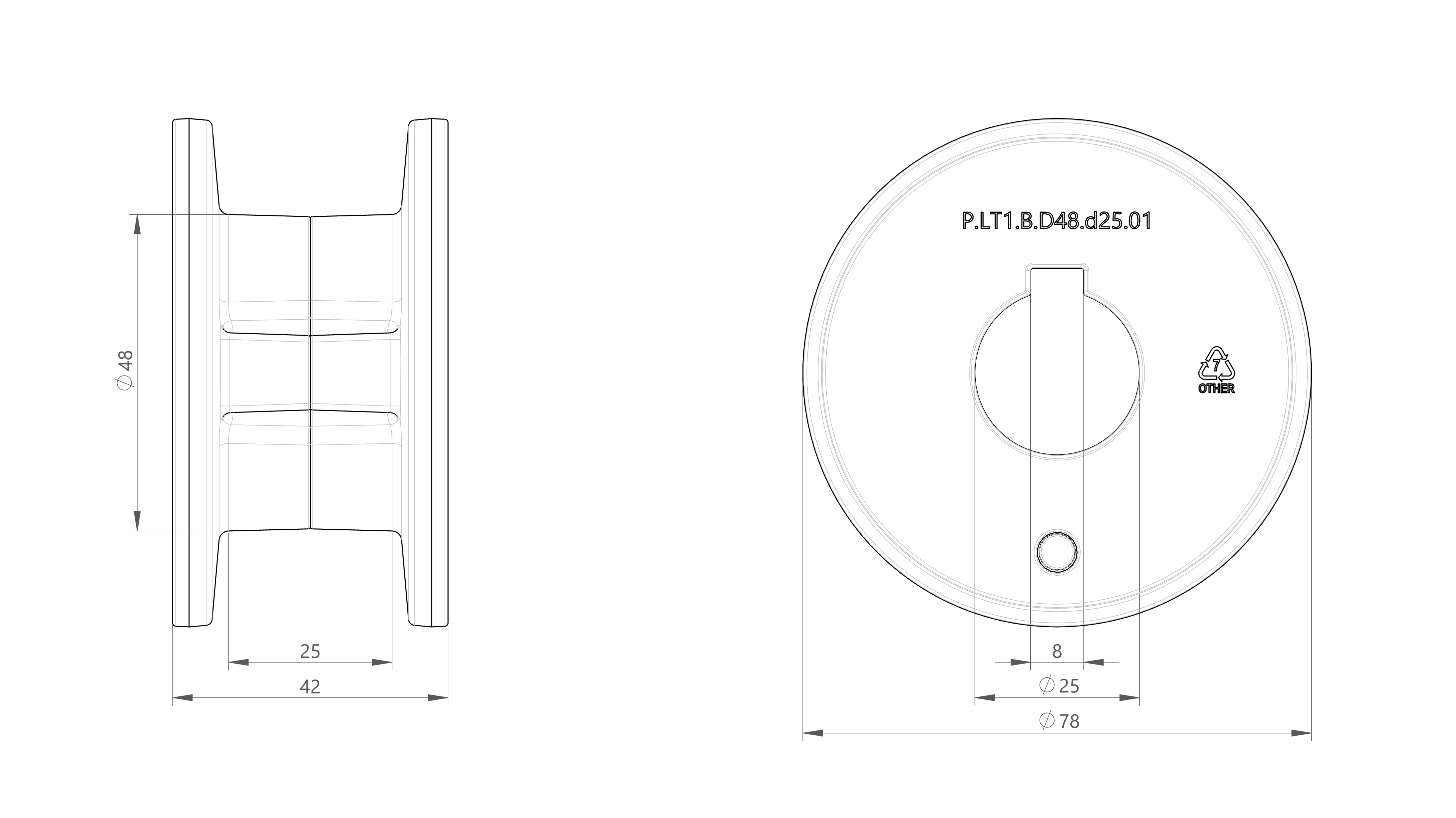

| Article | Description | L [mm] | B [mm] | D1 [mm] | D2 [mm] | D3 [mm] | m [kg] |
| P.LT1.B.D48.D25.01 | Belt winch drum D48 d25 B25 KL300 | 42 | 25 | 48 | 25 | 78 | 0,1 |
2 P.LT1.B.D48.D25.01 11 Belt winch drum D48 d25 B25 KL300 12 13 P.LT1.B.D48.D25.01.jpg 14 15 CAT_P.LT1.B.D48.D25.01_2D.gif 10 |
General Information
De Gier Drive Systems' drives are used successfully in intensive livestock farming and agricultural storage facilities around the world. KL300 MultiWinch has been specially developed for these market segments. The KL300 MultiWinch series has a very wide range of applications such as driving air inlets, tunnel doors, mixing valves and daylight control systems.
The great success of the KL300 MultiWinch series is due to the following factors:
Compact, light and smart design.
Powerful and self-locking 24V brushless stepper motor.
Manufactured from corrosion-resistant aluminium.
Protection class IP65.
Easy installation with integrated mounting base.
Low maintenance and quiet.
Plug and play.
Ideal for areas with poor power supply.
Perfect price-quality ratio.
Features of the KL300 MultiWinch motor gearboxes:
- Versatile range of accessories available.
- Drive torque up to 90 Nm.
- Maximum tensile force with single winch drum 340 kg.
- Maximum tensile force with double winch drum 2 x 170 kg
- Speed 0.8 or 0.4 rpm.
- Low speed gives very precise climate control.
- Built-in electronic limit switch for quick and easy adjustment.
- Adjustable switching range from 0.05 to 100 turns of the output shaft.
- Recommended duty cycle 25 minutes maximum.
- Controlled by 0-10V DC signal directly from climate computer.
- Optional position feedback to climate computer via CAN-LOCAL or Modbus RTU.
- Alarm in the event of a position error.
- Compatible with all makes of climate computers.
- Supports connection of a 24V DC emergency power supply.
- Supplied with installation instructions, mounting bolts and a drilling template in a handy pouch.
- Individually packaged in a sturdy cardboard box with a KL300 MultiWinch type identification label.
- Installation instructions with a II-I B certificate for your CE mark available.
