Cables on bearing-mounted central 1 winding shaft
●
●
HomeDrive SystemsDrive systems for poultry buildingsDrive systems for ventilationAir inlet valves (drive tube)

Cables on bearing-mounted central 1 winding shaft

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

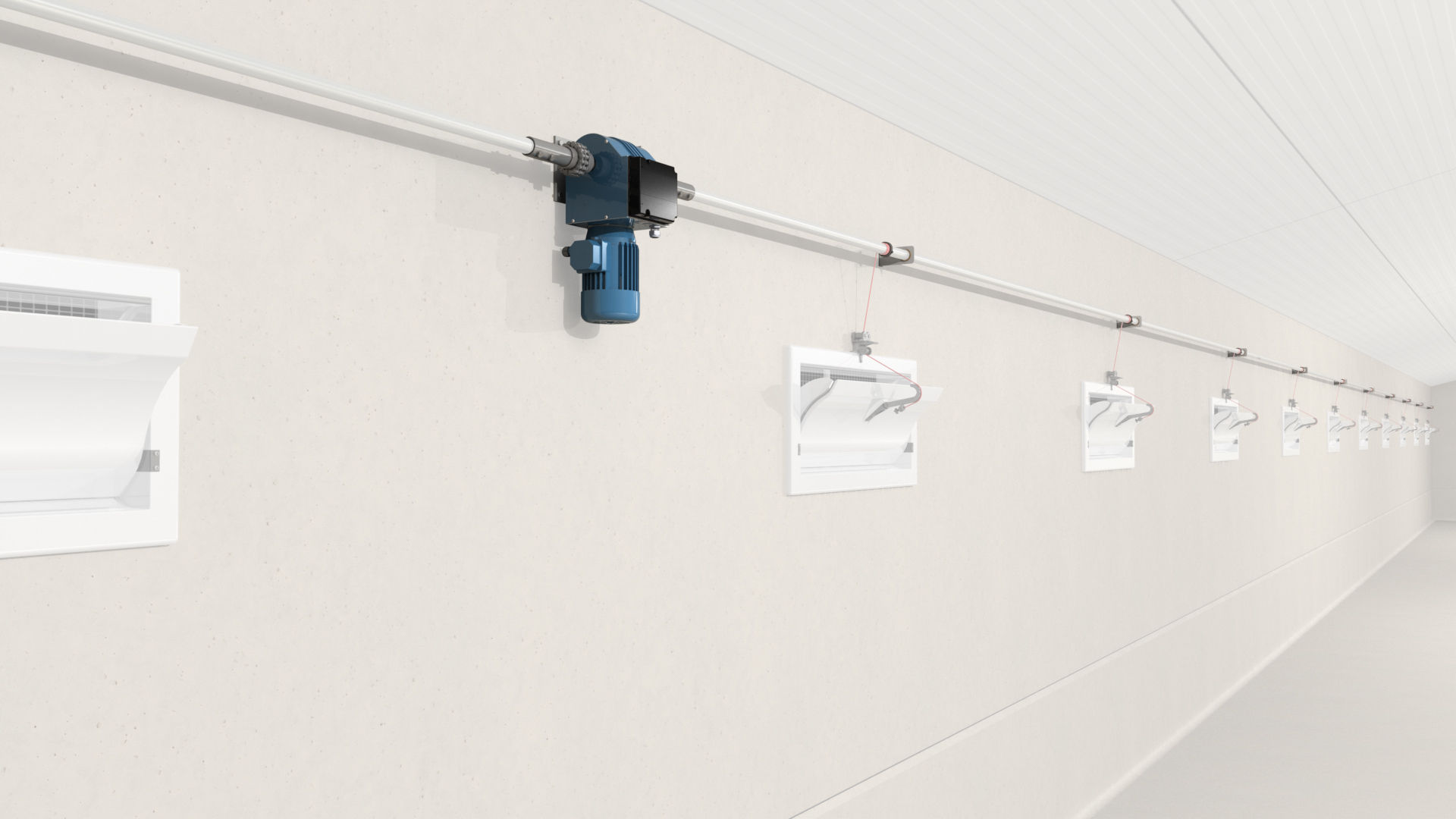

Inlet valves or flaps are commonly used for ventilation in livestock buildings. The spring mechanism of the inlet valves in combination with a motor unit that drives a winch tube opens and closes the inlet valves gradually to provide the best possible climate and welfare for the livestock.

  • For the best climate and animal welfare.
  • Highly accurate with KL300 MultiWinch.
  • Ideal solution with cable winding on tube.
  • Optimum operation with each inlet valve.
  • Low-maintenance and low-noise drive.
  • Cost-effective solution.

KL300 MultiWinch

ArticleDescriptionT [Nm]n [rpm]P [VA]I [A]s [rev]m [kg]
P.KL300.1.024.08.LKL300 0.8 24VDC for winch drum / sprocket900,8 (0,4)72 (48)3,0 (2,0)0,25 - 1006,2
Article number
P.KL300.1.024.08.L
Description
KL300 0.8 24VDC for winch drum / sprocket
T [Nm]
90
n [rpm]
0,8 (0,4)
P [VA]
72 (48)
I [A]
3,0 (2,0)
s [rev]
0,25 - 100
m [kg]
6,2

Sprocket

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW10.3.024.13.KWGW10 1.3 24VDC with CW+CH 10B z161001,322983,50,106,5-21
P.GW10.3.230.13.KWGW10 1.3 1ph 230V with CW+CH 10B z16100 / -1,3 / -1911240,09 / -1,1 / --21
P.GW10.3.400.13.KWGW10 1.3 3ph 400V with CW+CH 10B z16100 / 801,3 / 1,61911240,09 / 0,110,5 / 0,50,9 / 0,921
P.GW30.024.13.KWGW30 1.3 24VDC with CW+CH 10B z16 (IEC63)3001,33131070,199,4-22
P.GW30.2.230.13.KWGW30 1.3 1ph 230V with CW+CH 10B z16300 / -1,3 / -2201450,12 / -1,3 / --19
P.GW30.400.13.KWGW30 1.3 3ph 400V with CW+CH 10B z16300 / 2401,3 / 1,61911450,18 / 0,220,7 / 0,71,2 / 1,222
P.GW40.2.230.13.KWGW40 1.3 1ph 230V with CW+CH 10B z16400 / -1,3 / -2201590,25 / -3,1 / --26
Article number
P.GW10.3.024.13.KW
Description
GW10 1.3 24VDC with CW+CH 10B z16
T (50/60Hz) [Nm]
100
n (50/60Hz) [rpm]
1,3
L [mm]
229
D [mm]
83,5
P (50/60Hz) [kW]
0,10
I (@ Y) (50/60Hz) [A]
6,5
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.230.13.KW
Description
GW10 1.3 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
1,1 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.400.13.KW
Description
GW10 1.3 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,5 / 0,5
I (@ Δ) (50/60Hz) [A]
0,9 / 0,9
m [kg]
21
Article number
P.GW30.024.13.KW
Description
GW30 1.3 24VDC with CW+CH 10B z16 (IEC63)
T (50/60Hz) [Nm]
300
n (50/60Hz) [rpm]
1,3
L [mm]
313
D [mm]
107
P (50/60Hz) [kW]
0,19
I (@ Y) (50/60Hz) [A]
9,4
I (@ Δ) (50/60Hz) [A]
-
m [kg]
22
Article number
P.GW30.2.230.13.KW
Description
GW30 1.3 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
19
Article number
P.GW30.400.13.KW
Description
GW30 1.3 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
1,3 / 1,6
L [mm]
191
D [mm]
145
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
22
Article number
P.GW40.2.230.13.KW
Description
GW40 1.3 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / -
n (50/60Hz) [rpm]
1,3 / -
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,25 / -
I (@ Y) (50/60Hz) [A]
3,1 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
26

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

Tube bolt sprocket

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.BBKWL10B.Z16.D100Tube bolt sprocket 10B z16 - 1"10B z16D10042034961500,8
Article number
P.BBKWL10B.Z16.D100
Description
Tube bolt sprocket 10B z16 - 1"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
150
m [kg]
0,8

Weld sprocket

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.LKWL10B.Z16.D100Weld sprocket 10B z16 - 1" and 2"10B z16D1004203496300,5
Article number
P.LKWL10B.Z16.D100
Description
Weld sprocket 10B z16 - 1" and 2"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
30
m [kg]
0,5

Slide bearing plate

ArticleDescriptionA [mm]H [mm]L [mm]m [kg]
P.GL100.H.L100Slide bearing plate 1" H A042 L100 mm42751000,1
P.GL100.H.L120Slide bearing plate 1" H A062 L120 mm62951200,1
P.GL100.H.L140Slide bearing plate 1" H A082 L140 mm821151400,2
P.GL100.H.L180Slide bearing plate 1" H A122 L180 mm1221551800,2
Article number
P.GL100.H.L100
Description
Slide bearing plate 1" H A042 L100 mm
A [mm]
42
H [mm]
75
L [mm]
100
m [kg]
0,1
Article number
P.GL100.H.L120
Description
Slide bearing plate 1" H A062 L120 mm
A [mm]
62
H [mm]
95
L [mm]
120
m [kg]
0,1
Article number
P.GL100.H.L140
Description
Slide bearing plate 1" H A082 L140 mm
A [mm]
82
H [mm]
115
L [mm]
140
m [kg]
0,2
Article number
P.GL100.H.L180
Description
Slide bearing plate 1" H A122 L180 mm
A [mm]
122
H [mm]
155
L [mm]
180
m [kg]
0,2

Cable ring

ArticleArticle namem [kg]
P.KABELRINGCable clamp 1" d36 D50 4xØ4,50,09
Article number
P.KABELRING
Article name
Cable clamp 1" d36 D50 4xØ4,5
m [kg]
0,09

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
P.PM.2000Potentiometer 2000 ohm built-in20000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037
Article number
P.PM.2000
Description
Potentiometer 2000 ohm built-in
Ohm [ohm]
2000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [rpm]m [kg]
P.PM.TWS.2,03.GW10Gear set 75.27.48.30 for GW102,030,11
P.PM.TWS.2,03Gear set 75.27.48.302,030,11
P.PM.TWS.2,57.GW10Gear set 70.32.48.30 for GW102,570,10
P.PM.TWS.2,57Gear set 70.32.48.302,570,10
P.PM.TWS.3,75.GW10Gear set 30.20.48.30 for GW103,750,10
P.PM.TWS.3,75Gear set 30.20.48.303,750,10
P.PM.TWS.4,50.GW10Gear set 30.24.48.30 for GW104,500,10
P.PM.TWS.4,50Gear set 30.24.48.304,500,10
Article number
P.PM.TWS.2,03.GW10
Description
Gear set 75.27.48.30 for GW10
i [rpm]
2,03
m [kg]
0,11
Article number
P.PM.TWS.2,03
Description
Gear set 75.27.48.30
i [rpm]
2,03
m [kg]
0,11
Article number
P.PM.TWS.2,57.GW10
Description
Gear set 70.32.48.30 for GW10
i [rpm]
2,57
m [kg]
0,10
Article number
P.PM.TWS.2,57
Description
Gear set 70.32.48.30
i [rpm]
2,57
m [kg]
0,10
Article number
P.PM.TWS.3,75.GW10
Description
Gear set 30.20.48.30 for GW10
i [rpm]
3,75
m [kg]
0,10
Article number
P.PM.TWS.3,75
Description
Gear set 30.20.48.30
i [rpm]
3,75
m [kg]
0,10
Article number
P.PM.TWS.4,50.GW10
Description
Gear set 30.24.48.30 for GW10
i [rpm]
4,50
m [kg]
0,10
Article number
P.PM.TWS.4,50
Description
Gear set 30.24.48.30
i [rpm]
4,50
m [kg]
0,10

Drive systems for ventilation

A healthy building environment determines the livestock' productivity, growth, food consumption, stress levels and infection risks. Fresh air is vital important, where it enters in an optimal direction, at the right height and speed. For this we offer the highly innovative KL300 MultiWinch, which is specifically designed for this form of ventilation. The well-known GW series combined with winch drums or TGA rack and pinion is the solution for opening and closing tunnel doors.
