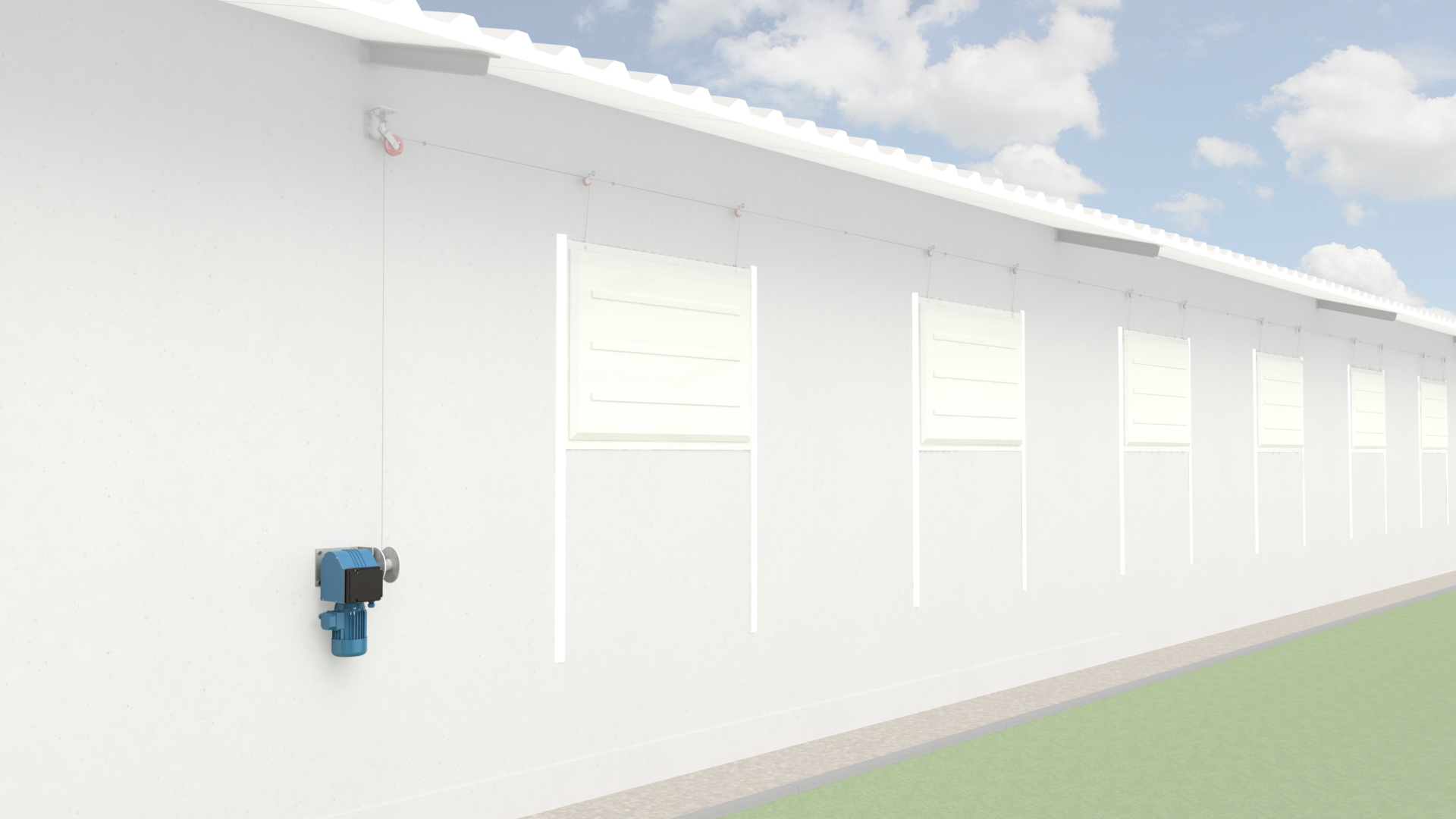

Get in contact with usSliding panels are available in various designs and sizes. To drive the various systems, an installation with a winch motor, a cable and pulleys is often used.
Article | Description | T [Nm] | n [rpm] | P [VA] | I [A] | s [rev] | m [kg] |
P.KL300.1.024.08.L | KL300 0.8 24VDC for winch drum / sprocket | 90 | 0,8 (0,4) | 72 (48) | 3,0 (2,0) | 0,25 - 100 | 6,2 |
2 P.KL300.1.024.08.L 11 KL300 0.8 24VDC for winch drum / sprocket 12 13 P.KL300.1.024.08.L.jpg 14 15 CAT_P.KL300.1.024.08.L_2D.gif 10 |
Article | Description | L [mm] | B [mm] | D1 [mm] | D2 [mm] | D3 [mm] | m [kg] |
P.LT1.B.D48.D25.01 | Belt winch drum D48 d25 B25 KL300 | 42 | 25 | 48 | 25 | 78 | 0,1 |
2 P.LT1.B.D48.D25.01 11 Belt winch drum D48 d25 B25 KL300 12 13 P.LT1.B.D48.D25.01.jpg 14 15 CAT_P.LT1.B.D48.D25.01_2D.gif 10 |
Article | Description | T (50/60Hz) [Nm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Δ) (50/60Hz) [A] | I (@ Y) (50/60Hz) [A] | m [kg] |
P.GW10.3.230.26.L | GW10 2.6 1ph 230V for winch drum | 100 / - | 168 | 124 | 0,09 / - | - | 0,9 / - | 21 |
2 P.GW10.3.230.26.L 11 GW10 2.6 1ph 230V for winch drum 13 14 P.GW10.400.26.L.jpg 15 16 CAT_P.GW10.400.26.L_2D.gif 17 10 | ||||||||
P.GW10.3.400.26.L | GW10 2.6 3ph 400V for winch drum | 100 / 80 | 168 | 124 | 0,09 / 0,11 | 0,7 / 0,7 | 0,4 / 0,4 | 21 |
2 P.GW10.3.400.26.L 11 GW10 2.6 3ph 400V for winch drum 13 14 P.GW10.400.26.L.jpg 15 16 CAT_P.GW10.400.26.L_2D.gif 17 10 | ||||||||
P.GW30.2.230.26.L | GW30 2.6 1ph 230V for winch drum | 300 / - | 220 | 145 | 0,12 / - | - | 1,3 / - | 27 |
2 P.GW30.2.230.26.L 11 GW30 2.6 1ph 230V for winch drum 13 14 P.GW30.400.26.L.jpg 15 16 CAT_P.GW30.400.26.L_2D.gif 17 10 | ||||||||
P.GW30.400.26.L | GW30 2.6 3ph 400V for winch drum | 300 / 240 | 220 | 145 | 0,25 / 0,30 | 1,4 / 1,4 | 0,8 / 0,8 | 27 |
2 P.GW30.400.26.L 11 GW30 2.6 3ph 400V for winch drum 13 14 P.GW30.400.26.L.jpg 15 16 CAT_P.GW30.400.26.L_2D.gif 17 10 |
Article | Description | L [mm] | B [mm] | D1 [mm] | D2 [mm] | D3 [mm] | m [kg] |
P.LT1.GW10 | Single cable winch drum GW10 | 90 | 63 | 50 | 18 | 118 | 2,8 |
P.LT1.GW | Single cable winch drum GW20/30/40 | 90 | 63 | 50 | 28 | 148 | 1,8 |
Article | Description | A [mm] | H [mm] | m [kg] |
P.MP.GW.H.A100 | Mounting plate GW right angle A100 H111 | 100 | 111 | 2,0 |
P.MP.GW.H.A122 | Mounting plate GW right angle A122 H133 | 122 | 133 | 2,2 |
Article | Description | n [rpm] | m [kg] |
P.IDE.024.01 | I-DE 24V AC/DC digital/analogue Enc. built-in | 1,2 - 8,0 | 0,06 |
Article | Description | i [-] | m [kg] |
P.PM.TWS.1,21.GW10 | Gear set 84.18.48.30 for GW10 | 1,21 | 0,12 |
P.PM.TWS.1,21 | Gear set 84.18.48.30 | 1,21 | 0,12 |
P.PM.TWS.1,46.GW10 | Gear set 81.21.48.30 for GW10 | 1,46 | 0,12 |
P.PM.TWS.1,46 | Gear set 81.21.48.30 | 1,46 | 0,12 |
P.PM.TWS.1,64.GW10 | Gear set 79.23.48.30 for GW10 | 1,64 | 0,11 |
P.PM.TWS.1,64 | Gear set 79.23.48.30 | 1,64 | 0,11 |
P.PM.TWS.2,03.GW10 | Gear set 75.27.48.30 for GW10 | 2,03 | 0,11 |
P.PM.TWS.2,03 | Gear set 75.27.48.30 | 2,03 | 0,11 |
P.PM.TWS.2,34.GW10 | Gear set 72.30.48.30 for GW10 | 2,34 | 0,10 |
P.PM.TWS.2,34 | Gear set 72.30.48.30 | 2,34 | 0,10 |
P.PM.TWS.2,57.GW10 | Gear set 70.32.48.30 for GW10 | 2,57 | 0,10 |
P.PM.TWS.2,57 | Gear set 70.32.48.30 | 2,57 | 0,10 |
P.PM.TWS.2,81.GW10 | Gear set 68.34.48.30 for GW10 | 2,81 | 0,13 |
P.PM.TWS.2,81 | Gear set 68.34.48.30 | 2,81 | 0,13 |
P.PM.TWS.3,19.GW10 | Gear set 30.17.48.30 for GW10 | 3,19 | 0,10 |
P.PM.TWS.3,19 | Gear set 30.17.48.30 | 3,19 | 0,10 |
A healthy climate in the stable determines
the productivity of animals, the growth, feed consumption, the stress level and the risk of infection. Fresh air is of great importance, whereby it has to enter in an optimum direction, at the right height and speed. Our gear motors contribute to creating the ideal climate in every stable. We offer the highly innovative KL300 MultiWinch for example, specifically developed for this type of ventilation. The well-known GW motor gearbox series in combination with our THG30 Rack and Pinion system is the solution for opening and closing tunnel doors.
