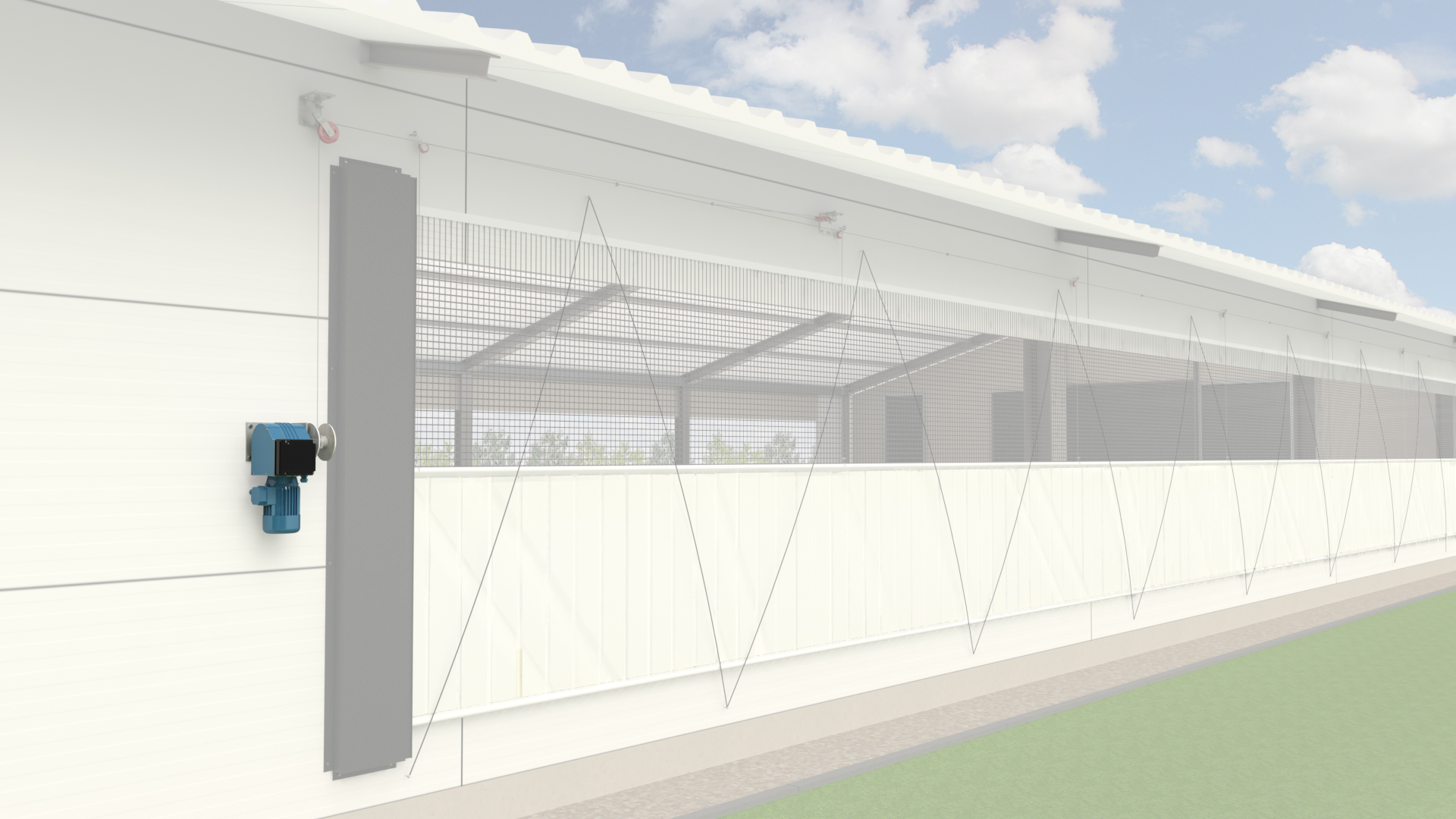

Livestock building curtains are available in various versions, such as pleated curtains, roller blinds and extension curtains. There are different drive solutions for different systems. Curtains can be raised by a guide tube, or they can be opened and closed from the top by a cable and pulley.

  • Optimal against wind and rain.
  • Various accessories for an ideal combination.
  • Low-maintenance and low-noise.
  • Cost-effective solution.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Δ) (50/60Hz) [A]I (@ Y) (50/60Hz) [A]m [kg]
P.GW10.3.230.26.LGW10 2.6 1ph 230V for winch drum100 / -1681240,09 / --0,9 / -21
P.GW10.3.400.26.LGW10 2.6 3ph 400V for winch drum100 / 801681240,09 / 0,110,7 / 0,70,4 / 0,421
P.GW10.3.400.52.LGW10 5.2 3ph 400V for winch drum100 / 801911240,18 / 0,221,2 / 1,20,7 / 0,724
P.GW30.2.230.26.LGW30 2.6 1ph 230V for winch drum300 / -2201450,12 / --1,3 / -27
P.GW30.400.26.LGW30 2.6 3ph 400V for winch drum300 / 2402201450,25 / 0,301,4 / 1,40,8 / 0,827
P.GW30.400.52.LGW30 5.2 3ph 400V for winch drum300 / 2402201450,37 / 0,442,1 / 2,11,2 / 1,230
P.GW40.2.230.26.LGW40 2.6 1ph 230V for winch drum400 / -2201370,25 / --3,2 / -29
P.GW40.400.26.LGW40 2.6 3ph 400V for winch drum400 / 3202201590,37 / 0,441,7 / 1,71,0 / 1,032
P.GW40.3.400.52.LGW40 5.2 3ph 400V for winch drum400 / 3202201370,55 / 0,662,6 / 2,61,5 / 1,532
Article number
P.GW10.3.230.26.L
Description
GW10 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
100 / -
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Δ) (50/60Hz) [A]
-
I (@ Y) (50/60Hz) [A]
0,9 / -
m [kg]
21
Article number
P.GW10.3.400.26.L
Description
GW10 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
m [kg]
21
Article number
P.GW10.3.400.52.L
Description
GW10 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
m [kg]
24
Article number
P.GW30.2.230.26.L
Description
GW30 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Δ) (50/60Hz) [A]
-
I (@ Y) (50/60Hz) [A]
1,3 / -
m [kg]
27
Article number
P.GW30.400.26.L
Description
GW30 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
m [kg]
27
Article number
P.GW30.400.52.L
Description
GW30 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
m [kg]
30
Article number
P.GW40.2.230.26.L
Description
GW40 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
400 / -
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,25 / -
I (@ Δ) (50/60Hz) [A]
-
I (@ Y) (50/60Hz) [A]
3,2 / -
m [kg]
29
Article number
P.GW40.400.26.L
Description
GW40 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
400 / 320
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
m [kg]
32
Article number
P.GW40.3.400.52.L
Description
GW40 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
400 / 320
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
m [kg]
32

Cable winch drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.GW10Single cable winch drum GW10906350181182,8
P.LT1.GWSingle cable winch drum GW20/30/40906350281481,8
Article number
P.LT1.GW10
Description
Single cable winch drum GW10
L [mm]
90
B [mm]
63
D1 [mm]
50
D2 [mm]
18
D3 [mm]
118
m [kg]
2,8
Article number
P.LT1.GW
Description
Single cable winch drum GW20/30/40
L [mm]
90
B [mm]
63
D1 [mm]
50
D2 [mm]
28
D3 [mm]
148
m [kg]
1,8

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
P.PM.2000Potentiometer 2000 ohm built-in20000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037
Article number
P.PM.2000
Description
Potentiometer 2000 ohm built-in
Ohm [ohm]
2000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [-]m [kg]
P.PM.TWS.16,32Gear set 30.34.30.4816,30,10
P.PM.TWS.23,31Gear set 21.34.30.4823,30,10
P.PM.TWS.27,20Gear set 18.34.30.4827,20,10
P.PM.TWS.31,50Gear set 16.35.30.4831,50,10
Article number
P.PM.TWS.16,32
Description
Gear set 30.34.30.48
i [-]
16,3
m [kg]
0,10
Article number
P.PM.TWS.23,31
Description
Gear set 21.34.30.48
i [-]
23,3
m [kg]
0,10
Article number
P.PM.TWS.27,20
Description
Gear set 18.34.30.48
i [-]
27,2
m [kg]
0,10
Article number
P.PM.TWS.31,50
Description
Gear set 16.35.30.48
i [-]
31,5
m [kg]
0,10
