Continuous ridge ventilation - THG25-42RK

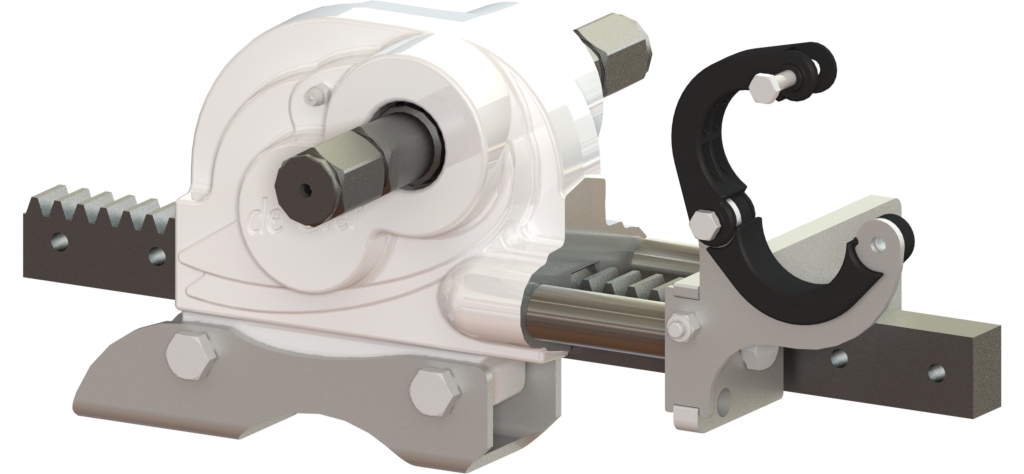

Continuous ridge ventilation - THG55RK

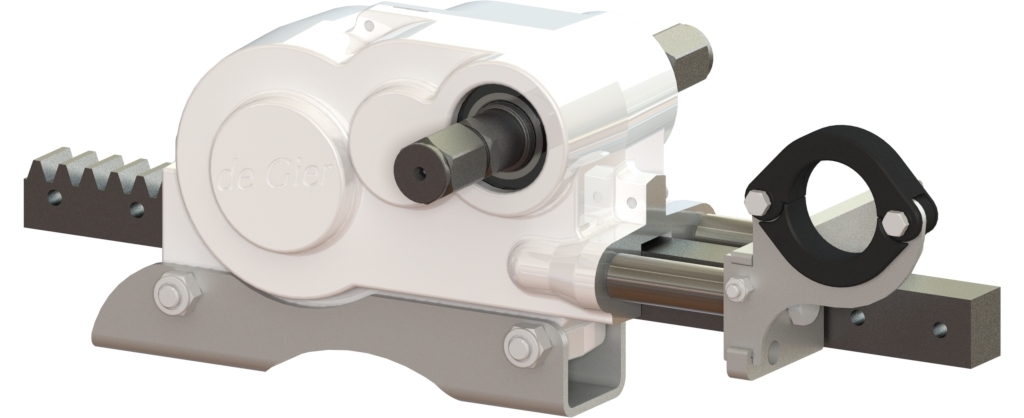

Continuous ridge ventilation - THG76RK
Continuous ridge ventilation - THG25-42RK
We are happy to help you with making a calculation
Get in contact with usVenlo greenhouses with continuous ridge ventilation in combination with truss-rail ventilation are used in areas where very large ventilation capacity is required. The continuous ventilation windows are connected in the gutter direction of the greenhouse. One THG gear rack operates a row of ventilation windows in a section. The lee- or wind-side ventilation gear racks are coupled with drive tubes and driven by a GW motor gearbox.
- Ideal installation location gives minimal shading.
- Ideal force transfer onto column.
- Very high ventilation capacity.
- Fast and efficient installation of insect screens.
- Suitable for prefabricated drive shafts.
- Ideal for light and medium loads (5000/8500 N).
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.400.26.KW | GW10 2.6 3ph 400V with CW+CH 10B z16 | 100 / 80 | 2,6 / 3,1 | 168 | 124 | 0,09 / 0,11 | 0,4 / 0,4 | 0,7 / 0,7 | 21 |
 2 P.GW10.3.400.26.KW 11 GW10 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.52.KW | GW10 5.2 3ph 400V with CW+CH 10B z16 | 100 / 80 | 5,2 / 6,2 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 24 |
2 P.GW10.3.400.52.KW 11 GW10 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
 2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
 2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW100.400.26.KW | GW100 2.6 3ph 400V with CW+CH 12B z18 | 1000 / 800 | 2,6 / 3,1 | 242 | 159 | 0,75 / 0,90 | 2,2 / 2,2 | 3,8 / 3,8 | 38 |
 2 P.GW100.400.26.KW 11 GW100 2.6 3ph 400V with CW+CH 12B z18 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW100.400.26.KW_2D.gif 17 16 10 |
Article number
Description
GW10 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29
Article number
Description
GW80 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
218
D [mm]
159
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
31
Article number
Description
GW80 4.0 3ph 400V with CW+CH 10B z16 d25
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,0 / 2,0
I (@ Δ) (50/60Hz) [A]
3,5 / 3,5
m [kg]
38
Article number
Description
GW100 2.6 3ph 400V with CW+CH 12B z18
T (50/60Hz) [Nm]
1000 / 800
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,2 / 2,2
I (@ Δ) (50/60Hz) [A]
3,8 / 3,8
m [kg]
38
Rack box
| Article | Description | F [N] | T [Nm] | i [-] | L [mm] | S [mm] | s [mm/rev] | n [rev] | Bk [mm] | B [mm] | m [kg] |
| P.THG25RK.S0750 | THG25RK, L1260 S0750mm | 5000 | 32,50 | 2,760 | 1260 | 750 | 36,35 | 21 | 50 | 150 | 9,0 |
 2 P.THG25RK.S0750 11 THG25RK, L1260 S0750mm 12 13 P.THG25RK.S0000.jpg 14 15 CAT_P.THG25RK.S0000_2D.gif 16 17 18 19 9,0 10 5000 | |||||||||||
| P.THG25RK.S0900 | THG25RK, L1410 S0900mm | 5000 | 32,50 | 2,760 | 1410 | 900 | 36,35 | 25 | 50 | 150 | 9,5 |
2 P.THG25RK.S0900 11 THG25RK, L1410 S0900mm 12 13 P.THG25RK.S0000.jpg 14 15 CAT_P.THG25RK.S0000_2D.gif 16 17 18 19 9,5 10 5000 | |||||||||||
| P.THG25RK.S1100 | THG25RK, L1610 S1100mm | 5000 | 32,50 | 2,760 | 1610 | 1100 | 36,35 | 31 | 50 | 150 | 10,0 |
2 P.THG25RK.S1100 11 THG25RK, L1610 S1100mm 12 13 P.THG25RK.S0000.jpg 14 15 CAT_P.THG25RK.S0000_2D.gif 16 17 18 19 10,0 10 5000 | |||||||||||
| P.THG42RK.S0750 | THG42RK, L1260 S0750mm | 8500 | 55,25 | 2,760 | 1260 | 750 | 36,35 | 21 | 50 | 150 | 10,0 |
 2 P.THG42RK.S0750 11 THG42RK, L1260 S0750mm 12 13 P.THG42RK.S0000.jpg 14 15 CAT_P.THG42RK.S0000_2D.gif 16 17 18 19 10,0 10 8500 | |||||||||||
| P.THG42RK.S0900 | THG42RK, L1410 S0900mm | 8500 | 55,25 | 2,760 | 1410 | 900 | 36,35 | 25 | 50 | 150 | 10,5 |
2 P.THG42RK.S0900 11 THG42RK, L1410 S0900mm 12 13 P.THG42RK.S0000.jpg 14 15 CAT_P.THG42RK.S0000_2D.gif 16 17 18 19 10,5 10 8500 | |||||||||||
| P.THG42RK.S1100 | THG42RK, L1610 S1100mm | 8500 | 55,25 | 2,760 | 1610 | 1100 | 36,35 | 31 | 50 | 150 | 11,0 |
2 P.THG42RK.S1100 11 THG42RK, L1610 S1100mm 12 13 P.THG42RK.S0000.jpg 14 15 CAT_P.THG42RK.S0000_2D.gif 16 17 18 19 11,0 10 8500 |
Article number
Description
THG25RK, L1260 S0750mm
F [N]
5000
T [Nm]
32,50
i [-]
2,760
L [mm]
1260
S [mm]
750
s [mm/rev]
36,35
n [rev]
21
Bk [mm]
50
B [mm]
150
m [kg]
9,0
Article number
Description
THG25RK, L1410 S0900mm
F [N]
5000
T [Nm]
32,50
i [-]
2,760
L [mm]
1410
S [mm]
900
s [mm/rev]
36,35
n [rev]
25
Bk [mm]
50
B [mm]
150
m [kg]
9,5
Article number
Description
THG25RK, L1610 S1100mm
F [N]
5000
T [Nm]
32,50
i [-]
2,760
L [mm]
1610
S [mm]
1100
s [mm/rev]
36,35
n [rev]
31
Bk [mm]
50
B [mm]
150
m [kg]
10,0
Article number
Description
THG42RK, L1260 S0750mm
F [N]
8500
T [Nm]
55,25
i [-]
2,760
L [mm]
1260
S [mm]
750
s [mm/rev]
36,35
n [rev]
21
Bk [mm]
50
B [mm]
150
m [kg]
10,0
Article number
Description
THG42RK, L1410 S0900mm
F [N]
8500
T [Nm]
55,25
i [-]
2,760
L [mm]
1410
S [mm]
900
s [mm/rev]
36,35
n [rev]
25
Bk [mm]
50
B [mm]
150
m [kg]
10,5
Article number
Description
THG42RK, L1610 S1100mm
F [N]
8500
T [Nm]
55,25
i [-]
2,760
L [mm]
1610
S [mm]
1100
s [mm/rev]
36,35
n [rev]
31
Bk [mm]
50
B [mm]
150
m [kg]
11,0
Coupling set
| Article | Description | D [mm] | B [mm] | m [kg] |
| P.SKP.D27 | Coupling set D27 for THG25/42/55 rack | 27 | 15 / 20 | 0,2 |
| P.SKP.D32 | Coupling set D32 for THG25/42/55 rack | 32 | 15 / 20 | 0,2 |
Article number
Description
Coupling set D27 for THG25/42/55 rack
D [mm]
27
B [mm]
15 / 20
m [kg]
0,2
Article number
Description
Coupling set D32 for THG25/42/55 rack
D [mm]
32
B [mm]
15 / 20
m [kg]
0,2
Coupling set fastener
| Article | Description | B [mm] | m [kg] |
| P.SKP.BVM.15 | BVM coupling set - THG25 rack | 35 | 0,03 |
| P.SKP.BVM.20 | BVM coupling set - THG42/55 rack | 35 | 0,03 |
Locking
| Article | Description | m [kg] |
| P.AS-BORGCLIP | Axle securing clip | 0,01 |
Weld sprockets
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.LKWL10B.Z16.D125 | Weld sprocket 10B z16 - 5/4" | 10B z16 | D125 | 420 | 43 | 96 | 30 | 0,4 |
 2 P.LKWL10B.Z16.D125 11 Weld sprocket 10B z16 - 5/4" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D125_2D.gif 17 10 |
Article number
Description
Weld sprocket 10B z16 - 5/4"
Chain
10B z16
Shaft
D125
Tmax [Nm]
420
Db [mm]
43
D [mm]
96
L [mm]
30
m [kg]
0,4
Chains
| Article | Description | Tmax [Nm] | D [mm] | m [kg] |
| P.KTG10B-2.Z16 | Chain 10B z16 | 420 | 96 | 0,5 |
| P.KTG12B-2.Z18 | Chain 12B z18 | 760 | 126 | 0,8 |
Sleeve joint coupling prefab
| Article | Description | Db [mm] | Type | m [kg] |
| P.SLKP125.S20 | Prefab sleeve joint coupling 5/4" - S20 | 42,4 | S20 | 0,2 |
Article number
Description
Prefab sleeve joint coupling 5/4" - S20
Db [mm]
42,4
Type
S20
m [kg]
0,2
Sleeve sprockets on THG25-42RK
| Article | Description | Chain | Shaft | Tmax [Nm] | D2 [mm] | L [mm] | m [kg] |
| P.KWL10B.Z16.S20 | Sleeve sprocket 10B z16 p5/8" s20 | 10B z16 | S20 | 240 | 77 | 27 | 0,4 |
 2 P.KWL10B.Z16.S20 11 Sleeve sprocket 10B z16 p5/8" s20 12 13 P.KWL10B.Z16.S20.jpg 14 15 CAT_P.KWL10B.Z16.S20_2D.gif 10 |
Article number
Description
Sleeve sprocket 10B z16 p5/8" s20
Chain
10B z16
Shaft
S20
Tmax [Nm]
240
D2 [mm]
77
L [mm]
27
m [kg]
0,4
Drive systems for ventilation
Rapidly varying weather conditions are the order of the day. The need for good, accurate ventilation systems and airtightness in larger production greenhouses is becoming increasingly important. New cultivation requires insights for less, accurate and metered ventilation in combination with more screens with the aim of keeping as much heat and moisture as possible in the greenhouse to save energy. To achieve an optimal climate through optimal ventilation, our drives are essential for optimal results.
Continuous ridge ventilation - THG55RK
We are happy to help you with making a calculation
Get in contact with usVenlo greenhouses with continuous ridge ventilation in combination with truss-rail ventilation are used in areas where very large ventilation capacity is required. The continuous ventilation windows are connected in the gutter direction of the greenhouse. One THG gear rack operates a row of ventilation windows in a section. The lee- or wind-side ventilation gear racks are coupled with drive tubes and driven by a GW motor gearbox.
- Ideal installation location gives minimal shading.
- Ideal force transfer onto column.
- Very high ventilation capacity.
- Fast and efficient installation of insect screens.
- Suitable for prefabricated drive shafts.
- Ideal for medium load applications (1100).
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.400.26.KW | GW10 2.6 3ph 400V with CW+CH 10B z16 | 100 / 80 | 2,6 / 3,1 | 168 | 124 | 0,09 / 0,11 | 0,4 / 0,4 | 0,7 / 0,7 | 21 |
2 P.GW10.3.400.26.KW 11 GW10 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.52.KW | GW10 5.2 3ph 400V with CW+CH 10B z16 | 100 / 80 | 5,2 / 6,2 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 24 |
2 P.GW10.3.400.52.KW 11 GW10 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW100.400.26.KW | GW100 2.6 3ph 400V with CW+CH 12B z18 | 1000 / 800 | 2,6 / 3,1 | 242 | 159 | 0,75 / 0,90 | 2,2 / 2,2 | 3,8 / 3,8 | 38 |
2 P.GW100.400.26.KW 11 GW100 2.6 3ph 400V with CW+CH 12B z18 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW100.400.26.KW_2D.gif 17 16 10 |
Article number
Description
GW10 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29
Article number
Description
GW80 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
218
D [mm]
159
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
31
Article number
Description
GW80 4.0 3ph 400V with CW+CH 10B z16 d25
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,0 / 2,0
I (@ Δ) (50/60Hz) [A]
3,5 / 3,5
m [kg]
38
Article number
Description
GW100 2.6 3ph 400V with CW+CH 12B z18
T (50/60Hz) [Nm]
1000 / 800
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,2 / 2,2
I (@ Δ) (50/60Hz) [A]
3,8 / 3,8
m [kg]
38
Rack box
| Article | Description | F [N] | T [Nm] | i [-] | L [mm] | S [mm] | s [mm/rev] | n [rev] | m [kg] |
| P.THG55RK.1.S0750 | THG55RK, L1260 S0750mm | 11000 | 65,00 | 3,125 | 1260 | 750 | 36,19 | 21 | 9,2 |
 2 P.THG55RK.1.S0750 11 THG55RK, L1260 S0750mm 12 13 P.THG55RK.1.S0000 - dicht.jpg 14 15 CAT_P.THG55RK.1.S0000_2D.gif 16 17 10 | |||||||||
| P.THG55RK.1.S0900 | THG55RK, L1410 S0900mm | 11000 | 65,00 | 3,125 | 1410 | 900 | 36,19 | 25 | 9,8 |
2 P.THG55RK.1.S0900 11 THG55RK, L1410 S0900mm 12 13 P.THG55RK.1.S0000 - dicht.jpg 14 15 CAT_P.THG55RK.1.S0000_2D.gif 16 17 10 | |||||||||
| P.THG55RK.1.S1100 | THG55RK, L1610 S1100mm | 11000 | 65,00 | 3,125 | 1610 | 1100 | 36,19 | 31 | 10,7 |
2 P.THG55RK.1.S1100 11 THG55RK, L1610 S1100mm 12 13 P.THG55RK.1.S0000 - dicht.jpg 14 15 CAT_P.THG55RK.1.S0000_2D.gif 16 17 10 |
Article number
Description
THG55RK, L1260 S0750mm
F [N]
11000
T [Nm]
65,00
i [-]
3,125
L [mm]
1260
S [mm]
750
s [mm/rev]
36,19
n [rev]
21
m [kg]
9,2
Article number
Description
THG55RK, L1410 S0900mm
F [N]
11000
T [Nm]
65,00
i [-]
3,125
L [mm]
1410
S [mm]
900
s [mm/rev]
36,19
n [rev]
25
m [kg]
9,8
Article number
Description
THG55RK, L1610 S1100mm
F [N]
11000
T [Nm]
65,00
i [-]
3,125
L [mm]
1610
S [mm]
1100
s [mm/rev]
36,19
n [rev]
31
m [kg]
10,7
Clamping set
Coupling set
| Article | Description | D [mm] | B [mm] | m [kg] |
| P.SKP.D27 | Coupling set D27 for THG25/42/55 rack | 27 | 15 / 20 | 0,2 |
| P.SKP.D32 | Coupling set D32 for THG25/42/55 rack | 32 | 15 / 20 | 0,2 |
Article number
Description
Coupling set D27 for THG25/42/55 rack
D [mm]
27
B [mm]
15 / 20
m [kg]
0,2
Article number
Description
Coupling set D32 for THG25/42/55 rack
D [mm]
32
B [mm]
15 / 20
m [kg]
0,2
Coupling set fastener
| Article | Description | B [mm] | m [kg] |
| P.SKP.BVM.20 | BVM coupling set - THG42/55 rack | 35 | 0,03 |
Locking
| Article | Description | m [kg] |
| P.ABR.24 | Shaft locking ring 24 DIN6799 EZ | 0,01 |
Weld sprockets
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.LKWL10B.Z16.D125 | Weld sprocket 10B z16 - 5/4" | 10B z16 | D125 | 420 | 43 | 96 | 30 | 0,4 |
2 P.LKWL10B.Z16.D125 11 Weld sprocket 10B z16 - 5/4" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D125_2D.gif 17 10 |
Article number
Description
Weld sprocket 10B z16 - 5/4"
Chain
10B z16
Shaft
D125
Tmax [Nm]
420
Db [mm]
43
D [mm]
96
L [mm]
30
m [kg]
0,4
Chains
| Article | Description | Tmax [Nm] | D [mm] | m [kg] |
| P.KTG10B-2.Z16 | Chain 10B z16 | 420 | 96 | 0,5 |
| P.KTG12B-2.Z18 | Chain 12B z18 | 760 | 126 | 0,8 |
Sleeve joint coupling prefab
| Article | Description | Db [mm] | Type | m [kg] |
| P.SLKP125.ZK | Prefab sleeve joint coupling 5/4" - ZK | 42,4 | ZK | 0,2 |
Article number
Description
Prefab sleeve joint coupling 5/4" - ZK
Db [mm]
42,4
Type
ZK
m [kg]
0,2
Sprockets on THG55RK
| Article | Description | Chain | Shaft | Tmax [Nm] | D2 [mm] | L [mm] | m [kg] |
| P.KWL10B.Z16.ZK | Sleeve sprocket 10B z16 - ZK | 10B z16 | ZK | 420 | 96 | 30 | 0,6 |
 2 P.KWL10B.Z16.ZK 11 Sleeve sprocket 10B z16 - ZK 12 13 P.KWL10B.Z16.ZK.jpg 14 15 CAT_P.KWL10B.Z16.ZK_2D.gif 10 |
Article number
Description
Sleeve sprocket 10B z16 - ZK
Chain
10B z16
Shaft
ZK
Tmax [Nm]
420
D2 [mm]
96
L [mm]
30
m [kg]
0,6
Drive systems for ventilation
Rapidly varying weather conditions are the order of the day. The need for good, accurate ventilation systems and airtightness in larger production greenhouses is becoming increasingly important. New cultivation requires insights for less, accurate and metered ventilation in combination with more screens with the aim of keeping as much heat and moisture as possible in the greenhouse to save energy. To achieve an optimal climate through optimal ventilation, our drives are essential for optimal results.
Continuous ridge ventilation - THG76RK
We are happy to help you with making a calculation
Get in contact with usVenlo greenhouses with continuous ridge ventilation in combination with truss-rail ventilation are used in areas where very large ventilation capacity is required. The continuous ventilation windows are connected in the gutter direction of the greenhouse. One THG gear rack operates a row of ventilation windows in a section. The lee- or wind-side ventilation gear racks are coupled with drive tubes and driven by a GW motor gearbox.
- Ideal installation location gives minimal shading.
- Ideal force transfer onto column.
- Very high ventilation capacity.
- Fast and efficient installation of insect screens.
- Suitable for prefabricated drive shafts.
- Highly suitable for heavy load (15000 N).
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.400.26.KW | GW10 2.6 3ph 400V with CW+CH 10B z16 | 100 / 80 | 2,6 / 3,1 | 168 | 124 | 0,09 / 0,11 | 0,4 / 0,4 | 0,7 / 0,7 | 21 |
2 P.GW10.3.400.26.KW 11 GW10 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.52.KW | GW10 5.2 3ph 400V with CW+CH 10B z16 | 100 / 80 | 5,2 / 6,2 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 24 |
2 P.GW10.3.400.52.KW 11 GW10 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW100.400.26.KW | GW100 2.6 3ph 400V with CW+CH 12B z18 | 1000 / 800 | 2,6 / 3,1 | 242 | 159 | 0,75 / 0,90 | 2,2 / 2,2 | 3,8 / 3,8 | 38 |
2 P.GW100.400.26.KW 11 GW100 2.6 3ph 400V with CW+CH 12B z18 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW100.400.26.KW_2D.gif 17 16 10 |
Article number
Description
GW10 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29
Article number
Description
GW80 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
218
D [mm]
159
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
31
Article number
Description
GW80 4.0 3ph 400V with CW+CH 10B z16 d25
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,0 / 2,0
I (@ Δ) (50/60Hz) [A]
3,5 / 3,5
m [kg]
38
Article number
Description
GW100 2.6 3ph 400V with CW+CH 12B z18
T (50/60Hz) [Nm]
1000 / 800
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,2 / 2,2
I (@ Δ) (50/60Hz) [A]
3,8 / 3,8
m [kg]
38
Rack box
| Article | Description | F [N] | T [Nm] | i [-] | L [mm] | S [mm] | s [mm/rev] | n [rev] | m [kg] |
| P.THG76RK.1.S0750 | THG76RK 15kN m4, L1250 S0750mm | 15000 | 60,50 | 6,000 | 1250 | 750 | 23 | 33 | 12,9 |
 2 P.THG76RK.1.S0750 11 THG76RK 15kN m4, L1250 S0750mm 12 13 P.THG76RK.1.S0000 - dicht.jpg 14 15 CAT_P.THG76RK.1.S0000_2D.gif 16 17 10 | |||||||||
| P.THG76RK.1.S0900 | THG76RK 15kN m4, L1400 S0900mm | 15000 | 60,50 | 6,000 | 1400 | 900 | 23 | 39 | 13,6 |
2 P.THG76RK.1.S0900 11 THG76RK 15kN m4, L1400 S0900mm 12 13 P.THG76RK.1.S0000 - dicht.jpg 14 15 CAT_P.THG76RK.1.S0000_2D.gif 16 17 10 | |||||||||
| P.THG76RK.1.S1050 | THG76RK 15kN m4, L1550 S1050mm | 15000 | 60,50 | 6,000 | 1550 | 1050 | 23 | 48 | 14,4 |
2 P.THG76RK.1.S1050 11 THG76RK 15kN m4, L1550 S1050mm 12 13 P.THG76RK.1.S0000 - dicht.jpg 14 15 CAT_P.THG76RK.1.S0000_2D.gif 16 17 10 |
Article number
Description
THG76RK 15kN m4, L1250 S0750mm
F [N]
15000
T [Nm]
60,50
i [-]
6,000
L [mm]
1250
S [mm]
750
s [mm/rev]
23
n [rev]
33
m [kg]
12,9
Article number
Description
THG76RK 15kN m4, L1400 S0900mm
F [N]
15000
T [Nm]
60,50
i [-]
6,000
L [mm]
1400
S [mm]
900
s [mm/rev]
23
n [rev]
39
m [kg]
13,6
Article number
Description
THG76RK 15kN m4, L1550 S1050mm
F [N]
15000
T [Nm]
60,50
i [-]
6,000
L [mm]
1550
S [mm]
1050
s [mm/rev]
23
n [rev]
48
m [kg]
14,4
Coupling set
| Article | Description | D [mm] | B [mm] | m [kg] |
| P.SKP.D32.B25 | Coupling set D32 for THG76 rack | 32 | 25 | 0,2 |
Coupling set fastener
| Article | Description | B [mm] | m [kg] |
| P.SKP.BVM.25 | BVM coupling set - THG76 rack | 40 | 0,03 |
Locking
| Article | Description | m [kg] |
| P.ABR.24 | Shaft locking ring 24 DIN6799 EZ | 0,01 |
Weld sprockets
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.LKWL10B.Z16.D125 | Weld sprocket 10B z16 - 5/4" | 10B z16 | D125 | 420 | 43 | 96 | 30 | 0,4 |
2 P.LKWL10B.Z16.D125 11 Weld sprocket 10B z16 - 5/4" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D125_2D.gif 17 10 |
Article number
Description
Weld sprocket 10B z16 - 5/4"
Chain
10B z16
Shaft
D125
Tmax [Nm]
420
Db [mm]
43
D [mm]
96
L [mm]
30
m [kg]
0,4
Chains
| Article | Description | Tmax [Nm] | D [mm] | m [kg] |
| P.KTG10B-2.Z16 | Chain 10B z16 | 420 | 96 | 0,5 |
| P.KTG12B-2.Z18 | Chain 12B z18 | 760 | 126 | 0,8 |
Sleeve joint coupling prefab
| Article | Description | Db [mm] | Type | m [kg] |
| P.SLKP125.ZK | Prefab sleeve joint coupling 5/4" - ZK | 42,4 | ZK | 0,2 |
Article number
Description
Prefab sleeve joint coupling 5/4" - ZK
Db [mm]
42,4
Type
ZK
m [kg]
0,2
Sprockets on THG76RK
| Article | Description | Chain | Shaft | Tmax [Nm] | D2 [mm] | L [mm] | m [kg] |
| P.KWL10B.Z16.ZK | Sleeve sprocket 10B z16 - ZK | 10B z16 | ZK | 420 | 96 | 30 | 0,6 |
2 P.KWL10B.Z16.ZK 11 Sleeve sprocket 10B z16 - ZK 12 13 P.KWL10B.Z16.ZK.jpg 14 15 CAT_P.KWL10B.Z16.ZK_2D.gif 10 |
Article number
Description
Sleeve sprocket 10B z16 - ZK
Chain
10B z16
Shaft
ZK
Tmax [Nm]
420
D2 [mm]
96
L [mm]
30
m [kg]
0,6
Drive systems for ventilation
Rapidly varying weather conditions are the order of the day. The need for good, accurate ventilation systems and airtightness in larger production greenhouses is becoming increasingly important. New cultivation requires insights for less, accurate and metered ventilation in combination with more screens with the aim of keeping as much heat and moisture as possible in the greenhouse to save energy. To achieve an optimal climate through optimal ventilation, our drives are essential for optimal results.
De Gier Drive Systems
+ 31 174 29 20 89
