Side wall ventilation telescopic
Side wall ventilation GXP10 with Dacron strap
Side wall ventilation GXP10 with counterweight

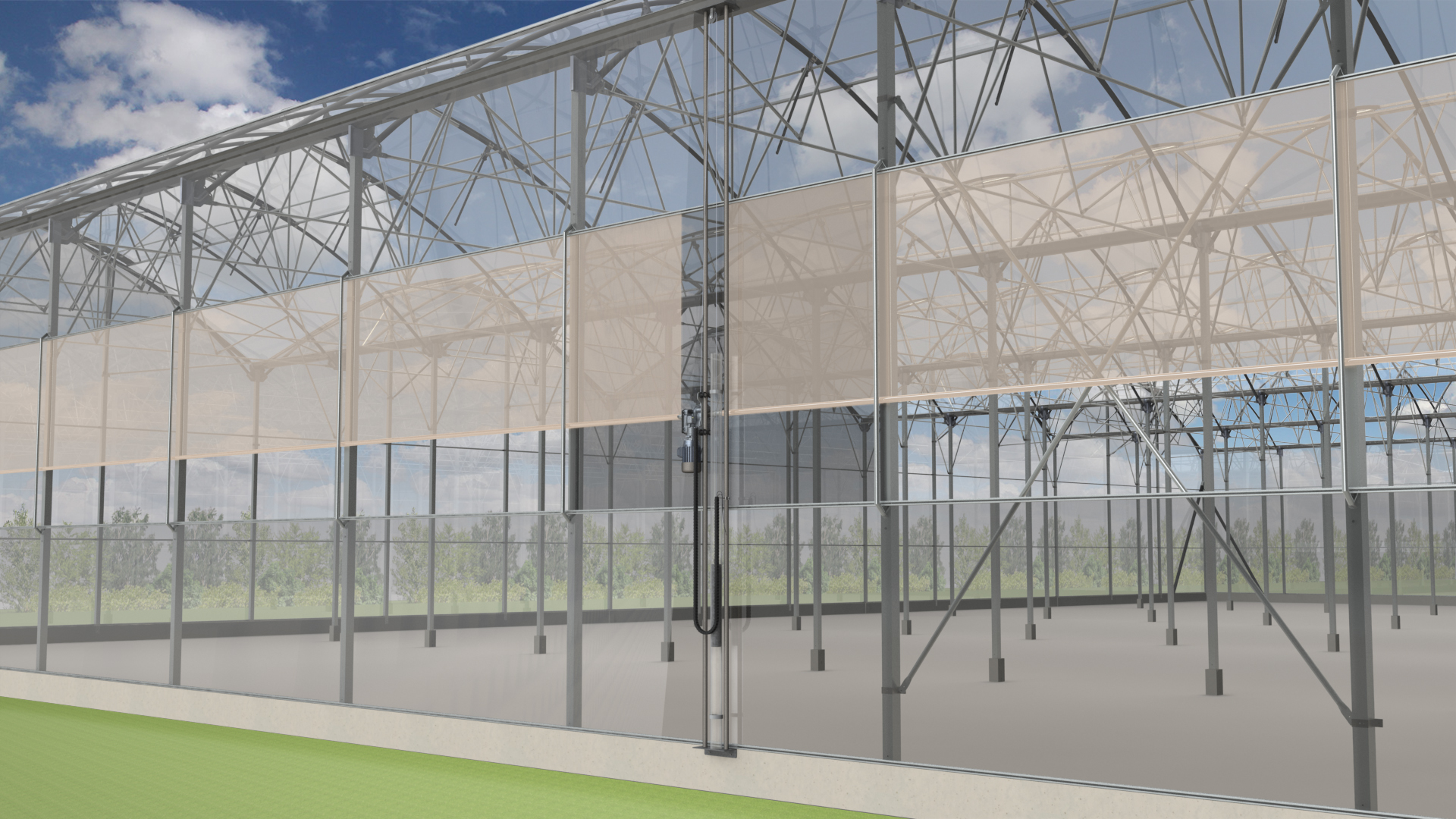

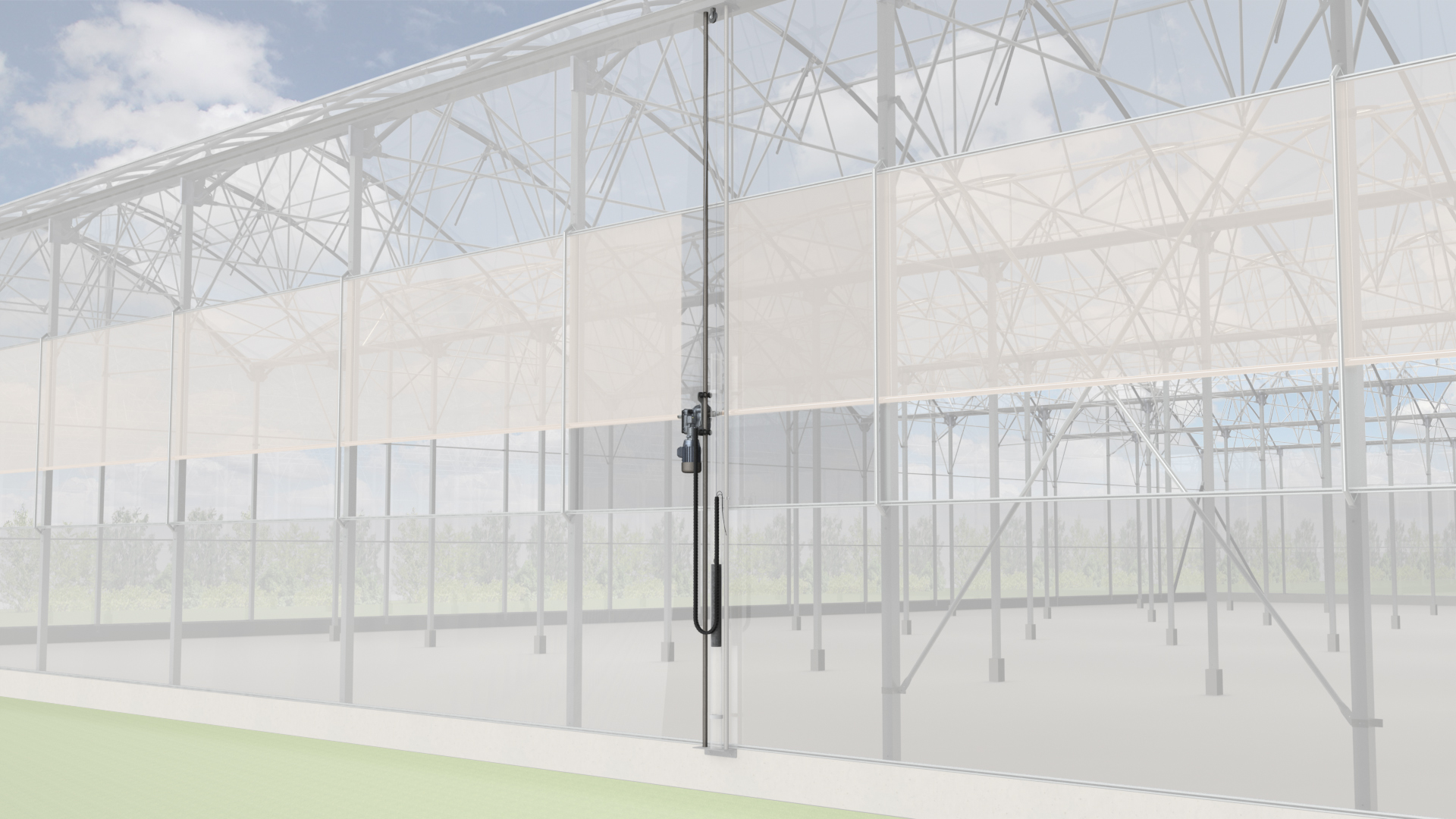

Side wall ventilation GWM with counterweight
●
●
HomeDrive SystemsDrive systems for poly greenhousesDrive systems for ventilationWinding ventilation

Side wall ventilation telescopic

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

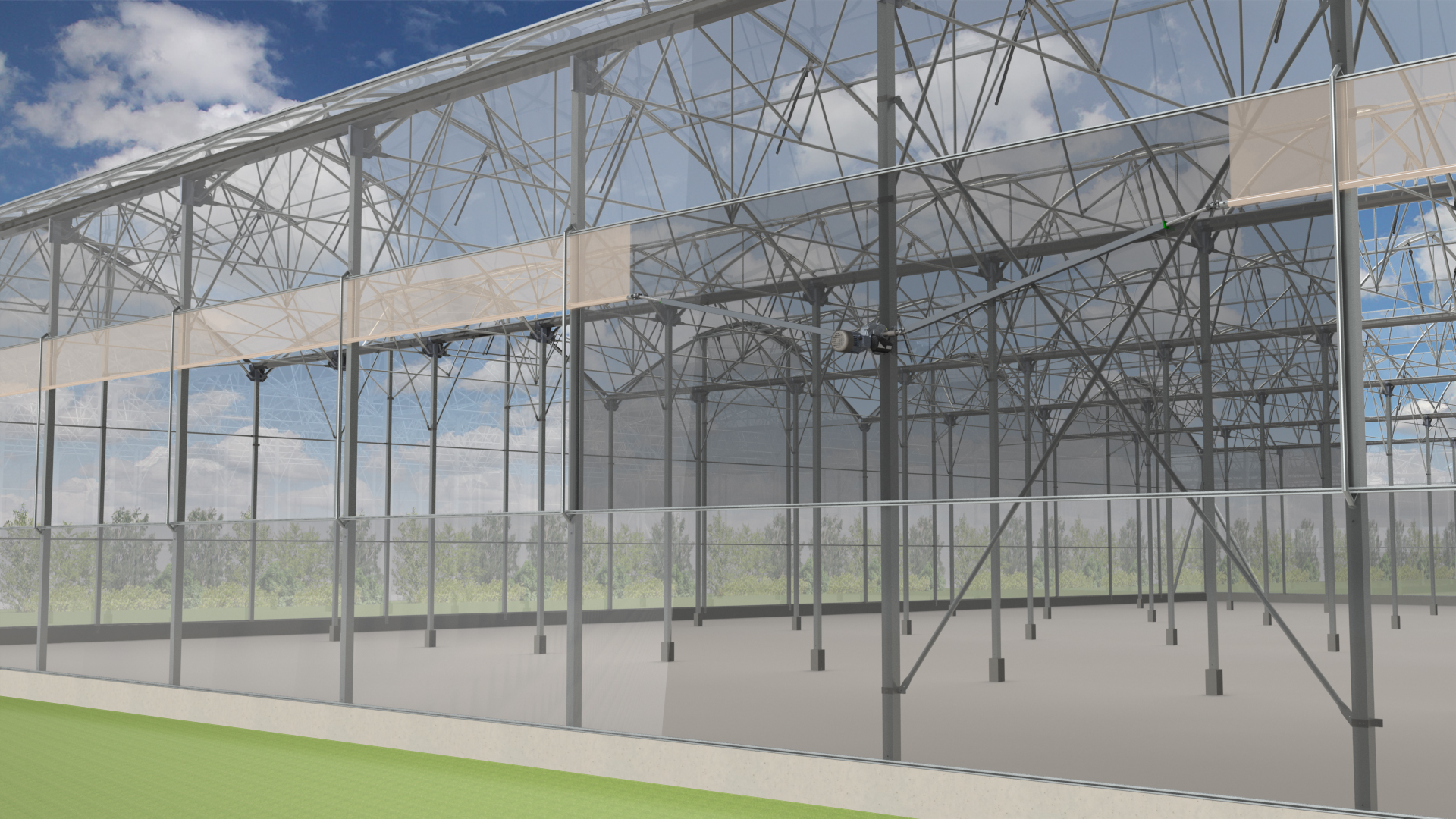

Side wall ventilation is a natural form of ventilation. In this case, the film is mounted on the side wall of the greenhouse on a winding tube. Powered by a fixed motor gearbox with one or two telescopic arms attached, almost the entire side wall can be opened. In this way, ventilation can be further optimised.

  • Maximum ventilation opening.
  • Middle or head-end mounting.
  • Very powerful, up to large winding length.
  • Minimal number of components.
  • Motor gearbox very easy to install.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW10.3.400.52.KGW10 5.2 3ph 400V 100 / 805,2 / 6,21911240,18 / 0,220,7 / 0,71,2 / 1,224
P.GW30.400.52.KGW30 5.2 3ph 400V 300 / 2405,2 / 6,22201450,37 / 0,441,2 / 1,22,1 / 2,127
Article number
P.GW10.3.400.52.K
Description
GW10 5.2 3ph 400V
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
P.GW30.400.52.K
Description
GW30 5.2 3ph 400V
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27

GWM motor gearbox

ArticleDescriptionT (50/60Hz) Nmn (50/60Hz) [rpm]i [-]s [-]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GWM15.1.400.52.KGWM15 5.2 3ph 400V for CC-set150 / 1205,2 / 6,22641,50-840,25 / 0,300,8 / 1,01,4 / 1,717
P.GWM30.1.400.26.KGWM30 2.6 3ph 400V for CC-set300 / 2402,6 / 3,15050,75-420,25 / 0,300,8 / 1,01,4 / 1,717
Article number
P.GWM15.1.400.52.K
Description
GWM15 5.2 3ph 400V for CC-set
T (50/60Hz) Nm
150 / 120
n (50/60Hz) [rpm]
5,2 / 6,2
i [-]
264
s [-]
1,50-84
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 1,0
I (@ Δ) (50/60Hz) [A]
1,4 / 1,7
m [kg]
17
Article number
P.GWM30.1.400.26.K
Description
GWM30 2.6 3ph 400V for CC-set
T (50/60Hz) Nm
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
i [-]
505
s [-]
0,75-42
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 1,0
I (@ Δ) (50/60Hz) [A]
1,4 / 1,7
m [kg]
17

Mounting plate GW straight

ArticleArticle nameA [mm]L [mm]m [kg]
P.MP.GW.R.A163Mounting plate GW straight A163 L1741631741,2
Article number
P.MP.GW.R.A163
Article name
Mounting plate GW straight A163 L174
A [mm]
163
L [mm]
174
m [kg]
1,2

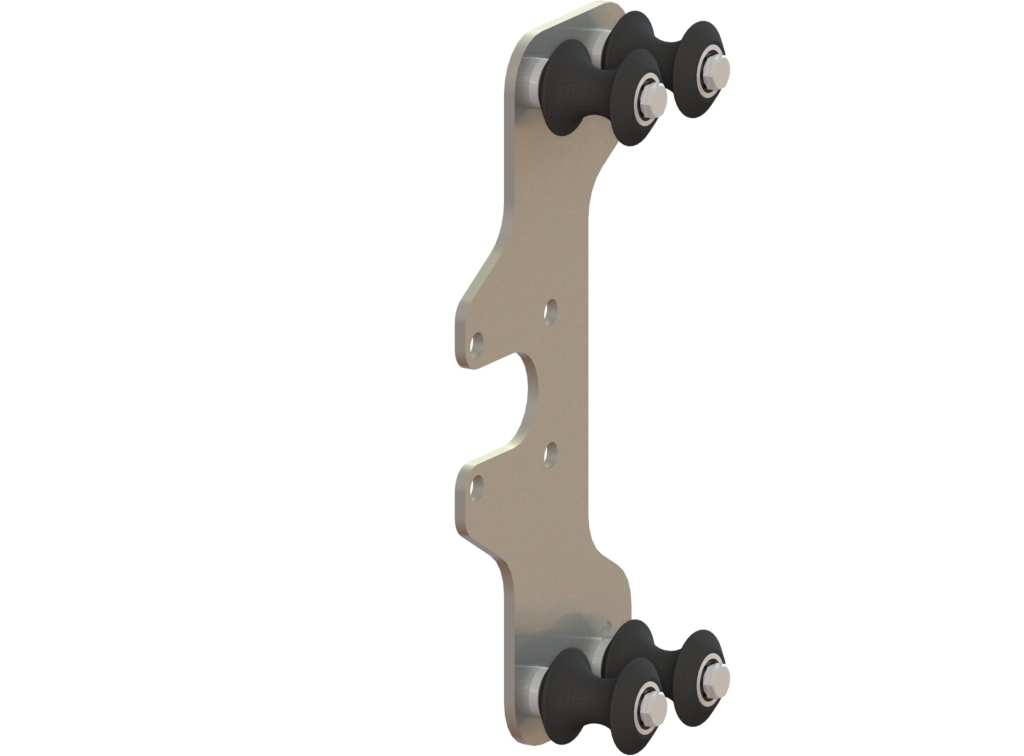

Mounting plate GWM

ArticleArticle nameA [mm]L [mm]m [kg]
P.MP.GWM.R.A163Mounting plate GWM straight A163 L2041632040,9
Article number
P.MP.GWM.R.A163
Article name
Mounting plate GWM straight A163 L204
A [mm]
163
L [mm]
204
m [kg]
0,9

Telescopic arm coupling piece

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]L3 [mm]L4 [mm]m [kg]
P.KS.TSP.D20.D18Coupling piece telescopic arm GW10183226527100,3
P.KS.TSP.D20.D25Coupling piece telescopic arm GW30254241557,5200,5
Article number
P.KS.TSP.D20.D18
Description
Coupling piece telescopic arm GW10
D1 [mm]
18
D2 [mm]
32
L1 [mm]
26
L2 [mm]
52
L3 [mm]
7
L4 [mm]
10
m [kg]
0,3
Article number
P.KS.TSP.D20.D25
Description
Coupling piece telescopic arm GW30
D1 [mm]
25
D2 [mm]
42
L1 [mm]
41
L2 [mm]
55
L3 [mm]
7,5
L4 [mm]
20
m [kg]
0,5

Telescopic arm

ArticleDescriptionL [mm]H [mm]T [Nm]m [kg]
P.TSP40.H1400TSP40 telescopic arm for height 1.4m14001408405
P.TSP40.H1800TSP40 telescopic arm for height 1.8m18001808406
P.TSP40.H2000TSP40 telescopic arm for height 2.0m20002008406
P.TSP40.H2500TSP40 telescopic arm for height 2.5m25002508407
P.TSP40.H3300TSP40 telescopic arm for height 3.3m33003308409
P.TSP40.H4000TSP40 telescopic arm for height 4.0m400040084011
Article number
P.TSP40.H1400
Description
TSP40 telescopic arm for height 1.4m
L [mm]
1400
H [mm]
1408
T [Nm]
40
m [kg]
5
Article number
P.TSP40.H1800
Description
TSP40 telescopic arm for height 1.8m
L [mm]
1800
H [mm]
1808
T [Nm]
40
m [kg]
6
Article number
P.TSP40.H2000
Description
TSP40 telescopic arm for height 2.0m
L [mm]
2000
H [mm]
2008
T [Nm]
40
m [kg]
6
Article number
P.TSP40.H2500
Description
TSP40 telescopic arm for height 2.5m
L [mm]
2500
H [mm]
2508
T [Nm]
40
m [kg]
7
Article number
P.TSP40.H3300
Description
TSP40 telescopic arm for height 3.3m
L [mm]
3300
H [mm]
3308
T [Nm]
40
m [kg]
9
Article number
P.TSP40.H4000
Description
TSP40 telescopic arm for height 4.0m
L [mm]
4000
H [mm]
4008
T [Nm]
40
m [kg]
11

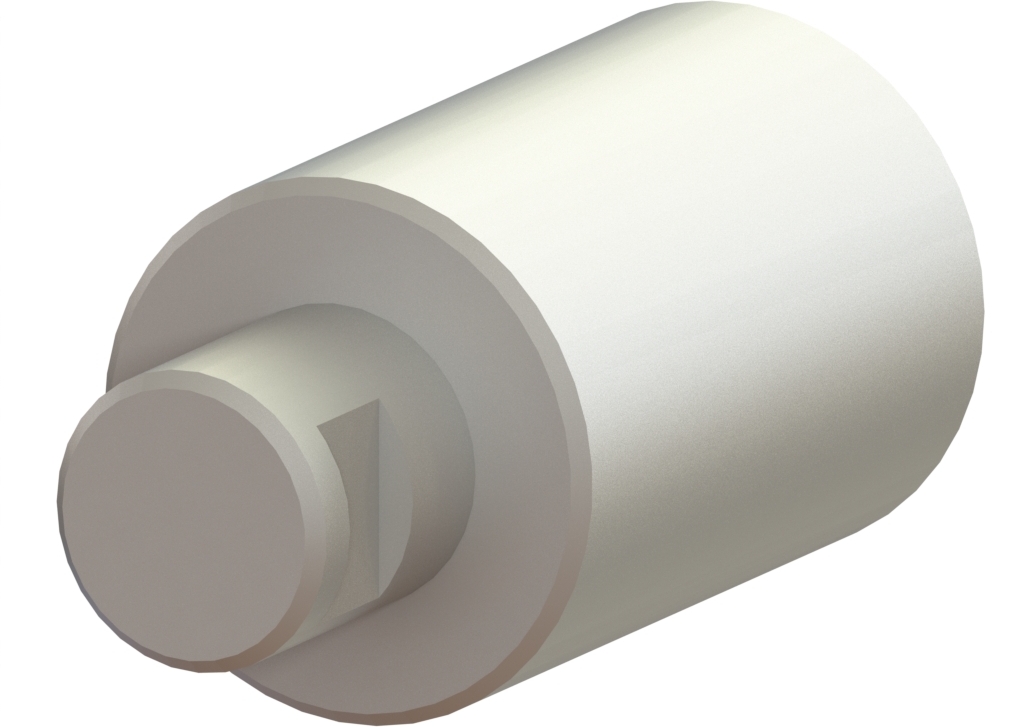

Weld joint

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]m [kg]
P.LT100.021" Weld joint for univ.joint with hole Ø9272072520,3
Article number
P.LT100.02
Description
1" Weld joint for univ.joint with hole Ø9
D1 [mm]
27
D2 [mm]
20
L1 [mm]
72
L2 [mm]
52
m [kg]
0,3

Coupling to tube

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]L3 [mm]m [kg]
P.KBS50.02.TSPCoupling piece telescopic arm Tube Ø50 mm205015120610,7
Article number
P.KBS50.02.TSP
Description
Coupling piece telescopic arm Tube Ø50 mm
D1 [mm]
20
D2 [mm]
50
L1 [mm]
151
L2 [mm]
20
L3 [mm]
61
m [kg]
0,7

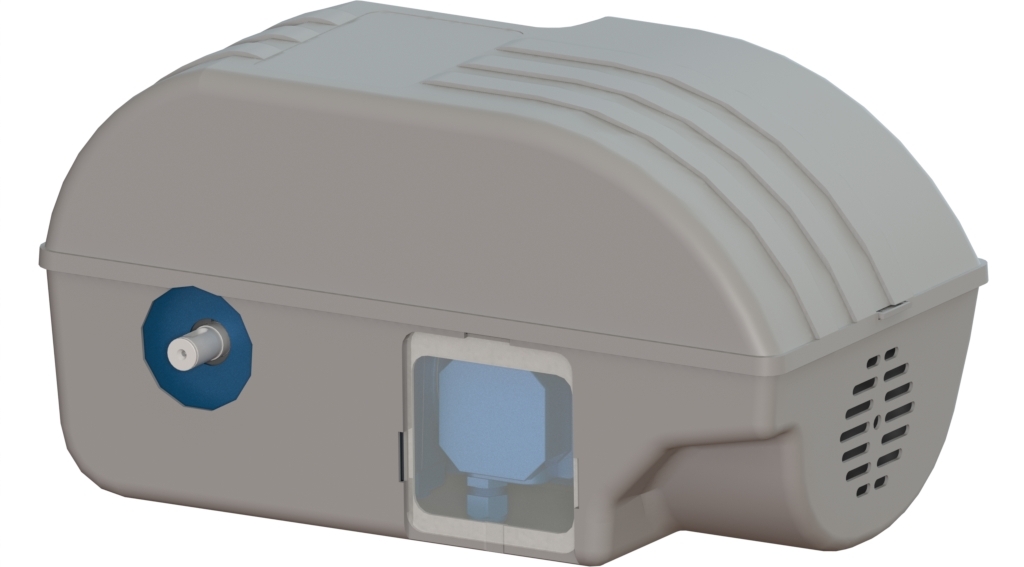

Cover for GW10

ArticleDescriptionm [kg]
P.BHZ.01.GW10GW10 enclosure grey with bolts1,4
Article number
P.BHZ.01.GW10
Description
GW10 enclosure grey with bolts
m [kg]
1,4

Drive systems for ventilation

Controlled ventilation is a must for an optimal climate in poly greenhouses. Ventilation is realised by means of continuous windows in the ridge of the greenhouse or by roll-up walls. We have the knowledge, expertise and extensive product range to contribute to an optimal climate for the best results.

Continuous ridge ventilation direct
Continuous ridge ventilation direct
Continuous ridge ventilation indirect
Continuous ridge ventilation indirect
Winding ventilation
Winding ventilation
●
●
HomeDrive SystemsDrive systems for poly greenhousesDrive systems for ventilationWinding ventilation

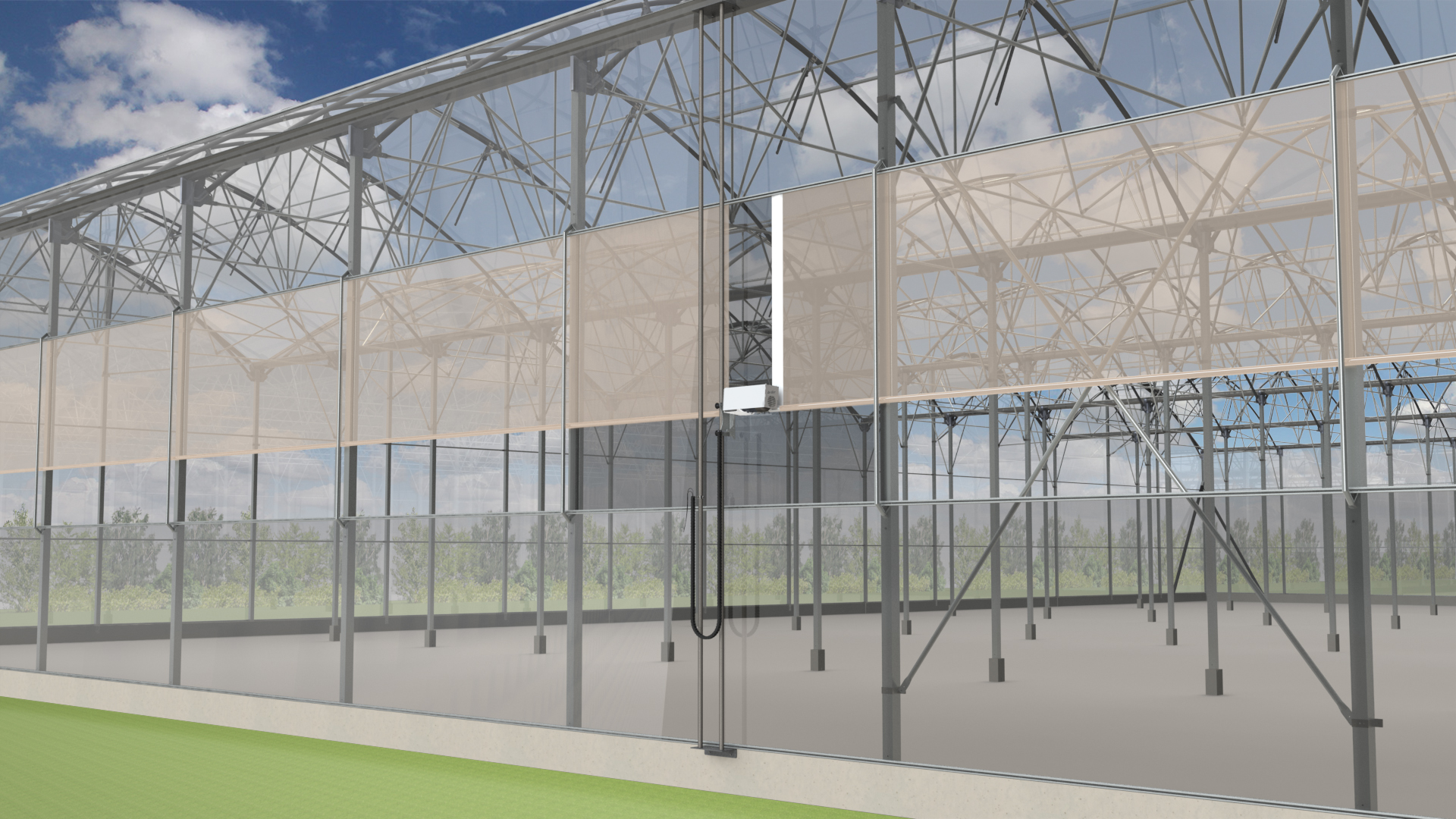

Side wall ventilation GXP10 with Dacron strap

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Side wall ventilation is a natural form of ventilation in which the film is mounted on the side wall of the greenhouse on a winding tube. Opening of the entire wall is possible via a GXP10 motor gearbox mounted on a guide tube. The plastic band that is wrapped and not stretchable bears the weight of the motor gearbox. In this way, ventilation is optimised.

  • Maximum ventilation opening, minimum installation space.
  • Optimally dimensioned with the GXP10.
  • Maximum transmission even with single-ended winding tube mounting.
  • Taut film for durability.
  • Dacron strap for neat film winding.
  • Very easy installation.

GXP10 motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]P (50/60Hz) [kW]I (@ Δ) (50/60Hz) [A]I (@ Y) (50/60Hz) [A]m [kg]
P.GXP10.400.40.KBS.TGXP10-4.0 400V 3~ 50Hz for KBS Trop.iso100 / 804,0 / 4,80,18 / 0,221,2 / 1,20,7 / 0,711
Article number
P.GXP10.400.40.KBS.T
Description
GXP10-4.0 400V 3~ 50Hz for KBS Trop.iso
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
4,0 / 4,8
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
m [kg]
11

Cover for GXP10

ArticleDescriptionL [mm]D [mm]m [kg]
P.BHZ.01.GXP10GXP10 enclosure aluminium550551,0
Article number
P.BHZ.01.GXP10
Description
GXP10 enclosure aluminium
L [mm]
550
D [mm]
55
m [kg]
1,0

Couplings

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]m [kg]

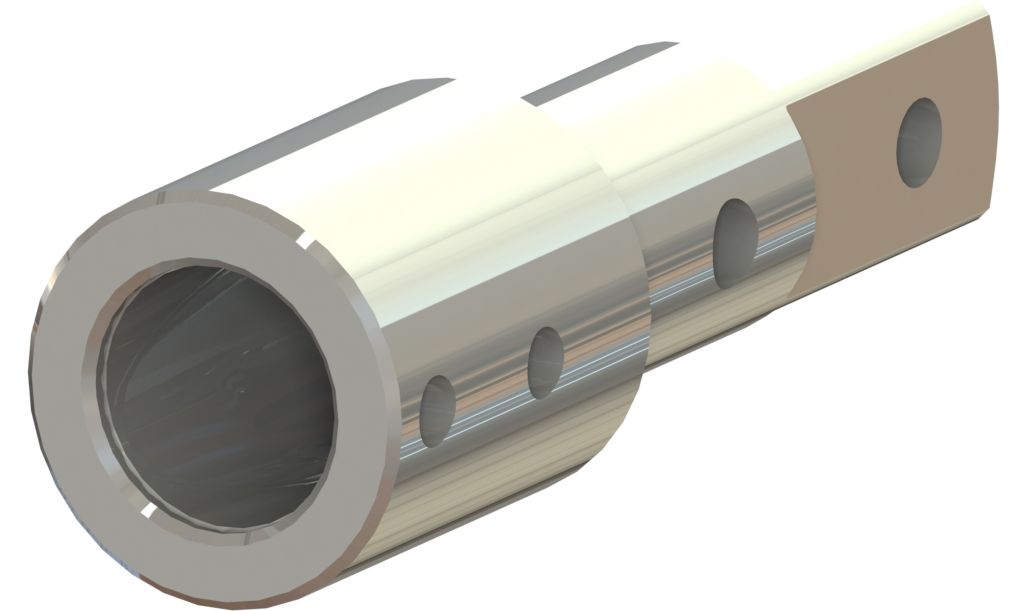

P.KBS32.01.D19Coupling bush GXP tube Ø32x1.5; 25x25x1.54019118800,6
P.KBS50.01.D19Coupling to Tube Ø50mm GXP105019105700,4
Article number
P.KBS32.01.D19
Description
Coupling bush GXP tube Ø32x1.5; 25x25x1.5
D1 [mm]
40
D2 [mm]
19
L1 [mm]
118
L2 [mm]
80
m [kg]
0,6
Article number
P.KBS50.01.D19
Description
Coupling to Tube Ø50mm GXP10
D1 [mm]
50
D2 [mm]
19
L1 [mm]
105
L2 [mm]
70
m [kg]
0,4

Mounting bracket

ArticleDescriptionm [kg]
P.BL.02.GXP10GXP lower guide mounting bracket0,4
P.BL.04.GXP10GXP10 upper guide mounting bracket0,4
Article number
P.BL.02.GXP10
Description
GXP lower guide mounting bracket
m [kg]
0,4
Article number
P.BL.04.GXP10
Description
GXP10 upper guide mounting bracket
m [kg]
0,4

Power and control cable

ArticleDescriptionP max [W]
P.KAB.4.075Cable 4x0,75mm² GXP per meter (Power)1380
P.KAB.7.05Cable (steering control) 7x0,5mm² 1m-
Article number
P.KAB.4.075
Description
Cable 4x0,75mm² GXP per meter (Power)
P max [W]
1380
Article number
P.KAB.7.05
Description
Cable (steering control) 7x0,5mm² 1m
P max [W]
-

Cable chain GXP10 with mounting set

ArticleDescriptionL [m]m [kg]
P.KRP.15.16.30Cable chain GXP 15x16mm 3.0 m + mounting set3,00,8
Article number
P.KRP.15.16.30
Description
Cable chain GXP 15x16mm 3.0 m + mounting set
L [m]
3,0
m [kg]
0,8

Dacron strap

ArticleDescriptionL [m]m [kg]
P.B10.03Dacron strap without string 0.1 x 3 metre30,1
P.B10.05Dacron strap without string 0.1 x 5 metre50,1
P.B10P.03Dacron strap with string 0.1 x 3 metre30,1
P.B10P.05Dacron strap with string 0.1 x 5 metre50,1
Article number
P.B10.03
Description
Dacron strap without string 0.1 x 3 metre
L [m]
3
m [kg]
0,1
Article number
P.B10.05
Description
Dacron strap without string 0.1 x 5 metre
L [m]
5
m [kg]
0,1
Article number
P.B10P.03
Description
Dacron strap with string 0.1 x 3 metre
L [m]
3
m [kg]
0,1
Article number
P.B10P.05
Description
Dacron strap with string 0.1 x 5 metre
L [m]
5
m [kg]
0,1

Drive systems for ventilation

Controlled ventilation is a must for an optimal climate in poly greenhouses. Ventilation is realised by means of continuous windows in the ridge of the greenhouse or by roll-up walls. We have the knowledge, expertise and extensive product range to contribute to an optimal climate for the best results.

Continuous ridge ventilation direct
Continuous ridge ventilation direct
Continuous ridge ventilation indirect
Continuous ridge ventilation indirect
Winding ventilation
Winding ventilation
●
●
HomeDrive SystemsDrive systems for poly greenhousesDrive systems for ventilationWinding ventilation

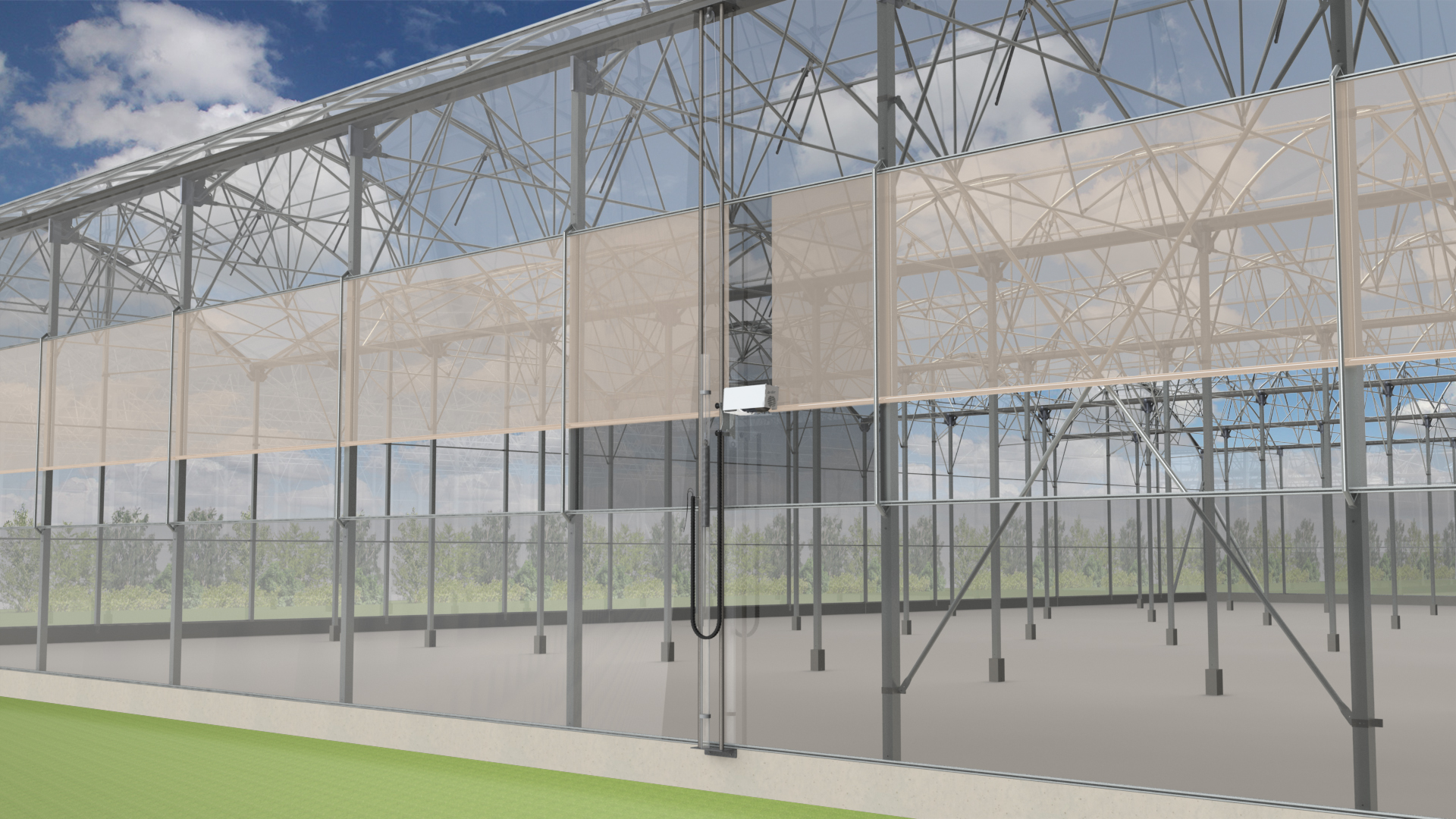

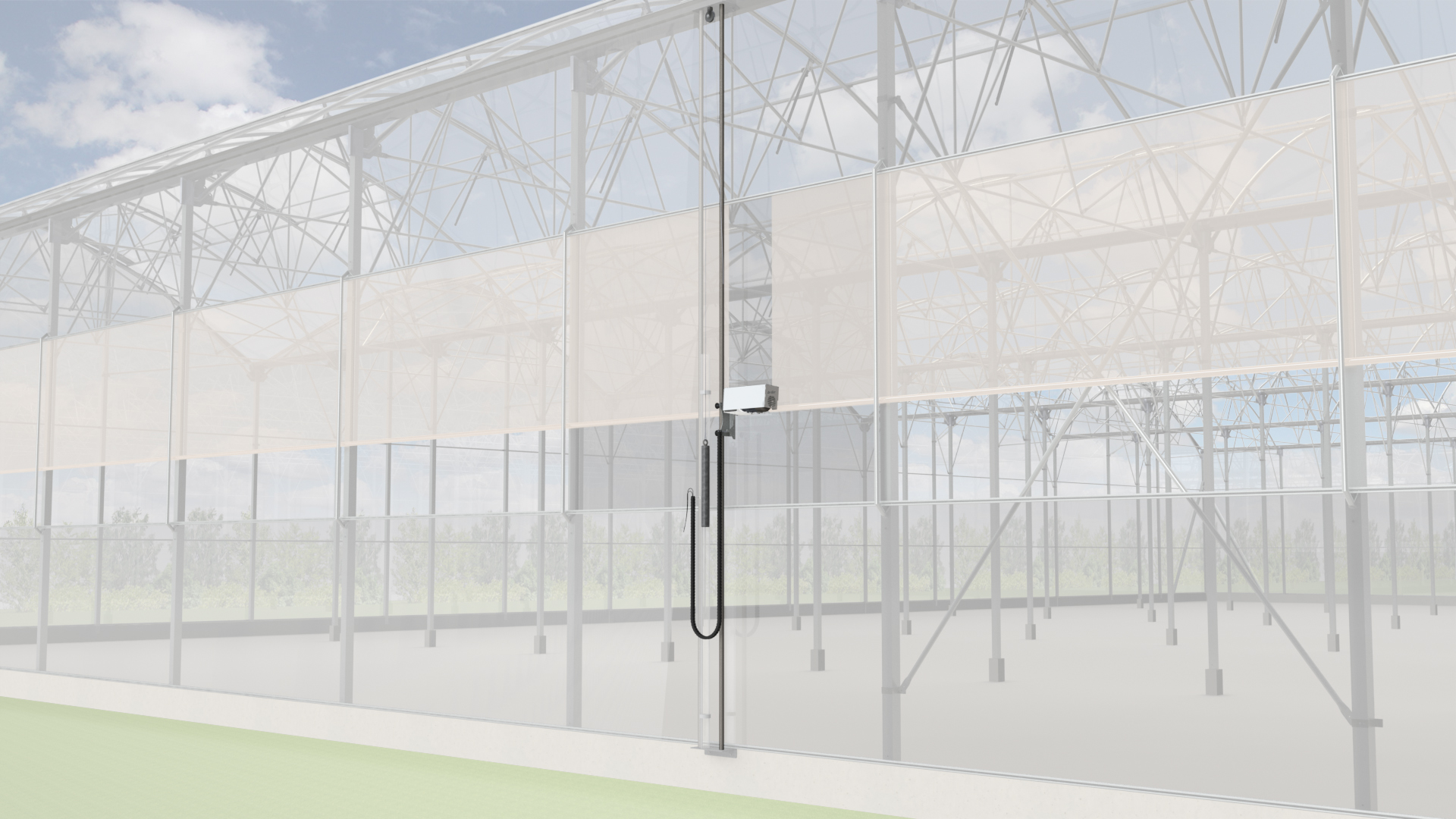

Side wall ventilation GXP10 with counterweight

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Side wall ventilation is a natural form of ventilation. In this case, the film is mounted on the side wall of the greenhouse on a winding tube. Powered by a guide tube mounted GXP10 motor gearbox, almost the entire side wall can be opened. A counterweight compensates for the weight of the motor gearbox. In this way, ventilation can be further optimised.

  • Maximum ventilation opening, minimum installation space.
  • Optimally dimensioned with the GXP10.
  • Maximum transmission even with single-ended winding tube mounting.
  • Taut film for durability.
  • Counterweight for neat film winding.
  • Very easy installation.

GXP10 motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]P (50/60Hz) [kW]I (@ Δ) (50/60Hz) [A]I (@ Y) (50/60Hz) [A]m [kg]
P.GXP10.400.40.KBS.TGXP10-4.0 400V 3~ 50Hz for KBS Trop.iso100 / 804,0 / 4,80,18 / 0,221,2 / 1,20,7 / 0,711
Article number
P.GXP10.400.40.KBS.T
Description
GXP10-4.0 400V 3~ 50Hz for KBS Trop.iso
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
4,0 / 4,8
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
m [kg]
11

Cover for GXP10

ArticleDescriptionL [mm]D [mm]m [kg]
P.BHZ.01.GXP10GXP10 enclosure aluminium550551,0
Article number
P.BHZ.01.GXP10
Description
GXP10 enclosure aluminium
L [mm]
550
D [mm]
55
m [kg]
1,0

Couplings

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]m [kg]
P.KBS32.01.D19Coupling bush GXP tube Ø32x1.5; 25x25x1.54019118800,6
P.KBS50.01.D19Coupling to Tube Ø50mm GXP105019105700,4
P.KBS50.02.D19Coupling to Tube Ø50 Twinrol GXP105019100700,3
Article number
P.KBS32.01.D19
Description
Coupling bush GXP tube Ø32x1.5; 25x25x1.5
D1 [mm]
40
D2 [mm]
19
L1 [mm]
118
L2 [mm]
80
m [kg]
0,6
Article number
P.KBS50.01.D19
Description
Coupling to Tube Ø50mm GXP10
D1 [mm]
50
D2 [mm]
19
L1 [mm]
105
L2 [mm]
70
m [kg]
0,4
Article number
P.KBS50.02.D19
Description
Coupling to Tube Ø50 Twinrol GXP10
D1 [mm]
50
D2 [mm]
19
L1 [mm]
100
L2 [mm]
70
m [kg]
0,3

Mounting bracket

ArticleDescriptionm [kg]
P.BL.02.GXP10GXP lower guide mounting bracket0,4
P.BL.04.GXP10GXP10 upper guide mounting bracket0,4
Article number
P.BL.02.GXP10
Description
GXP lower guide mounting bracket
m [kg]
0,4
Article number
P.BL.04.GXP10
Description
GXP10 upper guide mounting bracket
m [kg]
0,4

Power and control cable

ArticleDescriptionP max [W]
P.KAB.4.075Cable 4x0,75mm² GXP per meter (Power)1380
P.KAB.7.05Cable (steering control) 7x0,5mm² 1m-
Article number
P.KAB.4.075
Description
Cable 4x0,75mm² GXP per meter (Power)
P max [W]
1380
Article number
P.KAB.7.05
Description
Cable (steering control) 7x0,5mm² 1m
P max [W]
-

Cable chain GXP10 with mounting set

ArticleDescriptionL [m]m [kg]
P.KRP.15.16.30Cable chain GXP 15x16mm 3.0 m + mounting set3,00,8
Article number
P.KRP.15.16.30
Description
Cable chain GXP 15x16mm 3.0 m + mounting set
L [m]
3,0
m [kg]
0,8

Counterweight

ArticleDescriptionL [mm]D [mm]m [kg]
P.CONTRA.GXP10.01Contra gewicht GXP10 Ø55mm 10kg5505510
Article number
P.CONTRA.GXP10.01
Description
Contra gewicht GXP10 Ø55mm 10kg
L [mm]
550
D [mm]
55
m [kg]
10

Drive systems for ventilation

Controlled ventilation is a must for an optimal climate in poly greenhouses. Ventilation is realised by means of continuous windows in the ridge of the greenhouse or by roll-up walls. We have the knowledge, expertise and extensive product range to contribute to an optimal climate for the best results.

Continuous ridge ventilation direct
Continuous ridge ventilation direct
Continuous ridge ventilation indirect
Continuous ridge ventilation indirect
Winding ventilation
Winding ventilation
●
●
HomeDrive SystemsDrive systems for poly greenhousesDrive systems for ventilationWinding ventilation

Side wall ventilation GWM with counterweight

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Side wall ventilation is a natural form of ventilation. In this case, the film is mounted on the side wall of the greenhouse on a winding tube. Driven by a guide tube mounted motor gearbox, almost the entire side wall can be opened. A counterweight compensates for the weight of the motor gearbox. In this way, ventilation can be further optimised.

  • Maximum ventilation opening, minimum installation space.
  • Optimally dimensioned with the GWM.
  • Maximum force transmission with middle mounting.
  • Taut film for durability.
  • Counterweight for neat film winding.
  • Very easy installation.

GWM motor gearbox

ArticleDescriptionT (50/60Hz) Nmn (50/60Hz) [rpm]i [-]s [-]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GWM30.1.400.26.KGWM30 2.6 3ph 400V for CC-set300 / 2402,6 / 3,15050,75-420,25 / 0,300,8 / 1,01,4 / 1,717
P.GWM45.1.400.26.KGWM45 2.6 3ph 400V for CC-set450 / 3602,6 / 3,15050,75-420,37 / 0,441,0 / 1,21,7 / 2,117
Article number
P.GWM30.1.400.26.K
Description
GWM30 2.6 3ph 400V for CC-set
T (50/60Hz) Nm
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
i [-]
505
s [-]
0,75-42
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 1,0
I (@ Δ) (50/60Hz) [A]
1,4 / 1,7
m [kg]
17
Article number
P.GWM45.1.400.26.K
Description
GWM45 2.6 3ph 400V for CC-set
T (50/60Hz) Nm
450 / 360
n (50/60Hz) [rpm]
2,6 / 3,1
i [-]
505
s [-]
0,75-42
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,2
I (@ Δ) (50/60Hz) [A]
1,7 / 2,1
m [kg]
17

Couplings

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]m [kg]
P.KBS32.01.D25Coupling to tube Ø32x1.5, D252825128800,6
P.KBS50.02.D25Coupling to tube Ø50 Twin GW30/GW805025120700,5
Article number
P.KBS32.01.D25
Description
Coupling to tube Ø32x1.5, D25
D1 [mm]
28
D2 [mm]
25
L1 [mm]
128
L2 [mm]
80
m [kg]
0,6
Article number
P.KBS50.02.D25
Description
Coupling to tube Ø50 Twin GW30/GW80
D1 [mm]
50
D2 [mm]
25
L1 [mm]
120
L2 [mm]
70
m [kg]
0,5

Roller bracket

ArticleDescriptionL [mm]B [mm]H [mm]D [mm]m [kg]
P.BL.R.GWM.01GWM Roller bracket for tube Ø32/1"3001357032/33.71,4
Article number
P.BL.R.GWM.01
Description
GWM Roller bracket for tube Ø32/1"
L [mm]
300
B [mm]
135
H [mm]
70
D [mm]
32/33.7
m [kg]
1,4

Mounting bracket

ArticleDescriptionm [kg]
P.BL.02.GXP10GXP lower guide mounting bracket0,4
P.BL.04.GXP10GXP10 upper guide mounting bracket0,4
Article number
P.BL.02.GXP10
Description
GXP lower guide mounting bracket
m [kg]
0,4
Article number
P.BL.04.GXP10
Description
GXP10 upper guide mounting bracket
m [kg]
0,4

Power and control cable

ArticleDescriptionP max [W]
P.KAB.4.075Cable 4x0,75mm² GXP per meter (Power)1380
P.KAB.7.05Cable (steering control) 7x0,5mm² 1m-
Article number
P.KAB.4.075
Description
Cable 4x0,75mm² GXP per meter (Power)
P max [W]
1380
Article number
P.KAB.7.05
Description
Cable (steering control) 7x0,5mm² 1m
P max [W]
-

Cable chain GXP10 with mounting set

ArticleDescriptionL [m]m [kg]
P.KRP.15.16.30Cable chain GXP 15x16mm 3.0 m + mounting set3,00,8
Article number
P.KRP.15.16.30
Description
Cable chain GXP 15x16mm 3.0 m + mounting set
L [m]
3,0
m [kg]
0,8

Counterweight

ArticleDescriptionL [mm]D [mm]m [kg]
P.CONTRA.GWM.01Contra gewicht Ø70mm GWM - 14 kg4605514
Article number
P.CONTRA.GWM.01
Description
Contra gewicht Ø70mm GWM - 14 kg
L [mm]
460
D [mm]
55
m [kg]
14

Drive systems for ventilation

Controlled ventilation is a must for an optimal climate in poly greenhouses. Ventilation is realised by means of continuous windows in the ridge of the greenhouse or by roll-up walls. We have the knowledge, expertise and extensive product range to contribute to an optimal climate for the best results.

Continuous ridge ventilation direct
Continuous ridge ventilation direct
Continuous ridge ventilation indirect
Continuous ridge ventilation indirect
Winding ventilation
Winding ventilation

De Gier Drive Systems
+ 31 174 29 20 89

Markets
HorticultureIntensive LivestockCrop StorageNon-residential buildings
Drivesystems
Glass greenhousesPoly greenhousesWide-span greenhousesNon-residential buildingsPoultryPig buildingsCow buildingsCrop storage
Products
CatalogueBrochuresDocuments
More
NewsEventsSupportJobsAbout us
Contact
De Gier Drive Systems

Westlandseweg 9
2291 PG Wateringen
Netherlands
+31 174 29 20 89
sales@degierdrivesystems.com

We use cookies just to track visits to our website, we store no personal details. We also us commercial cookies, accept them for a better user experience. Please refer to our Privacy Policy.
