Swing system for strawberry cultivation gutters
Swing system for strawberry cultivation gutters
We are happy to help you with making a calculation
- Easy harvesting thanks to optimal gutter height for workers.
- Sufficient workspace for harvest workers.
- Optimal use of the cultivation surface.
- Simple and effective drive system.
- Labour-saving.
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.400.26.KW | GW10 2.6 3ph 400V with CW+CH 10B z16 | 100 / 80 | 2,6 / 3,1 | 168 | 124 | 0,09 / 0,11 | 0,4 / 0,4 | 0,7 / 0,7 | 21 |
 2 P.GW10.3.400.26.KW 11 GW10 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.52.KW | GW10 5.2 3ph 400V with CW+CH 10B z16 | 100 / 80 | 5,2 / 6,2 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 24 |
2 P.GW10.3.400.52.KW 11 GW10 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
 2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
 2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 |
Article number
Description
GW10 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29
Article number
Description
GW80 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
218
D [mm]
159
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
31
Article number
Description
GW80 4.0 3ph 400V with CW+CH 10B z16 d25
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,0 / 2,0
I (@ Δ) (50/60Hz) [A]
3,5 / 3,5
m [kg]
38
Weld sprocket
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.LKWL10B.Z16.D100 | Weld sprocket 10B z16 - 1" and 2" | 10B z16 | D100 | 420 | 34 | 96 | 30 | 0,5 |
 2 P.LKWL10B.Z16.D100 11 Weld sprocket 10B z16 - 1" and 2" 12 13 P.LKWL10B.Z16.D100.jpg 15 16 CAT_P.LKWL10B.Z16.D100_2D.gif 17 10 |
Article number
Description
Weld sprocket 10B z16 - 1" and 2"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
30
m [kg]
0,5
Tube bolt sprocket
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.BBKWL10B.Z16.D100 | Tube bolt sprocket 10B z16 - 1" | 10B z16 | D100 | 420 | 34 | 96 | 150 | 0,8 |
 2 P.BBKWL10B.Z16.D100 11 Tube bolt sprocket 10B z16 - 1" 12 13 P.BBKWL10B.Z16.D100.jpg 15 16 CAT_P.BBKWL10B.Z16.D125_2D.gif 17 10 |
Article number
Description
Tube bolt sprocket 10B z16 - 1"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
150
m [kg]
0,8
Ball bearing plate angled
| Article | Description | A [mm] | H [mm] | D1 [mm] | d [mm] | m [kg] |
| P.KL100.H.A107 | Ball bearing plate 1" H A107 H153 | 107 | 153 | 34,5 | 3 | 0,7 |
 2 P.KL100.H.A107 11 Ball bearing plate 1" H A107 H153 12 13 P.KL000.H.A000.jpg 14 10 CAT_P.KL000.H.A000_2D.gif |
Article number
Description
Ball bearing plate 1" H A107 H153
A [mm]
107
H [mm]
153
D1 [mm]
34,5
d [mm]
3
m [kg]
0,7
Cable clamp
| Article | Description | D1 [mm] | D2 [mm] | m [kg] |
| P.KABELRING | Cable clamp 1" d36 D50 4xØ4,5 | 50 | 36 | 0,09 |
Drive systems for strawberry cultivation gutters

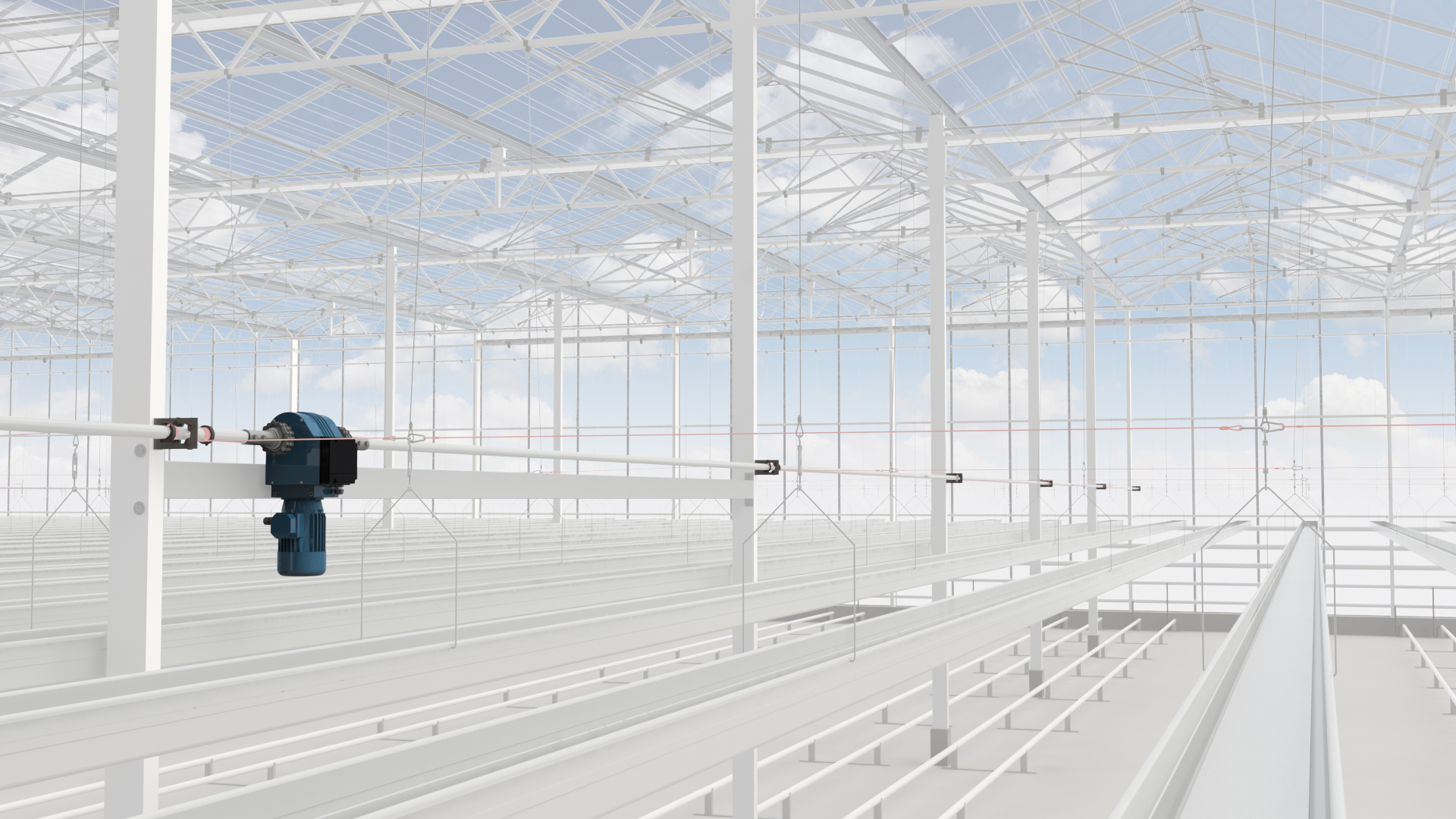

To achieve optimum utilisation of the cultivation area and optimal strawberry cultivation and working conditions during harvesting, movable cultivation gutters are the solution. For the desired growth and production, the cultivation gutters are hung at the ideal distance from each other. During harvesting, space is created between the growing gutters for the harvesting staff and harvesting trolleys. With the swing system, this is done by alternately lowering or tightening the pulling cables at half of the cultivation gutters towards the centrally positioned motor gearbox and winding shaft. In this system, the winding shaft runs in the direction of the gutter. With the high/low system, half of the cultivation gutters are alternately raised and the other half lowered with cables. When the cultivation gutters are hanging low, harvesting can take place at the optimum height. The high/low system is driven by worm gearboxes and high-speed geared motors that drive winding shafts mounted in a trellis direction. We are happy to offer you our knowledge and expertise to come up with a good drive system for strawberry growing gutters.
