High/low cultivation gutter hoisting system for strawberries
●
●
HomeDrive SystemsDrive systems for glass greenhousesDrive systems for strawberry cultivation guttersStrawberries system high/low

High/low cultivation gutter hoisting system for strawberries

How do I make a calculation?

We are happy to help you with making a calculation

Print this system (pdf)

Click here to create a PDF of the page

Download

The high/low cultivation gutter hoisting system is used in suitable VENLO and poly greenhouses. The cultivation gutters hang with brackets from steel cables mounted directly on the winding tubes. During the harvesting of the strawberries the gutters are lowered alternately to the bottom position. The system is driven by a series of coupled GWK DL type worm gearboxes which are in turn driven by a high speed GW motor gearbox.

  • Easy harvesting thanks to optimal gutter height adjustment.
  • Sufficient workspace for harvest workers.
  • Optimal use of the cultivation surface.
  • Labour-saving.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW20.400.300.KWGW20 30.0 3ph 400V with CW+CH 08B z16200 / 16030 / 362421591,50 / 1,803,4 / 4,15,9 / 7,135
Article number
P.GW20.400.300.KW
Description
GW20 30.0 3ph 400V with CW+CH 08B z16
T (50/60Hz) [Nm]
200 / 160
n (50/60Hz) [rpm]
30 / 36
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
1,50 / 1,80
I (@ Y) (50/60Hz) [A]
3,4 / 4,1
I (@ Δ) (50/60Hz) [A]
5,9 / 7,1
m [kg]
35

Worm gearbox

ArticleDescriptionTin [Nm]Nozzle [Nm]i [-]m [kg]
P.GWK240.DL.KWGWK240 worm gearbox DL with CW+CH 08B/10B z1619,52403512
P.GWK400.DL.KWGWK400 Wormkast DL with CW+CH 08/10B z1632,54003512
Article number
P.GWK240.DL.KW
Description
GWK240 worm gearbox DL with CW+CH 08B/10B z16
Tin [Nm]
19,5
Nozzle [Nm]
240
i [-]
35
m [kg]
12
Article number
P.GWK400.DL.KW
Description
GWK400 Wormkast DL with CW+CH 08/10B z16
Tin [Nm]
32,5
Nozzle [Nm]
400
i [-]
35
m [kg]
12

Weld sprocket

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.LKWL08B.Z16.D100Weld sprocket 08B z16 - 1"08B z16D1002403477270,3
P.LKWL08B.Z16.D125Weld sprocket 08B z16 - 5/4"08B z16D1252404377270,2
P.LKWL10B.Z16.D100Weld sprocket 10B z16 - 1" and 2"10B z16D1004203496300,5
Article number
P.LKWL08B.Z16.D100
Description
Weld sprocket 08B z16 - 1"
Chain
08B z16
Shaft
D100
Tmax [Nm]
240
Db [mm]
34
D [mm]
77
L [mm]
27
m [kg]
0,3
Article number
P.LKWL08B.Z16.D125
Description
Weld sprocket 08B z16 - 5/4"
Chain
08B z16
Shaft
D125
Tmax [Nm]
240
Db [mm]
43
D [mm]
77
L [mm]
27
m [kg]
0,2
Article number
P.LKWL10B.Z16.D100
Description
Weld sprocket 10B z16 - 1" and 2"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
30
m [kg]
0,5

Tube bolt sprocket

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.BBKWL08B.Z16.D100Tube bolt sprocket 08B z16 - 1"08B z16D10024034771500,5
P.BBKWL08B.Z16.D125Tube bolt sprocket 08B z16 - 5/4"08B z16D12524043771550,5
P.BBKWL10B.Z16.D100Tube bolt sprocket 10B z16 - 1"10B z16D10042034961500,8
Article number
P.BBKWL08B.Z16.D100
Description
Tube bolt sprocket 08B z16 - 1"
Chain
08B z16
Shaft
D100
Tmax [Nm]
240
Db [mm]
34
D [mm]
77
L [mm]
150
m [kg]
0,5
Article number
P.BBKWL08B.Z16.D125
Description
Tube bolt sprocket 08B z16 - 5/4"
Chain
08B z16
Shaft
D125
Tmax [Nm]
240
Db [mm]
43
D [mm]
77
L [mm]
155
m [kg]
0,5
Article number
P.BBKWL10B.Z16.D100
Description
Tube bolt sprocket 10B z16 - 1"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
150
m [kg]
0,8

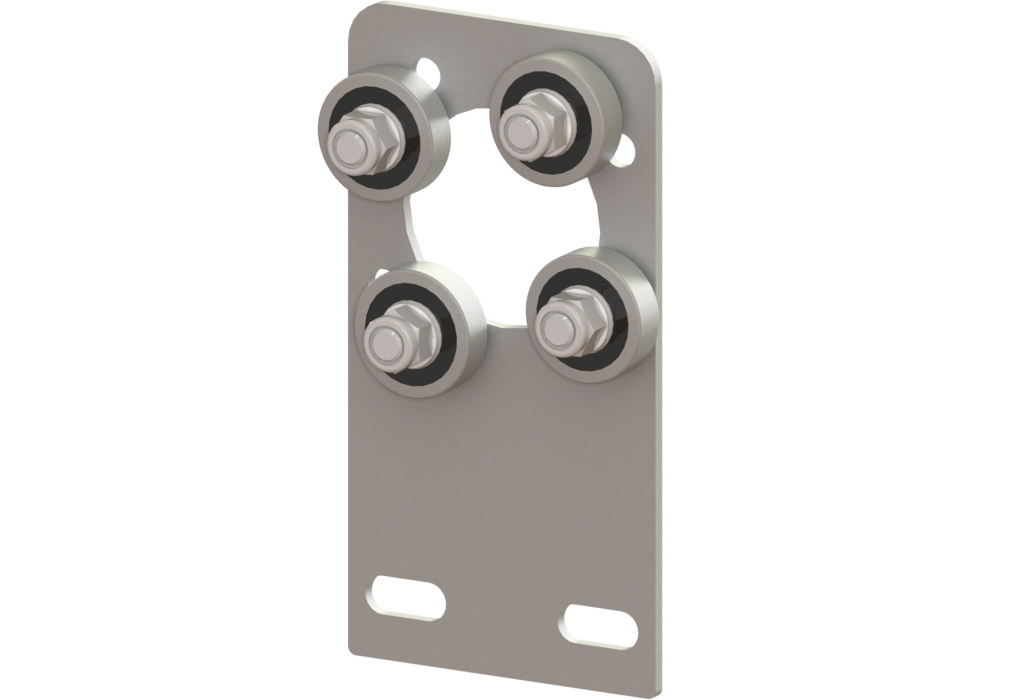

Ball bearing plate right

ArticleDescriptionA [mm]L [mm]D1 [mm]d [mm]m [kg]
P.KL100.R.A079Ball bearing plate 1" R A79 L1407914034,530.4
P.KL100.R.A092Ball bearing plate 1" R A92 L1539215334,530.5
Article number
P.KL100.R.A079
Description
Ball bearing plate 1" R A79 L140
A [mm]
79
L [mm]
140
D1 [mm]
34,5
d [mm]
3
m [kg]
0.4
Article number
P.KL100.R.A092
Description
Ball bearing plate 1" R A92 L153
A [mm]
92
L [mm]
153
D1 [mm]
34,5
d [mm]
3
m [kg]
0.5

Ball bearing plate angled

ArticleDescriptionA [mm]H [mm]D1 [mm]d [mm]m [kg]
P.KL100.H.A107Ball bearing plate 1" H A107 H15310715334,530,7
Article number
P.KL100.H.A107
Description
Ball bearing plate 1" H A107 H153
A [mm]
107
H [mm]
153
D1 [mm]
34,5
d [mm]
3
m [kg]
0,7

Cable clamp

ArticleDescriptionD1 [mm]D2 [mm]m [kg]
P.KABELRINGCable clamp 1" d36 D50 4xØ4,550360,09
Article number
P.KABELRING
Description
Cable clamp 1" d36 D50 4xØ4,5
D1 [mm]
50
D2 [mm]
36
m [kg]
0,09

Drive systems for strawberry cultivation gutters

To achieve optimum utilisation of the cultivation area and optimal strawberry cultivation and working conditions during harvesting, movable cultivation gutters are the solution. For the desired growth and production, the cultivation gutters are hung at the ideal distance from each other. During harvesting, space is created between the growing gutters for the harvesting staff and harvesting trolleys. With the swing system, this is done by alternately lowering or tightening the pulling cables at half of the cultivation gutters towards the centrally positioned motor gearbox and winding shaft. In this system, the winding shaft runs in the direction of the gutter. With the high/low system, half of the cultivation gutters are alternately raised and the other half lowered with cables. When the cultivation gutters are hanging low, harvesting can take place at the optimum height. The high/low system is driven by worm gearboxes and high-speed geared motors that drive winding shafts mounted in a trellis direction. We are happy to offer you our knowledge and expertise to come up with a good drive system for strawberry growing gutters.
