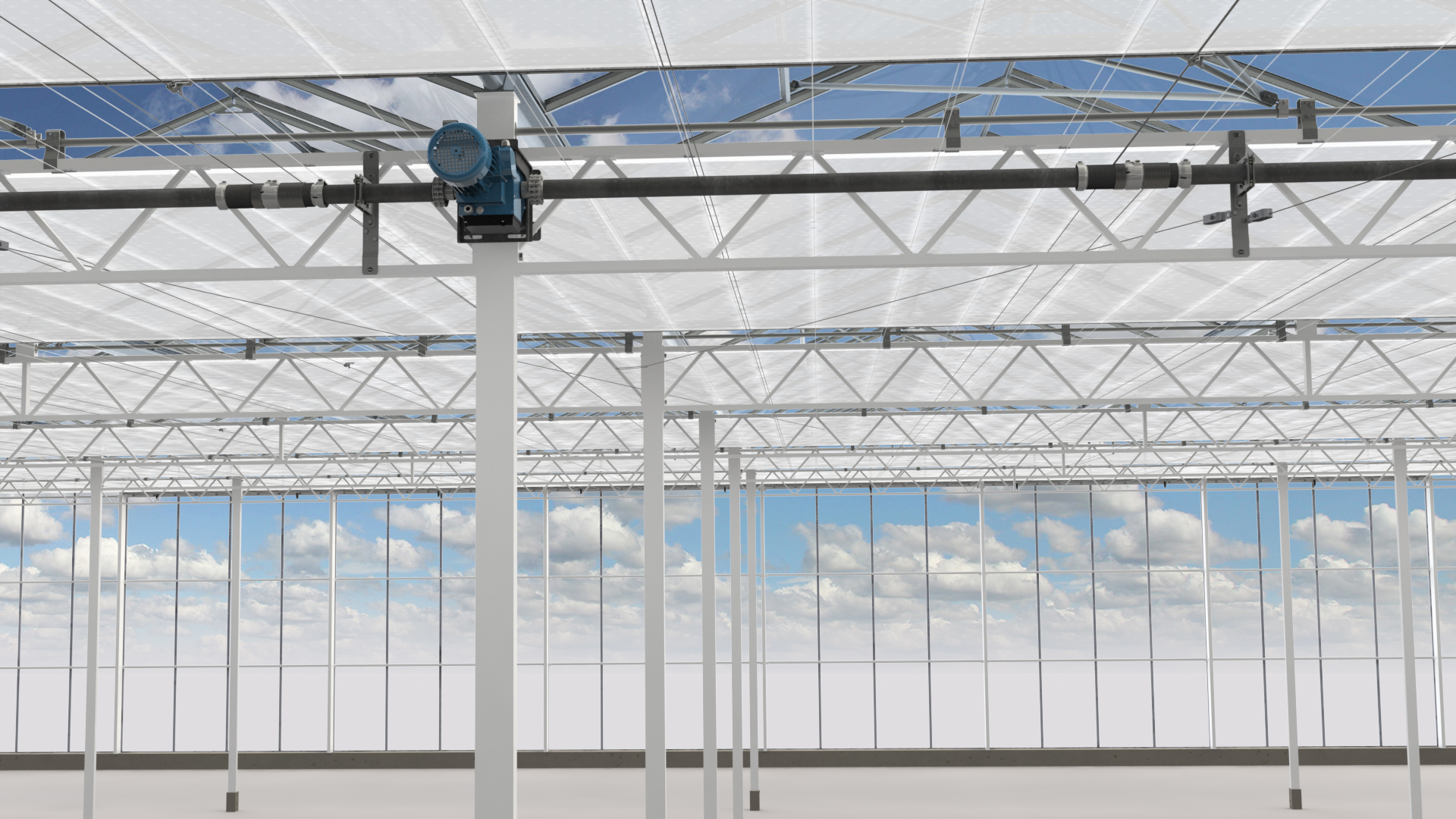

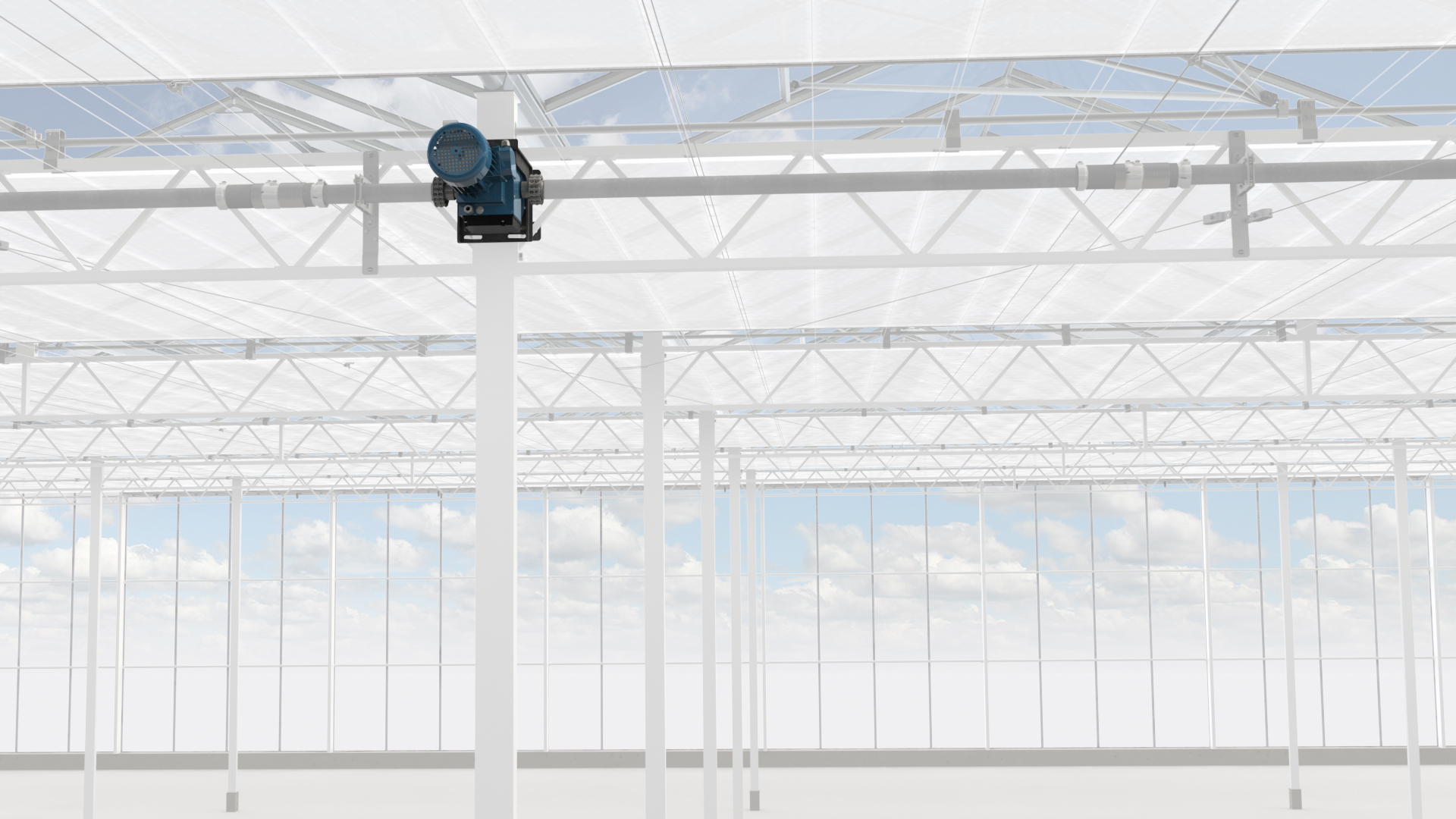

Horizontal wire screening slip blocks
Horizontal push-pull screening - THG40
Horizontal wire screening slip blocks
We are happy to help you with making a calculation
Get in contact with usHorizontal shutter systems are used in Venlo, wide-span and poly greenhouses. In a wire screen application, the screen is driven by pull wires. The pull wires are driven by a GW motor gearbox via a 2" winding tube equipped with (profiled) wire drums. The slip blocks attached to the screen profiles are on the Ø 3 mm pull wires.
- Modern, refined application.
- Maximum light yield, minimum shadow.
- Minimal mechanical parts.
- Specialized GW screen drives.
- Extra accuracy by using slip blocks.
- Easy installation with special motor brackets.
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.400.26.KW | GW10 2.6 3ph 400V with CW+CH 10B z16 | 100 / 80 | 2,6 / 3,1 | 168 | 124 | 0,09 / 0,11 | 0,4 / 0,4 | 0,7 / 0,7 | 21 |
 2 P.GW10.3.400.26.KW 11 GW10 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW10.3.400.52.KW | GW10 5.2 3ph 400V with CW+CH 10B z16 | 100 / 80 | 5,2 / 6,2 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 24 |
2 P.GW10.3.400.52.KW 11 GW10 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
 2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
 2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW110S.400.40.KW | GW110S 4.0 3ph 400V with CW+CH 12B z18 | 1100 / 957 | 4,0 / 4,8 | 242 | 159 | 1,10 / 1,32 | 2,7 / 2,7 | 4,7 / 4,7 | 38 |
 2 P.GW110S.400.40.KW 11 GW110S 4.0 3ph 400V with CW+CH 12B z18 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW150S.400.40.KW_2D.gif 17 16 10 | |||||||||
| P.GW150S.400.40.KW | GW150S 4.0 3ph 400V with CW+CH 12B z18 | 1500 / 1200 | 4,0 / 4,8 | 280 | 176 | 1,50 / 1,80 | 3,7 / 3,7 | 6,4 / 6,4 | 39 |
2 P.GW150S.400.40.KW 11 GW150S 4.0 3ph 400V with CW+CH 12B z18 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW150S.400.40.KW_2D.gif 17 16 10 |
Article number
Description
GW10 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29
Article number
Description
GW80 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
218
D [mm]
159
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
31
Article number
Description
GW80 4.0 3ph 400V with CW+CH 10B z16 d25
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,0 / 2,0
I (@ Δ) (50/60Hz) [A]
3,5 / 3,5
m [kg]
38
Article number
Description
GW110S 4.0 3ph 400V with CW+CH 12B z18
T (50/60Hz) [Nm]
1100 / 957
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
1,10 / 1,32
I (@ Y) (50/60Hz) [A]
2,7 / 2,7
I (@ Δ) (50/60Hz) [A]
4,7 / 4,7
m [kg]
38
Article number
Description
GW150S 4.0 3ph 400V with CW+CH 12B z18
T (50/60Hz) [Nm]
1500 / 1200
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
280
D [mm]
176
P (50/60Hz) [kW]
1,50 / 1,80
I (@ Y) (50/60Hz) [A]
3,7 / 3,7
I (@ Δ) (50/60Hz) [A]
6,4 / 6,4
m [kg]
39
Weld sprockets
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.LKWL10B.Z16.D200 | Weld sprocket 10B z16 - 1" and 2" | 10B z16 | D200 | 420 | 61 | 96 | 30 | 0,7 |
 2 P.LKWL10B.Z16.D200 11 Weld sprocket 10B z16 - 1" and 2" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D125_2D.gif 17 10 | ||||||||
| P.LKWL12B.Z18.D200 | Weld sprocket 12B z18 - 1" | 12B z18 | D200 | 760 | 61 | 126 | 34 | 0,8 |
2 P.LKWL12B.Z18.D200 11 Weld sprocket 12B z18 - 1" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D100_2D.gif 17 10 |
Article number
Description
Weld sprocket 10B z16 - 1" and 2"
Chain
10B z16
Shaft
D200
Tmax [Nm]
420
Db [mm]
61
D [mm]
96
L [mm]
30
m [kg]
0,7
Article number
Description
Weld sprocket 12B z18 - 1"
Chain
12B z18
Shaft
D200
Tmax [Nm]
760
Db [mm]
61
D [mm]
126
L [mm]
34
m [kg]
0,8
Chains
| Article | Description | Tmax [Nm] | D [mm] | m [kg] |
| P.KTG10B-2.Z16 | Chain 10B z16 | 420 | 96 | 0,5 |
| P.KTG12B-2.Z18 | Chain 12B z18 | 760 | 126 | 0,8 |
Mounting plate GW right angle
| Article | Description | H [mm] | A [mm] | m [kg] |
| P.MP.GW.H.A100 | Mounting plate GW right angle A100 H111 | 111 | 100 | 2,0 |
Article number
Description
Mounting plate GW right angle A100 H111
H [mm]
111
A [mm]
100
m [kg]
2,0
GW80/GW150S mounting seats
| Article | Description | L [mm] | B [mm] | H [mm] | m [kg] |
| P.MP.GWS.01 | Mounting seat GW30/80 incl. CP | 260 | 240 | 240 | 7,9 |
| P.MP.GWS.02 | Mounting seat GW110S/150S incl. CP | 260 | 270 | 250 | 14,2 |
Article number
Description
Mounting seat GW30/80 incl. CP
L [mm]
260
B [mm]
240
H [mm]
240
m [kg]
7,9
Article number
Description
Mounting seat GW110S/150S incl. CP
L [mm]
260
B [mm]
270
H [mm]
250
m [kg]
14,2
Mounting set mounting seat
| Article | Description | B [mm] | m [kg] |
| P.MP.GWS.BVM.50 | Mounting seat mounting set column 50 | 50 | 0,5 |
| P.MP.GWS.BVM.60 | Mounting seat mounting set column 60 | 60 | 0,5 |
| P.MP.GWS.BVM.80 | Mounting seat mounting set column 70/80 | 80 | 0,6 |
| P.MP.GWS.BVM.100 | Mounting seat mounting set column 100 | 100 | 0,7 |
| P.MP.GWS.BVM.120 | Mounting seat mounting set column 120 | 120 | 0,8 |
| P.MP.GWS.BVM.140 | Mounting seat mounting set column 140 | 140 | 0,8 |
Drive systems for screening
The use of different screen systems is becoming more common in sustainable cultivation. Not only do they protect plants from harmful solar irradiation, they also have the ability to reduce sunlight, prevent light emissions and save energy by retaining heat. This way screens contribute to a large extent to achieving sustainability objectives. To make this possible, we offer a wide range of reliable drives developed specifically for this purpose.

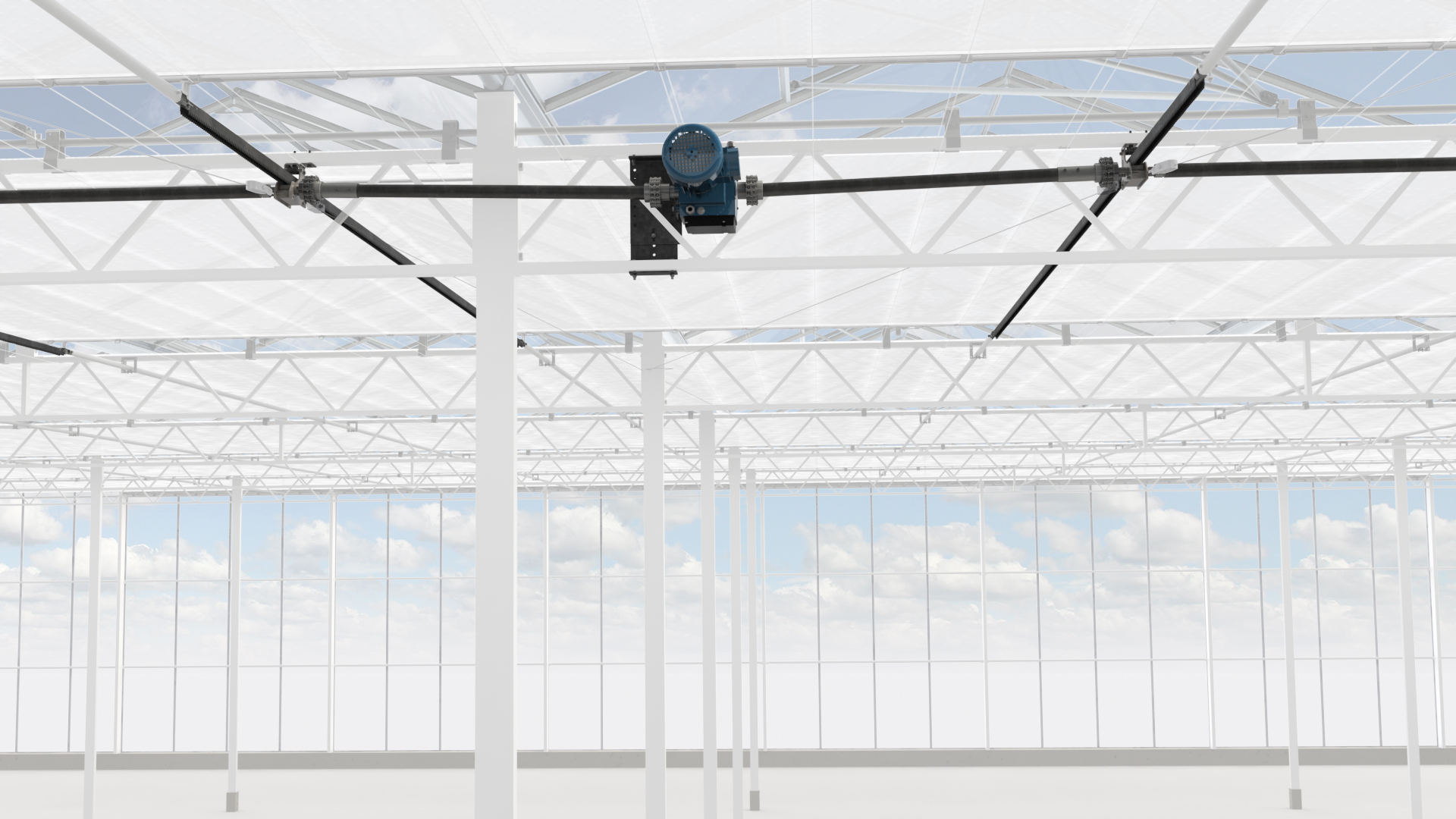

Horizontal push-pull screening - THG40
We are happy to help you with making a calculation
Get in contact with usHorizontal shutter systems are used in Venlo, wide-span and poly greenhouses. In the case of a push-pull screening system or gear rack screening system, the screen is driven by THG gear racks in combination with a GW motor gearbox. The gear racks are fitted with push-pull tubes to which the screen profiles are attached.
- Suitable for all greenhouse structures.
- Can be used with lighter and faster drives.
- Easy to maintain.
- Accurate and very reliable.
- Can be used with 5/4" prefabricated drive shafts
- Easy installation.
GW motor gearbox
| Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
| P.GW10.3.400.52.KW | GW10 5.2 3ph 400V with CW+CH 10B z16 | 100 / 80 | 5,2 / 6,2 | 191 | 124 | 0,18 / 0,22 | 0,7 / 0,7 | 1,2 / 1,2 | 24 |
2 P.GW10.3.400.52.KW 11 GW10 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW10.400.26.KW.jpg 14 15 CAT_P.GW10.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
| P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 |
Article number
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29
Article number
Description
GW80 4.0 3ph 400V with CW+CH 10B z16 d25
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
4,0 / 4,8
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,0 / 2,0
I (@ Δ) (50/60Hz) [A]
3,5 / 3,5
m [kg]
38
Weld sprockets
| Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
| P.LKWL10B.Z16.D125 | Weld sprocket 10B z16 - 5/4" | 10B z16 | D125 | 420 | 43 | 96 | 30 | 0,4 |
2 P.LKWL10B.Z16.D125 11 Weld sprocket 10B z16 - 5/4" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D125_2D.gif 17 10 |
Article number
Description
Weld sprocket 10B z16 - 5/4"
Chain
10B z16
Shaft
D125
Tmax [Nm]
420
Db [mm]
43
D [mm]
96
L [mm]
30
m [kg]
0,4
Chains
| Article | Description | Tmax [Nm] | D [mm] | m [kg] |
| P.KTG10B-2.Z16 | Chain 10B z16 | 420 | 96 | 0,5 |
Tube bolt chain coupling
| Article | Description | Tmax [Nm] | D2 [mm] | D3 [mm] | L1 [mm] | L3 [mm] | m [kg] |
| P.BBKK10B.S20.D125 | Tube bolt CC set 10B S20 z16 5/4" | 420 | 43,1 | 96 | 30 | 150 | 1,9 |
 2 P.BBKK10B.S20.D125 13 Tube bolt CC set 10B S20 z16 5/4" 17 18 P.BBKK10B.S20.D000.jpg 20 21 CAT_P.BBKK10B.D00.D125_2D.gif 10 |
Article number
Description
Tube bolt CC set 10B S20 z16 5/4"
Tmax [Nm]
420
D2 [mm]
43,1
D3 [mm]
96
L1 [mm]
30
L3 [mm]
150
m [kg]
1,9
Screen mounting plates
| Article | Description | A [mm] | B [mm] | H [mm] | m [kg] |
| P.SMP.GW.L290-475 | Screen mounting plate top screen L290-475 | 130 | 70 | 290 - 475 | 6,0 |
| P.SMP.GW.L290-475.O | Screen mounting plate top+bottom | 130 | 70 | 290 - 475 | 8,7 |
| P.SMP.GW.O | Screen mounting plate bottom screen | 130 | 70 | 210 | 2,7 |
Article number
Description
Screen mounting plate top screen L290-475
A [mm]
130
B [mm]
70
H [mm]
290 - 475
m [kg]
6,0
Article number
Description
Screen mounting plate top+bottom
A [mm]
130
B [mm]
70
H [mm]
290 - 475
m [kg]
8,7
Article number
Description
Screen mounting plate bottom screen
A [mm]
130
B [mm]
70
H [mm]
210
m [kg]
2,7
THG40-UNIT
| Article | Description | Tin [Nm] | i [-] | s [mm/rev] | m [kg] |
| P.THG40.UNIT | THG40 gearcase (1:1.8) | 5,71 | 1,82 | 75,8 | 2,15 |
| P.THG40.UNIT.K | THG40 gearcase (1:1.8) for clamp set | 5,71 | 1,82 | 75,8 | 2,15 |
Article number
Description
THG40 gearcase (1:1.8)
Tin [Nm]
5,71
i [-]
1,82
s [mm/rev]
75,8
m [kg]
2,15
Article number
Description
THG40 gearcase (1:1.8) for clamp set
Tin [Nm]
5,71
i [-]
1,82
s [mm/rev]
75,8
m [kg]
2,15
THG40 counter ring
| Article | Description | m [kg] |
| P.THG40.CR.02 | THG40 counter ring for truss girder | 0,04 |
THG40 clamp set
| Article | Description | m [kg] |
| P.THG40.KBL.50 | THG40 clamping box set girder 50x30 | 0,18 |
THG40 gear rack
| Article | Description | F [N] | L [mm] | m [kg] |
| P.THG40.L3613 | THG40 gear rack, section 3.0 m | 450 | 3613 | 7.3 |
| P.THG40.L3965 | THG40 gear rack, section 4.0 m | 450 | 3965 | 8,0 |
| P.THG40.L4467 | THG40 gear rack, section 4.5 m | 450 | 4467 | 9,0 |
| P.THG40.L4970 | THG40 gear rack, section 5.0 m | 450 | 4970 | 10,1 |
Coupling piece Ø 27/32mm
| Article | Description | m [kg] |
| P.KS.D27 | THG40 coupling piece Ø27 + 2x clamping bush | 0,45 |
| P.KS.D32.02 | THG40 coupling piece Ø32 + 2x M6x25 | 0,41 |
Locking
| Article | Description | m [kg] |
| P.AS-BORGCLIP | Axle securing clip | 0,01 |
Sleeve sprocket for on THG40
| Article | Description | Chain | Shaft | Tmax [Nm] | D [mm] | L [mm] | m [kg] |
| P.KWL10B.Z16.S20 | Sleeve sprocket 10B z16 p5/8" s20 | 10B z16 | S20 | 240 | 77 | 27 | 0,4 |
 2 P.KWL10B.Z16.S20 11 Sleeve sprocket 10B z16 p5/8" s20 12 13 P.KWL10B.Z16.S20.jpg 14 15 CAT_P.KWL10B.Z16.S20_2D.gif 10 |
Article number
Description
Sleeve sprocket 10B z16 p5/8" s20
Chain
10B z16
Shaft
S20
Tmax [Nm]
240
D [mm]
77
L [mm]
27
m [kg]
0,4
Sleeve joint rotation
| Article | Description | Db [mm] | m [kg] |
| P.THG40.SLV | THG40 weld clearance joint | 34,5/43,5 | 1,4 |
Drive systems for screening
The use of different screen systems is becoming more common in sustainable cultivation. Not only do they protect plants from harmful solar irradiation, they also have the ability to reduce sunlight, prevent light emissions and save energy by retaining heat. This way screens contribute to a large extent to achieving sustainability objectives. To make this possible, we offer a wide range of reliable drives developed specifically for this purpose.
De Gier Drive Systems
+ 31 174 29 20 89
