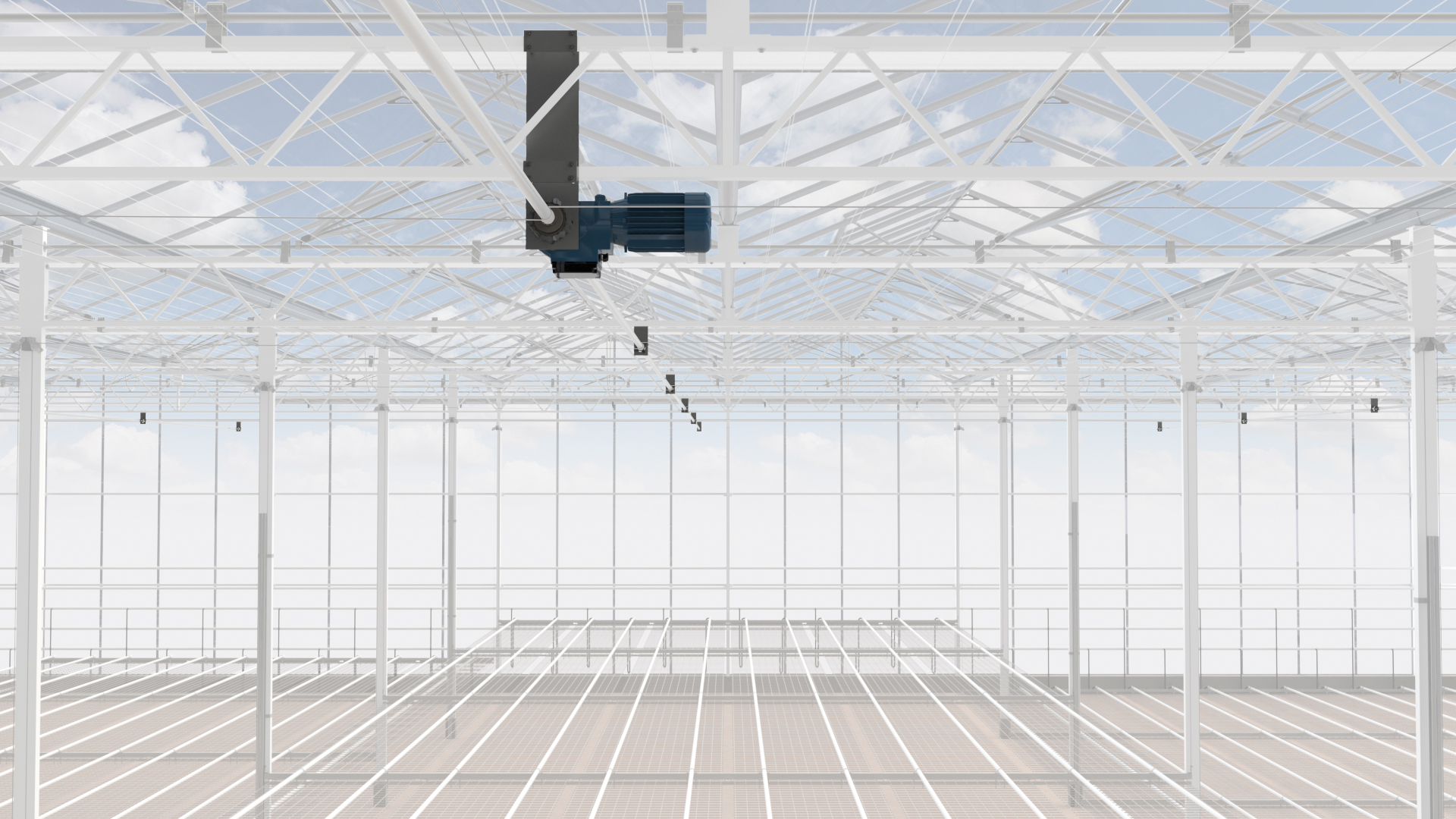

Hoisted heating with gauze is used in suitable VENLO and widespan greenhouses. The hoist beams with attached gauze, CO2 hoses, heating tubes and sometimes drip hoses are hanging from the truss girder with steel cables and pulleys. The system is hoisted by a GW HC type motor gearbox which drives a winding tube. The GW HC is developed especially for hoisted heating systems.
Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW100.400.26.KW | GW100 2.6 3ph 400V with CW+CH 12B z18 | 1000 / 800 | 2,6 / 3,1 | 242 | 159 | 0,75 / 0,90 | 2,2 / 2,2 | 3,8 / 3,8 | 38 |
2 P.GW100.400.26.KW 11 GW100 2.6 3ph 400V with CW+CH 12B z18 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW100.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW125HC.3.400.26.KW | GW125HC 2.6 3ph 400V with CW+CH12B z18 d38 | 1250 / 1000 | 2,6 / 3,1 | 238 | 156 | 0,88 / 1,06 | 2,2 / 2,2 | 3,8 / 3,8 | 38 |
2 P.GW125HC.3.400.26.KW 11 GW125HC 2.6 3ph 400V with CW+CH12B z18 d38 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW150S.400.40.KW_2D.gif 17 16 10 | |||||||||
P.GW150HC.400.26.KW | GW150HC 2.6 3ph 400V with CW+CH 12B z18 3G | 1500 / 1200 | 2,6 / 3,1 | 280 | 156 | 1,10 / 1,32 | 3,0 / 3,0 | 5,2 / 5,2 | 39 |
2 P.GW150HC.400.26.KW 11 GW150HC 2.6 3ph 400V with CW+CH 12B z18 3G 12 13 P.GW150S.400.40.KW.jpg 14 15 CAT_P.GW150S.400.40.KW_2D.gif 17 16 10 |
Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
P.LKWL10B.Z16.D100 | Weld sprocket 10B z16 - 1" and 2" | 10B z16 | D100 | 420 | 34 | 96 | 30 | 0,5 |
2 P.LKWL10B.Z16.D100 11 Weld sprocket 10B z16 - 1" and 2" 12 13 P.LKWL10B.Z16.D100.jpg 15 16 CAT_P.LKWL10B.Z16.D100_2D.gif 17 10 | ||||||||
P.LKWL12B.Z18.D100 | Weld sprocket 12B z18 - 1" | 12B z18 | D100 | 760 | 34 | 126 | 34 | 1,4 |
2 P.LKWL12B.Z18.D100 11 Weld sprocket 12B z18 - 1" 12 13 P.LKWL10B.Z16.D100.jpg 15 16 CAT_P.LKWL10B.Z16.D100_2D.gif 17 10 |
Article | Description | D1 [mm] | D2 [mm] | m [kg] |
P.KABELRING | Cable clamp 1" d36 D50 4xØ4,5 | 50 | 36 | 0,09 |
To achieve the best yield result certain products require extra heating. In order to provide this heating as efficient as possible it is best if this heat is delivered where it is required. Using a heat tube makes this possible. Making use of our strong and reliable motor gearboxes this heat tube can be lifted to the preferred height or it can be lifted all the way in order to allow for certain activities. When the heat tube is combined with wire netting it can also be used to support the crop.
