Hoisted heating tubes for vegetable production
●
●
HomeDrive SystemsDrive systems for glass greenhousesDrive systems for hoistingHoisted heating tubes

Hoisted heating tubes for vegetable production

How do I make a calculation?

We are happy to help you with making a calculation

Print this system (pdf)

Click here to create a PDF of the page

Download

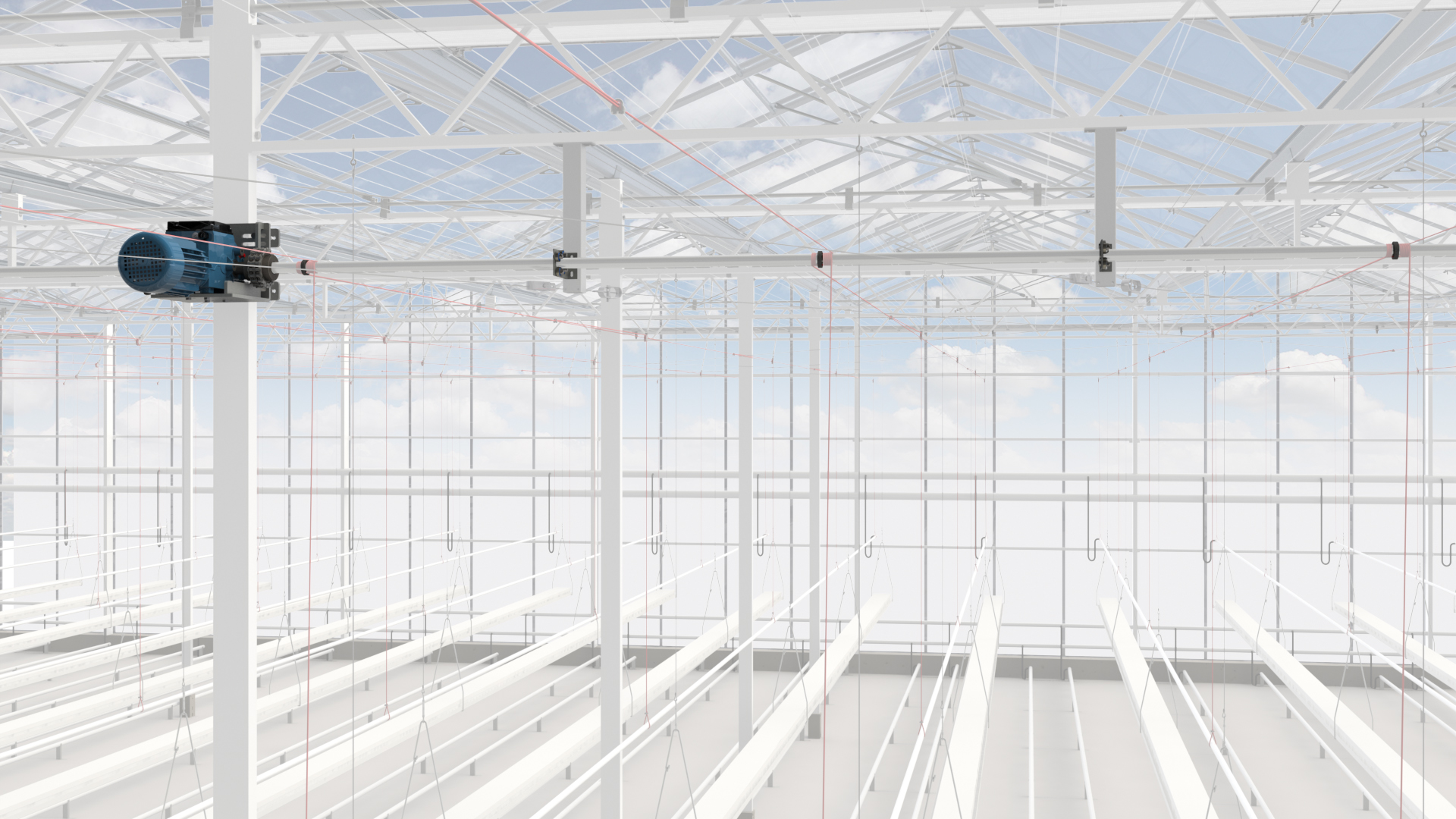

Hoisted heating tubes are used in VENLO and widespan greenhouses. The heating tubes that can be height adjusted are hanging from the truss girder with steel cables and pulleys. The system is hoisted by a GW HC type motor gearbox which drives a winding tube. The GW HC is developed especially for hoisted heating systems.

  • Heating always at optimal height, near the plant head.
  • Exact height control.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW30.400.26.KWGW30 2.6 3ph 400V with CW+CH 10B z16300 / 2402,6 / 3,12201450,25 / 0,300,8 / 0,81,4 / 1,424
P.GW40.400.26.KWGW40 2.6 3ph 400V with CW+CH 10B z16400 / 3202,6 / 3,12201590,37 / 0,441,0 / 1,01,7 / 1,729
P.GW80.400.26.KWGW80 2.6 3ph 400V with CW+CH 10B z16800 / 6402,6 / 3,12181590,55 / 0,661,5 / 1,52,6 / 2,631
P.GW100.400.26.KWGW100 2.6 3ph 400V with CW+CH 12B z181000 / 8002,6 / 3,12421590,75 / 0,902,2 / 2,23,8 / 3,838
P.GW125HC.3.400.26.KWGW125HC 2.6 3ph 400V with CW+CH12B z18 d381250 / 10002,6 / 3,12381560,88 / 1,062,2 / 2,23,8 / 3,838
P.GW150HC.400.26.KWGW150HC 2.6 3ph 400V with CW+CH 12B z18 3G1500 / 12002,6 / 3,12801561,10 / 1,323,0 / 3,05,2 / 5,239
Article number
P.GW30.400.26.KW
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
P.GW40.400.26.KW
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
P.GW80.400.26.KW
Description
GW80 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
800 / 640
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
218
D [mm]
159
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
31
Article number
P.GW100.400.26.KW
Description
GW100 2.6 3ph 400V with CW+CH 12B z18
T (50/60Hz) [Nm]
1000 / 800
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,75 / 0,90
I (@ Y) (50/60Hz) [A]
2,2 / 2,2
I (@ Δ) (50/60Hz) [A]
3,8 / 3,8
m [kg]
38
Article number
P.GW125HC.3.400.26.KW
Description
GW125HC 2.6 3ph 400V with CW+CH12B z18 d38
T (50/60Hz) [Nm]
1250 / 1000
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
238
D [mm]
156
P (50/60Hz) [kW]
0,88 / 1,06
I (@ Y) (50/60Hz) [A]
2,2 / 2,2
I (@ Δ) (50/60Hz) [A]
3,8 / 3,8
m [kg]
38
Article number
P.GW150HC.400.26.KW
Description
GW150HC 2.6 3ph 400V with CW+CH 12B z18 3G
T (50/60Hz) [Nm]
1500 / 1200
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
280
D [mm]
156
P (50/60Hz) [kW]
1,10 / 1,32
I (@ Y) (50/60Hz) [A]
3,0 / 3,0
I (@ Δ) (50/60Hz) [A]
5,2 / 5,2
m [kg]
39

Weld sprockets

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.LKWL10B.Z16.D100Weld sprocket 10B z16 - 1" and 2"10B z16D1004203496300,5
P.LKWL12B.Z18.D100Weld sprocket 12B z18 - 1"12B z18D10076034126341,4
Article number
P.LKWL10B.Z16.D100
Description
Weld sprocket 10B z16 - 1" and 2"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
30
m [kg]
0,5
Article number
P.LKWL12B.Z18.D100
Description
Weld sprocket 12B z18 - 1"
Chain
12B z18
Shaft
D100
Tmax [Nm]
760
Db [mm]
34
D [mm]
126
L [mm]
34
m [kg]
1,4

Chains

ArticleDescriptionTmax [Nm]D [mm]m [kg]
P.KTG10B-2.Z16Chain 10B z16420960,5
P.KTG12B-2.Z18Chain 12B z187601260,8
Article number
P.KTG10B-2.Z16
Description
Chain 10B z16
Tmax [Nm]
420
D [mm]
96
m [kg]
0,5
Article number
P.KTG12B-2.Z18
Description
Chain 12B z18
Tmax [Nm]
760
D [mm]
126
m [kg]
0,8

Mounting plate

ArticleDescriptionH [mm]A [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111111002,0
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
H [mm]
111
A [mm]
100
m [kg]
2,0

GW80/GW150S mounting seats

ArticleDescriptionL [mm]B [mm]H [mm]m [kg]
P.MP.GWS.01Mounting seat GW30/80 incl. CP2602402407,9
P.MP.GWS.02Mounting seat GW110S/150S incl. CP26027025014,2
Article number
P.MP.GWS.01
Description
Mounting seat GW30/80 incl. CP
L [mm]
260
B [mm]
240
H [mm]
240
m [kg]
7,9
Article number
P.MP.GWS.02
Description
Mounting seat GW110S/150S incl. CP
L [mm]
260
B [mm]
270
H [mm]
250
m [kg]
14,2

Mounting set mounting seat

ArticleDescriptionB [mm]m [kg]
P.MP.GWS.BVM.50Mounting seat mounting set column 50500,5
P.MP.GWS.BVM.60Mounting seat mounting set column 60600,5
P.MP.GWS.BVM.80Mounting seat mounting set column 70/80800,6
P.MP.GWS.BVM.100Mounting seat mounting set column 1001000,7
P.MP.GWS.BVM.120Mounting seat mounting set column 1201200,8
P.MP.GWS.BVM.140Mounting seat mounting set column 1401400,8
Article number
P.MP.GWS.BVM.50
Description
Mounting seat mounting set column 50
B [mm]
50
m [kg]
0,5
Article number
P.MP.GWS.BVM.60
Description
Mounting seat mounting set column 60
B [mm]
60
m [kg]
0,5
Article number
P.MP.GWS.BVM.80
Description
Mounting seat mounting set column 70/80
B [mm]
80
m [kg]
0,6
Article number
P.MP.GWS.BVM.100
Description
Mounting seat mounting set column 100
B [mm]
100
m [kg]
0,7
Article number
P.MP.GWS.BVM.120
Description
Mounting seat mounting set column 120
B [mm]
120
m [kg]
0,8
Article number
P.MP.GWS.BVM.140
Description
Mounting seat mounting set column 140
B [mm]
140
m [kg]
0,8

Ball bearing plate

ArticleDescriptionA [mm]L [mm]D1 [mm]d [mm]m [kg]
P.KL100.H.A089Ball bearing plate 1" H A89 H1358913534,530,6
Article number
P.KL100.H.A089
Description
Ball bearing plate 1" H A89 H135
A [mm]
89
L [mm]
135
D1 [mm]
34,5
d [mm]
3
m [kg]
0,6

Cable clamp

ArticleDescriptionD1 [mm]D2 [mm]m [kg]
P.KABELRINGCable clamp 1" d36 D50 4xØ4,550360,09
Article number
P.KABELRING
Description
Cable clamp 1" d36 D50 4xØ4,5
D1 [mm]
50
D2 [mm]
36
m [kg]
0,09

Drive systems for hoisting

To achieve the best yield result certain products require extra heating. In order to provide this heating as efficient as possible it is best if this heat is delivered where it is required. Using a heat tube makes this possible. Making use of our strong and reliable motor gearboxes this heat tube can be lifted to the preferred height or it can be lifted all the way in order to allow for certain activities. When the heat tube is combined with wire netting it can also be used to support the crop.

Hoisted heating tubes
Hoisted heating tubes
Hoisted heating with gauze
Hoisted heating with gauze
