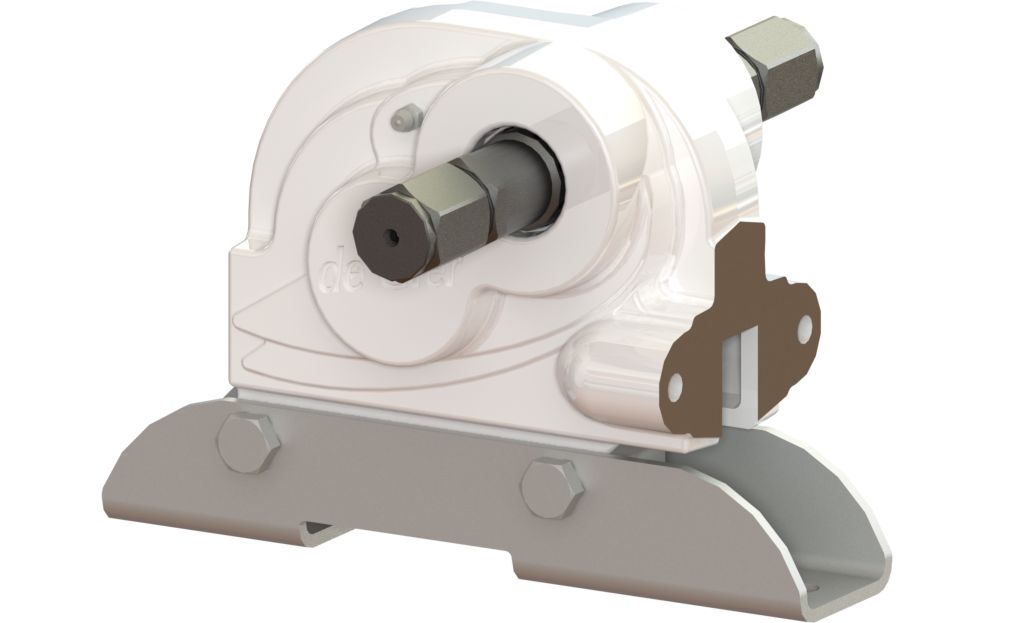

MX2 Cabrio ventilation is used in Venlo greenhouses and is driven by a double truss rail vent system. The continuous vent windows are joined in the direction of the gutter. One THG rack unit opens 1 row of windows in a section. The rack units from the windward and leeward side are connected with drive tubes to the GW motor gearbox.
Article | Description | T (50/60Hz) [Nm] | n (50/60Hz) [rpm] | L [mm] | D [mm] | P (50/60Hz) [kW] | I (@ Y) (50/60Hz) [A] | I (@ Δ) (50/60Hz) [A] | m [kg] |
P.GW30.400.26.KW | GW30 2.6 3ph 400V with CW+CH 10B z16 | 300 / 240 | 2,6 / 3,1 | 220 | 145 | 0,25 / 0,30 | 0,8 / 0,8 | 1,4 / 1,4 | 24 |
2 P.GW30.400.26.KW 11 GW30 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW30.400.52.KW | GW30 5.2 3ph 400V with CW+CH 10B z16 | 300 / 240 | 5,2 / 6,2 | 220 | 145 | 0,37 / 0,44 | 1,2 / 1,2 | 2,1 / 2,1 | 27 |
2 P.GW30.400.52.KW 11 GW30 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW30.400.26.KW.jpg 14 15 CAT_P.GW30.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW40.400.26.KW | GW40 2.6 3ph 400V with CW+CH 10B z16 | 400 / 320 | 2,6 / 3,1 | 220 | 159 | 0,37 / 0,44 | 1,0 / 1,0 | 1,7 / 1,7 | 29 |
2 P.GW40.400.26.KW 11 GW40 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW40.3.400.52.KW | GW40 5.2 3ph 400V with CW+CH 10B z16 | 400 / 320 | 5,2 / 6,2 | 220 | 137 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 29 |
2 P.GW40.3.400.52.KW 11 GW40 5.2 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW80.400.26.KW | GW80 2.6 3ph 400V with CW+CH 10B z16 | 800 / 640 | 2,6 / 3,1 | 218 | 159 | 0,55 / 0,66 | 1,5 / 1,5 | 2,6 / 2,6 | 31 |
2 P.GW80.400.26.KW 11 GW80 2.6 3ph 400V with CW+CH 10B z16 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 | |||||||||
P.GW80.2.400.40.KW | GW80 4.0 3ph 400V with CW+CH 10B z16 d25 | 800 / 640 | 4,0 / 4,8 | 242 | 159 | 0,75 / 0,90 | 2,0 / 2,0 | 3,5 / 3,5 | 38 |
2 P.GW80.2.400.40.KW 11 GW80 4.0 3ph 400V with CW+CH 10B z16 d25 12 13 P.GW80.400.26.KW.jpg 14 15 CAT_P.GW80.400.26.KW_2D.gif 17 16 10 |
Article | Description | Chain | Shaft | Tmax [Nm] | Db [mm] | D [mm] | L [mm] | m [kg] |
P.LKWL10B.Z16.D125 | Weld sprocket 10B z16 - 5/4" | 10B z16 | D125 | 420 | 43 | 96 | 30 | 0,4 |
2 P.LKWL10B.Z16.D125 11 Weld sprocket 10B z16 - 5/4" 12 13 P.LKWL10B.Z16.D125.jpg 15 16 CAT_P.LKWL10B.Z16.D125_2D.gif 17 10 |
Article | Description | F [N] | L [mm] | L2 [mm] | L3 [mm] | m [kg] |

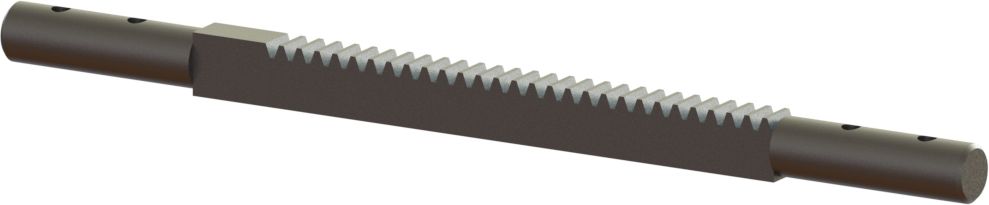

P.TH55.L1500.P.02.N | THG55 Rack L=1500 mm with stub | 11000 | 1500 | 1570 | 1700 | 7,2 |
2 P.TH55.L1500.P.02.N 11 THG55 Rack L=1500 mm with stub 12 13 P.TH55.L0000.P.02.N.jpg 14 10 CAT_P.TH55.L0000.P.02.N_2D.gif | ||||||
P.TH55.L1900.P.02.N | THG55 Rack L=1900 mm with stub | 11000 | 1900 | 1970 | 2100 | 8,9 |
2 P.TH55.L1900.P.02.N 11 THG55 Rack L=1900 mm with stub 12 13 P.TH55.L0000.P.02.N.jpg 14 10 CAT_P.TH55.L0000.P.02.N_2D.gif |
Article | Description | m [kg] |
P.ABR.24 | Shaft locking ring 24 DIN6799 EZ | 0,01 |
Article | Description | m [kg] |
P.THG.CR | Contra-ring THG-serie ØD46,5 Ød11 d5 | 0,06 |
Article | Description | Chain | Shaft | Tmax [Nm] | D2 [mm] | L [mm] | m [kg] |
P.KWL10B.Z16.ZK | Sleeve sprocket 10B z16 - ZK | 10B z16 | ZK | 420 | 96 | 30 | 0,6 |
2 P.KWL10B.Z16.ZK 11 Sleeve sprocket 10B z16 - ZK 12 13 P.KWL10B.Z16.ZK.jpg 14 15 CAT_P.KWL10B.Z16.ZK_2D.gif 10 |
Article | Description | Tmax [Nm] | D [mm] | m [kg] |
P.KTG10B-2.Z16 | Chain 10B z16 | 420 | 96 | 0,5 |
For creating outdoor growing conditions or a protective greenhouse environment or everything in between, a cabrio greenhouse also known as a convertible greenhouse is the ideal solution. When closed, the cabrio greenhouse provides an ideal protective greenhouse environment after cutting or sowing the plant material. When the plant material grows further and needs to be hardened off at some point - to get used to outdoor conditions - the cabrio greenhouse ventilation is opened further. After hardening off, the cabrio ventilation can then be fully opened and the plants are fully outside. To protect the plants from frost, storms and rain in the meantime, the cabrio ventilation can be closed in time by the climate computer present. Depending on the cabrio ventilation system, the windward and leeward sides are operated simultaneously or independently. We will be happy to offer you our knowledge and expertise to arrive at the optimal convertible drive solution.
