Top opening roll-up curtain (with 50mm roll-up tube)
Top opening folding screen (winch)
Top opening folding screen (tube)
Top opening fixed screen (winch)
●
●
HomeDrive SystemsDrive systems for cowsDrive systems for ventilationTop opening screens

Top opening roll-up curtain (with 50mm roll-up tube)

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Livestock curtains come in different versions: as folding curtains, roll-up curtains and pull-up curtains. For the different systems there are also different drive solutions to move the curtain from top to bottom. This can be done with a winding tube, telescopic drive, high-set 1" drive tube or via cables, pulleys and a winch motor. This type of system has to be designed according to standard NEN-EN- 17088.

  • Optimal ventilation and light and air permeable.
  • Easy-to-install system. Extensive range of drives.
  • Various accessories to create ideal combinations.
  • Low-maintenance and low noice.
  • Cost-effective solution.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW30.2.230.26.LGW30 2.6 1ph 230V for winch drum300 / -2,6 / -2201450,12 / -1,3 / --27
P.GW30.230.52.LGW30 5.2 1ph 230V for winch drum300 / -5,2 / -2201450,55 / -4,5 / --30
P.GW30.400.26.LGW30 2.6 3ph 400V for winch drum300 / 2402,6 / 3,12201450,25 / 0,300,8 / 0,81,4 / 1,427
P.GW30.400.52.LGW30 5.2 3ph 400V for winch drum300 / 2405,2 / 6,32201450,37 / 0,441,2 / 1,22,1 / 2,130
Article number
P.GW30.2.230.26.L
Description
GW30 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
27
Article number
P.GW30.230.52.L
Description
GW30 5.2 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
5,2 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,55 / -
I (@ Y) (50/60Hz) [A]
4,5 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
30
Article number
P.GW30.400.26.L
Description
GW30 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
27
Article number
P.GW30.400.52.L
Description
GW30 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,3
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
30

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

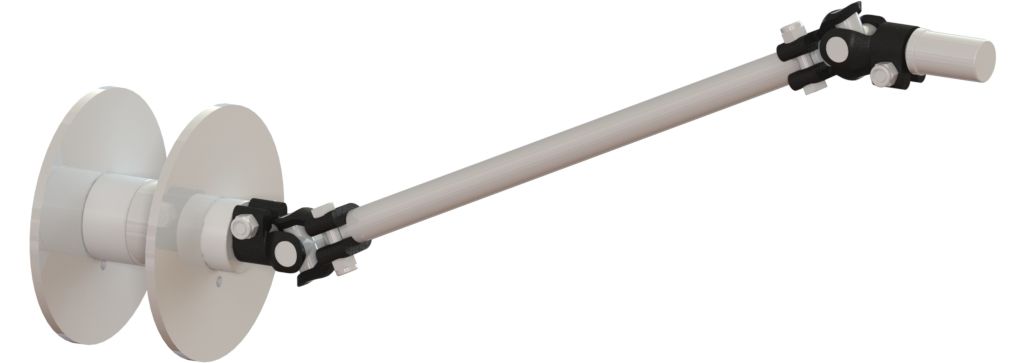

Top open curtain system set

ArticleDescriptionB [mm]D2 [mm]D3 [mm]D4 [mm]m [kg]
P.SV.SET.L400.01Top open curtain system set L1.KRK+shaft L4007028148254,2
Article number
P.SV.SET.L400.01
Description
Top open curtain system set L1.KRK+shaft L400
B [mm]
70
D2 [mm]
28
D3 [mm]
148
D4 [mm]
25
m [kg]
4,2

Coupling to tube

ArticleDescriptionD1 [mm]D2 [mm]L1 [mm]L2 [mm]m [kg]
P.KBS50.08.D25Coupling to tube Ø50 AZ/LK GW30 long50251801300,6
Article number
P.KBS50.08.D25
Description
Coupling to tube Ø50 AZ/LK GW30 long
D1 [mm]
50
D2 [mm]
25
L1 [mm]
180
L2 [mm]
130
m [kg]
0,6

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
P.PM.2000Potentiometer 2000 ohm built-in20000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037
Article number
P.PM.2000
Description
Potentiometer 2000 ohm built-in
Ohm [ohm]
2000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [-]m [kg]
P.PM.TWS.7,20Gear set 68.34.30.487,200,13
P.PM.TWS.10,08Gear set 30.21.30.4810,00,10
P.PM.TWS.13,92Gear set 30.29.30.4813,90,10
P.PM.TWS.16,32Gear set 30.34.30.4816,30,10
P.PM.TWS.23,31Gear set 21.34.30.4823,30,10
P.PM.TWS.27,20Gear set 18.34.30.4827,20,10
Article number
P.PM.TWS.7,20
Description
Gear set 68.34.30.48
i [-]
7,20
m [kg]
0,13
Article number
P.PM.TWS.10,08
Description
Gear set 30.21.30.48
i [-]
10,0
m [kg]
0,10
Article number
P.PM.TWS.13,92
Description
Gear set 30.29.30.48
i [-]
13,9
m [kg]
0,10
Article number
P.PM.TWS.16,32
Description
Gear set 30.34.30.48
i [-]
16,3
m [kg]
0,10
Article number
P.PM.TWS.23,31
Description
Gear set 21.34.30.48
i [-]
23,3
m [kg]
0,10
Article number
P.PM.TWS.27,20
Description
Gear set 18.34.30.48
i [-]
27,2
m [kg]
0,10

Drive systems for ventilation

A healthy climate in the stable determines
the productivity of animals, the growth, feed consumption, the stress level and the risk of infection. Fresh air is of great importance, whereby it has to enter in an optimum direction, at the right height and speed. Our gear motors contribute to creating the ideal climate in every stable. We offer the highly innovative KL300 MultiWinch for example, specifically developed for this type of ventilation. The well-known GW motor gearbox series in combination with our THG30 Rack and Pinion system is the solution for opening and closing tunnel doors.

Top opening screens
Top opening screens
Bottom opening screens
Bottom opening screens
Ridge ventilation
Ridge ventilation
●
●
HomeDrive SystemsDrive systems for cowsDrive systems for ventilationTop opening screens

Top opening folding screen (winch)

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Livestock building curtains are available in various versions, such as pleated curtains, roller blinds and extension curtains. There are different drive solutions for different systems. Curtains can be raised by a guide tube, or they can be opened and closed from the top by a cable and pulley.

  • Optimal against wind and rain.
  • Various accessories for an ideal combination.
  • Low-maintenance and low-noise.
  • Cost-effective solution.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Δ) (50/60Hz) [A]I (@ Y) (50/60Hz) [A]m [kg]
P.GW10.3.230.26.LGW10 2.6 1ph 230V for winch drum100 / -1681240,09 / --0,9 / -21
P.GW10.3.400.26.LGW10 2.6 3ph 400V for winch drum100 / 801681240,09 / 0,110,7 / 0,70,4 / 0,421
P.GW10.3.400.52.LGW10 5.2 3ph 400V for winch drum100 / 801911240,18 / 0,221,2 / 1,20,7 / 0,724
P.GW30.2.230.26.LGW30 2.6 1ph 230V for winch drum300 / -2201450,12 / --1,3 / -27
P.GW30.400.26.LGW30 2.6 3ph 400V for winch drum300 / 2402201450,25 / 0,301,4 / 1,40,8 / 0,827
P.GW30.400.52.LGW30 5.2 3ph 400V for winch drum300 / 2402201450,37 / 0,442,1 / 2,11,2 / 1,230
P.GW40.2.230.26.LGW40 2.6 1ph 230V for winch drum400 / -2201370,25 / --3,2 / -29
P.GW40.400.26.LGW40 2.6 3ph 400V for winch drum400 / 3202201590,37 / 0,441,7 / 1,71,0 / 1,032
P.GW40.3.400.52.LGW40 5.2 3ph 400V for winch drum400 / 3202201370,55 / 0,662,6 / 2,61,5 / 1,532
Article number
P.GW10.3.230.26.L
Description
GW10 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
100 / -
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Δ) (50/60Hz) [A]
-
I (@ Y) (50/60Hz) [A]
0,9 / -
m [kg]
21
Article number
P.GW10.3.400.26.L
Description
GW10 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
m [kg]
21
Article number
P.GW10.3.400.52.L
Description
GW10 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
m [kg]
24
Article number
P.GW30.2.230.26.L
Description
GW30 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Δ) (50/60Hz) [A]
-
I (@ Y) (50/60Hz) [A]
1,3 / -
m [kg]
27
Article number
P.GW30.400.26.L
Description
GW30 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
m [kg]
27
Article number
P.GW30.400.52.L
Description
GW30 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
m [kg]
30
Article number
P.GW40.2.230.26.L
Description
GW40 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
400 / -
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,25 / -
I (@ Δ) (50/60Hz) [A]
-
I (@ Y) (50/60Hz) [A]
3,2 / -
m [kg]
29
Article number
P.GW40.400.26.L
Description
GW40 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
400 / 320
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
m [kg]
32
Article number
P.GW40.3.400.52.L
Description
GW40 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
400 / 320
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
m [kg]
32

Cable winch drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.GW10Single cable winch drum GW10906350181182,8
P.LT1.GWSingle cable winch drum GW20/30/40906350281481,8
Article number
P.LT1.GW10
Description
Single cable winch drum GW10
L [mm]
90
B [mm]
63
D1 [mm]
50
D2 [mm]
18
D3 [mm]
118
m [kg]
2,8
Article number
P.LT1.GW
Description
Single cable winch drum GW20/30/40
L [mm]
90
B [mm]
63
D1 [mm]
50
D2 [mm]
28
D3 [mm]
148
m [kg]
1,8

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

Slide bearing plate

ArticleDescriptionA [mm]H [mm]L [mm]m [kg]
P.GL100.H.L158Slide bearing plate 1" H A100 L158 mm1001331580,2
P.GL100.H.L180Slide bearing plate 1" H A122 L180 mm1221551800,2
Article number
P.GL100.H.L158
Description
Slide bearing plate 1" H A100 L158 mm
A [mm]
100
H [mm]
133
L [mm]
158
m [kg]
0,2
Article number
P.GL100.H.L180
Description
Slide bearing plate 1" H A122 L180 mm
A [mm]
122
H [mm]
155
L [mm]
180
m [kg]
0,2

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
P.PM.2000Potentiometer 2000 ohm built-in20000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037
Article number
P.PM.2000
Description
Potentiometer 2000 ohm built-in
Ohm [ohm]
2000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [-]m [kg]
P.PM.TWS.16,32Gear set 30.34.30.4816,30,10
P.PM.TWS.23,31Gear set 21.34.30.4823,30,10
P.PM.TWS.27,20Gear set 18.34.30.4827,20,10
P.PM.TWS.31,50Gear set 16.35.30.4831,50,10
Article number
P.PM.TWS.16,32
Description
Gear set 30.34.30.48
i [-]
16,3
m [kg]
0,10
Article number
P.PM.TWS.23,31
Description
Gear set 21.34.30.48
i [-]
23,3
m [kg]
0,10
Article number
P.PM.TWS.27,20
Description
Gear set 18.34.30.48
i [-]
27,2
m [kg]
0,10
Article number
P.PM.TWS.31,50
Description
Gear set 16.35.30.48
i [-]
31,5
m [kg]
0,10

Drive systems for ventilation

A healthy climate in the stable determines
the productivity of animals, the growth, feed consumption, the stress level and the risk of infection. Fresh air is of great importance, whereby it has to enter in an optimum direction, at the right height and speed. Our gear motors contribute to creating the ideal climate in every stable. We offer the highly innovative KL300 MultiWinch for example, specifically developed for this type of ventilation. The well-known GW motor gearbox series in combination with our THG30 Rack and Pinion system is the solution for opening and closing tunnel doors.

Top opening screens
Top opening screens
Bottom opening screens
Bottom opening screens
Ridge ventilation
Ridge ventilation
●
●
HomeDrive SystemsDrive systems for cowsDrive systems for ventilationTop opening screens

Top opening folding screen (tube)

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Livestock building curtains are available in various versions, such as pleated curtains, roller blinds and extension curtains. There are different drive solutions for different systems. Curtains can be raised by a guide tube, or they can be opened and closed from the top by a cable and pulley.

  • Optimal against wind and rain.
  • Various accessories for an ideal combination.
  • Low-maintenance and low-noise.
  • Cost-effective solution.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW10.3.230.26.KWGW10 2.6 1ph 230V with CW+CH 10B z16100 / -2,6 / -1681240,09 / -0,9 / --21
P.GW10.3.230.52.KWGW10 5.2 1ph 230V with CW+CH 10B z16100 / -5,2 / -1911240,18 / -1,3 / --24
P.GW10.3.400.26.KWGW10 2.6 3ph 400V with CW+CH 10B z16100 / 802,6 / 3,11681240,09 / 0,110,4 / 0,40,7 / 0,721
P.GW10.3.400.52.KWGW10 5.2 3ph 400V with CW+CH 10B z16100 / 805,2 / 6,21911240,18 / 0,220,7 / 0,71,2 / 1,224
P.GW30.2.230.26.KWGW30 2.6 1ph 230V with CW+CH 10B z16300 / -2,6 / -2201450,12 / -1,3 / --21
P.GW30.2.230.52.KWGW30 5.2 1ph 230V with CW+CH 10B z16300 / -5,2 / -2201450,55 / -4,5 / --27
P.GW30.400.26.KWGW30 2.6 3ph 400V with CW+CH 10B z16300 / 2402,6 / 3,12201450,25 / 0,300,8 / 0,81,4 / 1,424
P.GW30.400.52.KWGW30 5.2 3ph 400V with CW+CH 10B z16300 / 2405,2 / 6,22201450,37 / 0,441,2 / 1,22,1 / 2,127
P.GW40.2.230.26.KWGW40 2.6 1ph 230V with CW+CH 10B z16400 / -2,6 / -2201370,25 / -3,2 / --29
P.GW40.3.230.52.KWGW40 5.2 1ph 230V with CW+CH 10B z16400 / -5,2 / -2421590,55 / -4,4 / --29
P.GW40.400.26.KWGW40 2.6 3ph 400V with CW+CH 10B z16400 / 3202,6 / 3,12201590,37 / 0,441,0 / 1,01,7 / 1,729
P.GW40.3.400.52.KWGW40 5.2 3ph 400V with CW+CH 10B z16400 / 3205,2 / 6,22201370,55 / 0,661,5 / 1,52,6 / 2,629
Article number
P.GW10.3.230.26.KW
Description
GW10 2.6 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
0,9 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.230.52.KW
Description
GW10 5.2 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
5,2 / -
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
24
Article number
P.GW10.3.400.26.KW
Description
GW10 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
P.GW10.3.400.52.KW
Description
GW10 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
P.GW30.2.230.26.KW
Description
GW30 2.6 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW30.2.230.52.KW
Description
GW30 5.2 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
5,2 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,55 / -
I (@ Y) (50/60Hz) [A]
4,5 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
27
Article number
P.GW30.400.26.KW
Description
GW30 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
24
Article number
P.GW30.400.52.KW
Description
GW30 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
27
Article number
P.GW40.2.230.26.KW
Description
GW40 2.6 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,25 / -
I (@ Y) (50/60Hz) [A]
3,2 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
29
Article number
P.GW40.3.230.52.KW
Description
GW40 5.2 1ph 230V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / -
n (50/60Hz) [rpm]
5,2 / -
L [mm]
242
D [mm]
159
P (50/60Hz) [kW]
0,55 / -
I (@ Y) (50/60Hz) [A]
4,4 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
29
Article number
P.GW40.400.26.KW
Description
GW40 2.6 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
29
Article number
P.GW40.3.400.52.KW
Description
GW40 5.2 3ph 400V with CW+CH 10B z16
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
29

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

Tube bolt sprocket

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.BBKWL10B.Z16.D100Tube bolt sprocket 10B z16 - 1"10B z16D10042034961500,8
Article number
P.BBKWL10B.Z16.D100
Description
Tube bolt sprocket 10B z16 - 1"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
150
m [kg]
0,8

Weld sprocket

ArticleDescriptionChainShaftTmax [Nm]Db [mm]D [mm]L [mm]m [kg]
P.LKWL10B.Z16.D100Weld sprocket 10B z16 - 1" and 2"10B z16D1004203496300,5
Article number
P.LKWL10B.Z16.D100
Description
Weld sprocket 10B z16 - 1" and 2"
Chain
10B z16
Shaft
D100
Tmax [Nm]
420
Db [mm]
34
D [mm]
96
L [mm]
30
m [kg]
0,5

Slide bearing plate

ArticleDescriptionA [mm]H [mm]L [mm]m [kg]
P.GL100.H.L158Slide bearing plate 1" H A100 L158 mm1001331580,2
P.GL100.H.L180Slide bearing plate 1" H A122 L180 mm1221551800,2
Article number
P.GL100.H.L158
Description
Slide bearing plate 1" H A100 L158 mm
A [mm]
100
H [mm]
133
L [mm]
158
m [kg]
0,2
Article number
P.GL100.H.L180
Description
Slide bearing plate 1" H A122 L180 mm
A [mm]
122
H [mm]
155
L [mm]
180
m [kg]
0,2

Cable ring

ArticleDescriptionD1 [mm]D2 [mm]m [kg]
P.KABELRINGCable clamp 1" d36 D50 4xØ4,550360,09
Article number
P.KABELRING
Description
Cable clamp 1" d36 D50 4xØ4,5
D1 [mm]
50
D2 [mm]
36
m [kg]
0,09

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
P.PM.2000Potentiometer 2000 ohm built-in20000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037
Article number
P.PM.2000
Description
Potentiometer 2000 ohm built-in
Ohm [ohm]
2000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [-]m [kg]
P.PM.TWS.16,32Gear set 30.34.30.4816,30,10
P.PM.TWS.23,31Gear set 21.34.30.4823,30,10
P.PM.TWS.27,20Gear set 18.34.30.4827,20,10
P.PM.TWS.31,50Gear set 16.35.30.4831,50,10
Article number
P.PM.TWS.16,32
Description
Gear set 30.34.30.48
i [-]
16,3
m [kg]
0,10
Article number
P.PM.TWS.23,31
Description
Gear set 21.34.30.48
i [-]
23,3
m [kg]
0,10
Article number
P.PM.TWS.27,20
Description
Gear set 18.34.30.48
i [-]
27,2
m [kg]
0,10
Article number
P.PM.TWS.31,50
Description
Gear set 16.35.30.48
i [-]
31,5
m [kg]
0,10

Drive systems for ventilation

A healthy climate in the stable determines
the productivity of animals, the growth, feed consumption, the stress level and the risk of infection. Fresh air is of great importance, whereby it has to enter in an optimum direction, at the right height and speed. Our gear motors contribute to creating the ideal climate in every stable. We offer the highly innovative KL300 MultiWinch for example, specifically developed for this type of ventilation. The well-known GW motor gearbox series in combination with our THG30 Rack and Pinion system is the solution for opening and closing tunnel doors.

Top opening screens
Top opening screens
Bottom opening screens
Bottom opening screens
Ridge ventilation
Ridge ventilation
●
●
HomeDrive SystemsDrive systems for cowsDrive systems for ventilationTop opening screens

Top opening fixed screen (winch)

How do I make a calculation?

We are happy to help you with making a calculation

Get in contact with us
Print this system (pdf)

Click here to create a PDF of the page

Download

Livestock building curtains are available in various versions, such as pleated curtains, roller blinds and extension curtains. There are different drive solutions for different systems. Curtains can be raised by a guide tube, or they can be opened and closed from the top by a cable and pulley.

  • Optimal against wind and rain.
  • Various accessories for an ideal combination.
  • Low-maintenance and low-noise.
  • Cost-effective solution.

GW motor gearbox

ArticleDescriptionT (50/60Hz) [Nm]n (50/60Hz) [rpm]L [mm]D [mm]P (50/60Hz) [kW]I (@ Y) (50/60Hz) [A]I (@ Δ) (50/60Hz) [A]m [kg]
P.GW10.3.230.26.LGW10 2.6 1ph 230V for winch drum100 / -2,6 / -1681240,09 / -0,9 / --21
P.GW10.3.400.26.LGW10 2.6 3ph 400V for winch drum100 / 802,6 / 3,11681240,09 / 0,110,4 / 0,40,7 / 0,721
P.GW10.3.400.52.LGW10 5.2 3ph 400V for winch drum100 / 805,2 / 6,21911240,18 / 0,220,7 / 0,71,2 / 1,224
P.GW30.2.230.26.LGW30 2.6 1ph 230V for winch drum300 / -2,6 / -2201450,12 / -1,3 / --27
P.GW30.400.26.LGW30 2.6 3ph 400V for winch drum300 / 2402,6 / 3,12201450,25 / 0,300,8 / 0,81,4 / 1,427
P.GW30.400.52.LGW30 5.2 3ph 400V for winch drum300 / 2405,2 / 6,32201450,37 / 0,441,2 / 1,22,1 / 2,130
P.GW40.2.230.26.LGW40 2.6 1ph 230V for winch drum400 / -2,6 / -2201370,25 / -3,2 / --29
P.GW40.400.26.LGW40 2.6 3ph 400V for winch drum400 / 3202,6 / 3,12201590,37 / 0,441,0 / 1,01,7 / 1,732
P.GW40.3.400.52.LGW40 5.2 3ph 400V for winch drum400 / 3205,2 / 6,22201370,55 / 0,661,5 / 1,52,6 / 2,632
Article number
P.GW10.3.230.26.L
Description
GW10 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
100 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / -
I (@ Y) (50/60Hz) [A]
0,9 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
21
Article number
P.GW10.3.400.26.L
Description
GW10 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
168
D [mm]
124
P (50/60Hz) [kW]
0,09 / 0,11
I (@ Y) (50/60Hz) [A]
0,4 / 0,4
I (@ Δ) (50/60Hz) [A]
0,7 / 0,7
m [kg]
21
Article number
P.GW10.3.400.52.L
Description
GW10 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
100 / 80
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
191
D [mm]
124
P (50/60Hz) [kW]
0,18 / 0,22
I (@ Y) (50/60Hz) [A]
0,7 / 0,7
I (@ Δ) (50/60Hz) [A]
1,2 / 1,2
m [kg]
24
Article number
P.GW30.2.230.26.L
Description
GW30 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
300 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,12 / -
I (@ Y) (50/60Hz) [A]
1,3 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
27
Article number
P.GW30.400.26.L
Description
GW30 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,25 / 0,30
I (@ Y) (50/60Hz) [A]
0,8 / 0,8
I (@ Δ) (50/60Hz) [A]
1,4 / 1,4
m [kg]
27
Article number
P.GW30.400.52.L
Description
GW30 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
300 / 240
n (50/60Hz) [rpm]
5,2 / 6,3
L [mm]
220
D [mm]
145
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,2 / 1,2
I (@ Δ) (50/60Hz) [A]
2,1 / 2,1
m [kg]
30
Article number
P.GW40.2.230.26.L
Description
GW40 2.6 1ph 230V for winch drum
T (50/60Hz) [Nm]
400 / -
n (50/60Hz) [rpm]
2,6 / -
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,25 / -
I (@ Y) (50/60Hz) [A]
3,2 / -
I (@ Δ) (50/60Hz) [A]
-
m [kg]
29
Article number
P.GW40.400.26.L
Description
GW40 2.6 3ph 400V for winch drum
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
2,6 / 3,1
L [mm]
220
D [mm]
159
P (50/60Hz) [kW]
0,37 / 0,44
I (@ Y) (50/60Hz) [A]
1,0 / 1,0
I (@ Δ) (50/60Hz) [A]
1,7 / 1,7
m [kg]
32
Article number
P.GW40.3.400.52.L
Description
GW40 5.2 3ph 400V for winch drum
T (50/60Hz) [Nm]
400 / 320
n (50/60Hz) [rpm]
5,2 / 6,2
L [mm]
220
D [mm]
137
P (50/60Hz) [kW]
0,55 / 0,66
I (@ Y) (50/60Hz) [A]
1,5 / 1,5
I (@ Δ) (50/60Hz) [A]
2,6 / 2,6
m [kg]
32

Cable winch drum

ArticleDescriptionL [mm]B [mm]D1 [mm]D2 [mm]D3 [mm]m [kg]
P.LT1.GW10Single cable winch drum GW10906350181182,8
P.LT1.GWSingle cable winch drum GW20/30/40906350281481,8
Article number
P.LT1.GW10
Description
Single cable winch drum GW10
L [mm]
90
B [mm]
63
D1 [mm]
50
D2 [mm]
18
D3 [mm]
118
m [kg]
2,8
Article number
P.LT1.GW
Description
Single cable winch drum GW20/30/40
L [mm]
90
B [mm]
63
D1 [mm]
50
D2 [mm]
28
D3 [mm]
148
m [kg]
1,8

Mounting plate

ArticleDescriptionA [mm]H [mm]m [kg]
P.MP.GW.H.A100Mounting plate GW right angle A100 H1111001112,0
P.MP.GW.H.A122Mounting plate GW right angle A122 H1331221332,2
Article number
P.MP.GW.H.A100
Description
Mounting plate GW right angle A100 H111
A [mm]
100
H [mm]
111
m [kg]
2,0
Article number
P.MP.GW.H.A122
Description
Mounting plate GW right angle A122 H133
A [mm]
122
H [mm]
133
m [kg]
2,2

Encoder I-DE

ArticleDescriptionn [rpm]m [kg]
P.IDE.024.01I-DE 24V AC/DC digital/analogue Enc. built-in1,2 - 8,00,06
Article number
P.IDE.024.01
Description
I-DE 24V AC/DC digital/analogue Enc. built-in
n [rpm]
1,2 - 8,0
m [kg]
0,06

Potentiometer

ArticleDescriptionOhm [ohm]m [kg]
P.PM.500Potentiometer 500 ohm built-in5000,037
P.PM.1000Potentiometer 1000 ohm built-in10000,037
P.PM.5000Potentiometer 5000 ohm built-in50000,037
P.PM.10000Potentiometer 10 000 ohm built-in100000,037
P.PM.2000Potentiometer 2000 ohm built-in20000,037
Article number
P.PM.500
Description
Potentiometer 500 ohm built-in
Ohm [ohm]
500
m [kg]
0,037
Article number
P.PM.1000
Description
Potentiometer 1000 ohm built-in
Ohm [ohm]
1000
m [kg]
0,037
Article number
P.PM.5000
Description
Potentiometer 5000 ohm built-in
Ohm [ohm]
5000
m [kg]
0,037
Article number
P.PM.10000
Description
Potentiometer 10 000 ohm built-in
Ohm [ohm]
10000
m [kg]
0,037
Article number
P.PM.2000
Description
Potentiometer 2000 ohm built-in
Ohm [ohm]
2000
m [kg]
0,037

Potentiometer gear set

ArticleDescriptioni [-]m [kg]
P.PM.TWS.16,32Gear set 30.34.30.4816,30,10
P.PM.TWS.23,31Gear set 21.34.30.4823,30,10
P.PM.TWS.27,20Gear set 18.34.30.4827,20,10
P.PM.TWS.31,50Gear set 16.35.30.4831,50,10
Article number
P.PM.TWS.16,32
Description
Gear set 30.34.30.48
i [-]
16,3
m [kg]
0,10
Article number
P.PM.TWS.23,31
Description
Gear set 21.34.30.48
i [-]
23,3
m [kg]
0,10
Article number
P.PM.TWS.27,20
Description
Gear set 18.34.30.48
i [-]
27,2
m [kg]
0,10
Article number
P.PM.TWS.31,50
Description
Gear set 16.35.30.48
i [-]
31,5
m [kg]
0,10

Drive systems for ventilation

A healthy climate in the stable determines
the productivity of animals, the growth, feed consumption, the stress level and the risk of infection. Fresh air is of great importance, whereby it has to enter in an optimum direction, at the right height and speed. Our gear motors contribute to creating the ideal climate in every stable. We offer the highly innovative KL300 MultiWinch for example, specifically developed for this type of ventilation. The well-known GW motor gearbox series in combination with our THG30 Rack and Pinion system is the solution for opening and closing tunnel doors.

Top opening screens
Top opening screens
Bottom opening screens
Bottom opening screens
Ridge ventilation
Ridge ventilation

De Gier Drive Systems
+ 31 174 29 20 89

Markets
HorticultureIntensive LivestockCrop StorageNon-residential buildings
Drivesystems
Glass greenhousesPoly greenhousesWide-span greenhousesNon-residential buildingsPoultryPig buildingsCow buildingsCrop storage
Products
CatalogueBrochuresDocuments
More
NewsEventsSupportJobsAbout us
Contact
De Gier Drive Systems

Westlandseweg 9
2291 PG Wateringen
Netherlands
+31 174 29 20 89
sales@degierdrivesystems.com

We use cookies just to track visits to our website, we store no personal details. We also us commercial cookies, accept them for a better user experience. Please refer to our Privacy Policy.
