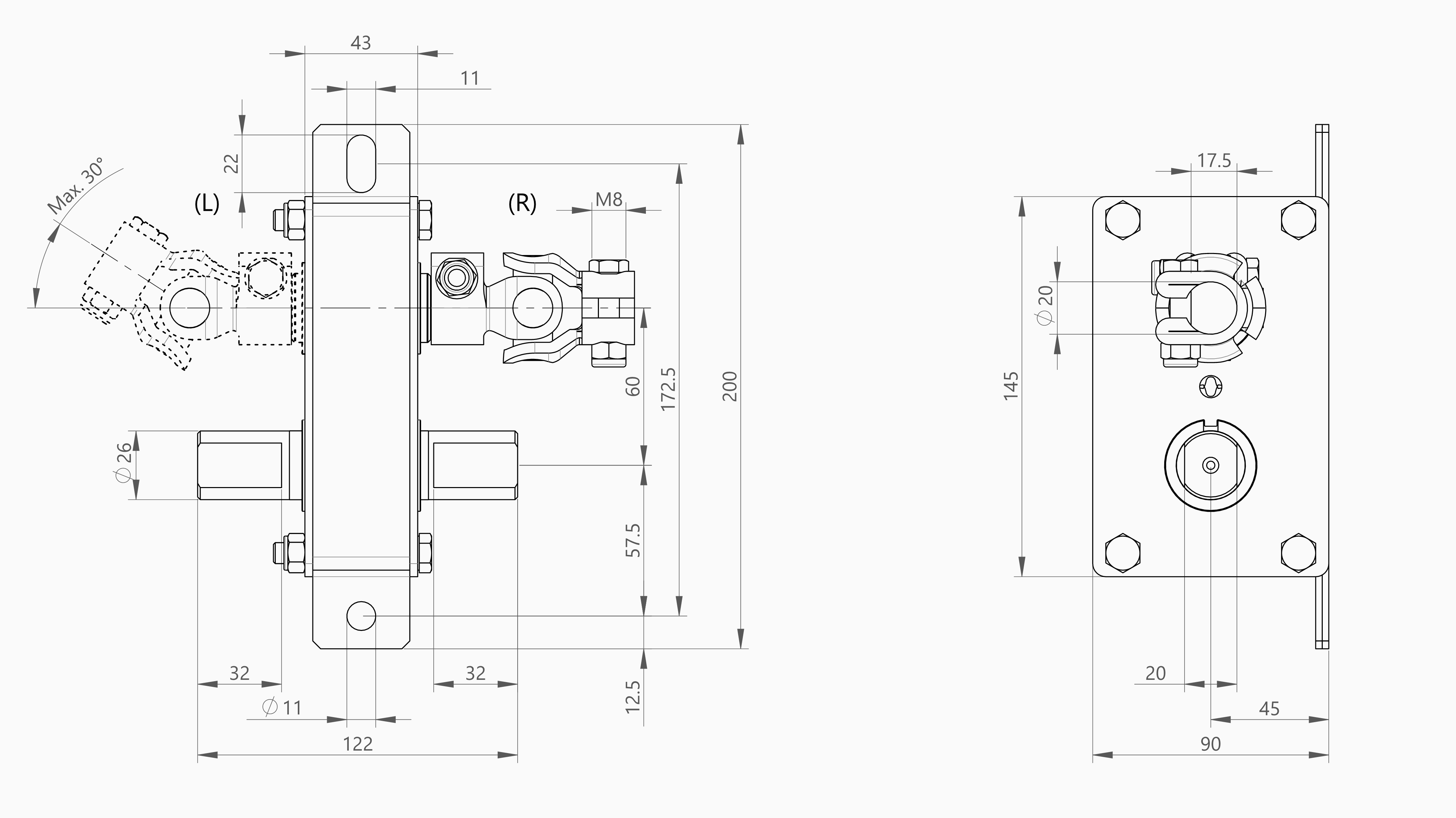

THG30 distribution box and KRK left horizontal
Article properties
Article number
P.THG30.AK.L.KRK.L
Description
THG30 distribution box and KRK left horizontal
Tmax [Nm]
50
i [-]
1:1
m [kg]
2.75
Article Information
Some features:
- Available in both left and right hand versions.
- Both versions are equipped with a universal joint on the output shaft to accommodate angles up to 30°.
- Sleeve joint couplings are optionally available for 1” or 5/4” drive tube.
- A weld joint is available for coupling between the universal joint and the 1” drive tube to the GWK worm gearbox.
- The distribution box is available in both horizontal and upright versions.
Articles
Description
THG30 distribution box and KRK left horizontal
m [kg]
2.75
Tmax [Nm]
50
i [-]
1:1
Boostfactor
Description
THG30 distribution box and KRK right horizontal
m [kg]
2.75
Tmax [Nm]
50
i [-]
1:1
Boostfactor
| Article | Description | Tmax [Nm] | i [-] | m [kg] |
| P.THG30.AK.L.KRK.L | THG30 distribution box and KRK left horizontal | 50 | 1:1 | 2.75 |
2 P.THG30.AK.L.KRK.L 11 THG30 distribution box and KRK left horizontal 12 10 P.THG30.AK.L.KRK.jpg | ||||
| P.THG30.AK.L.KRK.R | THG30 distribution box and KRK right horizontal | 50 | 1:1 | 2.75 |
2 P.THG30.AK.L.KRK.R 11 THG30 distribution box and KRK right horizontal 12 10 P.THG30.AK.L.KRK.jpg |
