Universal joint 1" 300 Nm
Article properties
Article number
P.KRKZ.D100
Description
Universal joint 1" 300 Nm
Tmax [Nm]
300

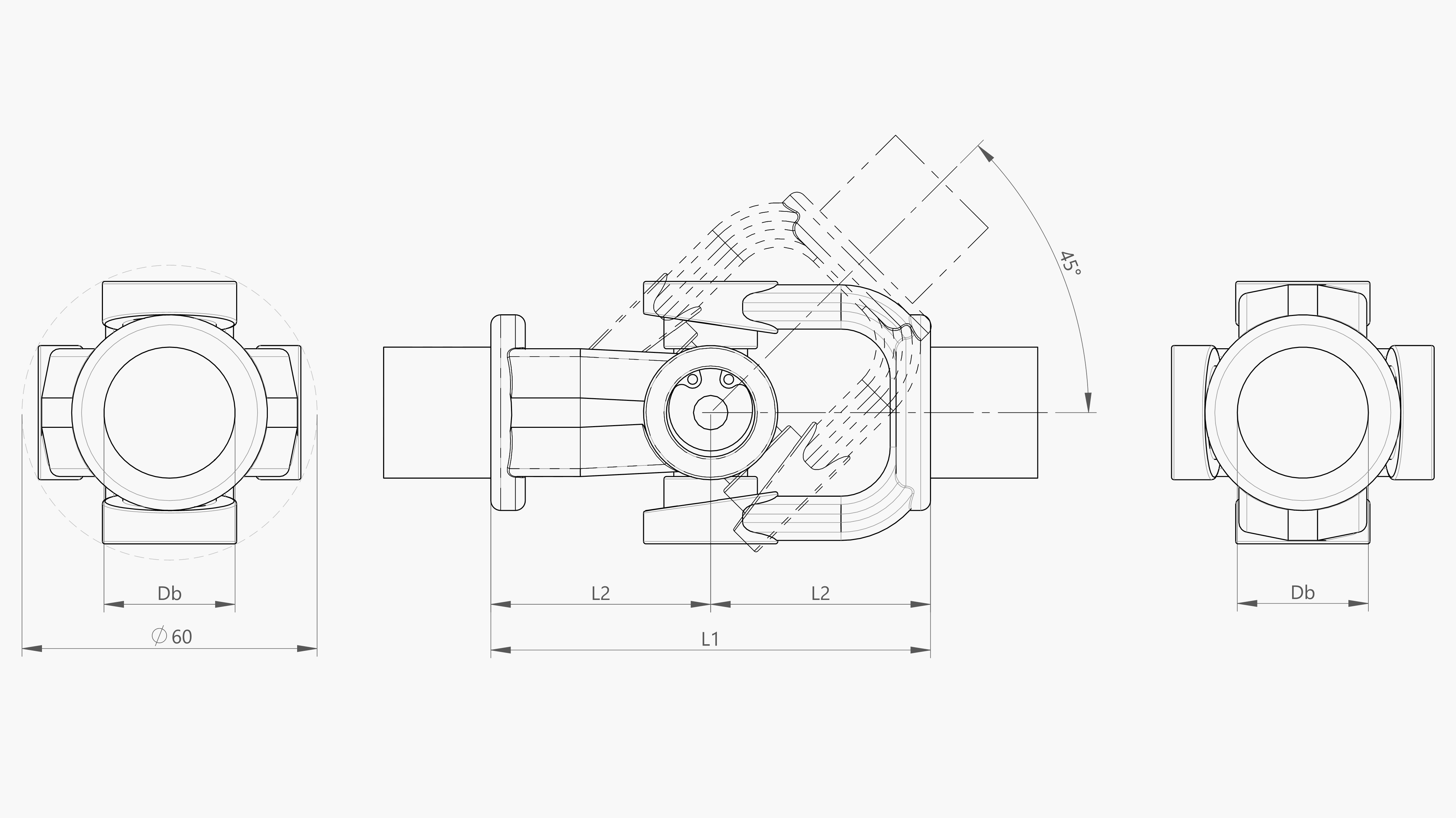

Db [mm]
34
L1 [mm]
84
L2 [mm]
42
m [kg]
0,8
Articles
Description
Universal joint 1" 300 Nm
m [kg]
0,8
A
D100
B
D100
Tmax [Nm]
300
A [°]
30
Db [inch]
1
Db [inch]
1
Db [mm]
34
D2 [mm]
-
D3 [mm]
L1 [mm]
84
L2 [mm]
42
Boostfactor
Description
Universal joint 5/4" 550Nm
m [kg]
1,1
A
D125
B
D125
Tmax [Nm]
550
A [°]
30
Db [inch]
5/4
Db [inch]
5/4
Db [mm]
43
D2 [mm]
-
D3 [mm]
60
L1 [mm]
92
L2 [mm]
46
Boostfactor
| Article | Description | Tmax [Nm] | Db [mm] | L1 [mm] | L2 [mm] | m [kg] |
| P.KRKZ.D100 | Universal joint 1" 300 Nm | 300 | 34 | 84 | 42 | 0,8 |
| P.KRKZ.D125 | Universal joint 5/4" 550Nm | 550 | 43 | 92 | 46 | 1,1 |
General Information
A universal joint, also known as a cardan joint, makes it possible to transmit torque between shafts at an angle to each other. Depending on the applied universal joint, the maximum angle is 30° or 45°. The maximum torque that can be transmitted also depends on the type of universal joint used. The universal joints are available with various connection possibilities, such as welds and tube bolted connections.
