CC-set 5/4" z16 p1/2" GW10
Article properties
Article number
P.KK08B.Z16.D18.D125
Description
CC-set 5/4" z16 p1/2" GW10

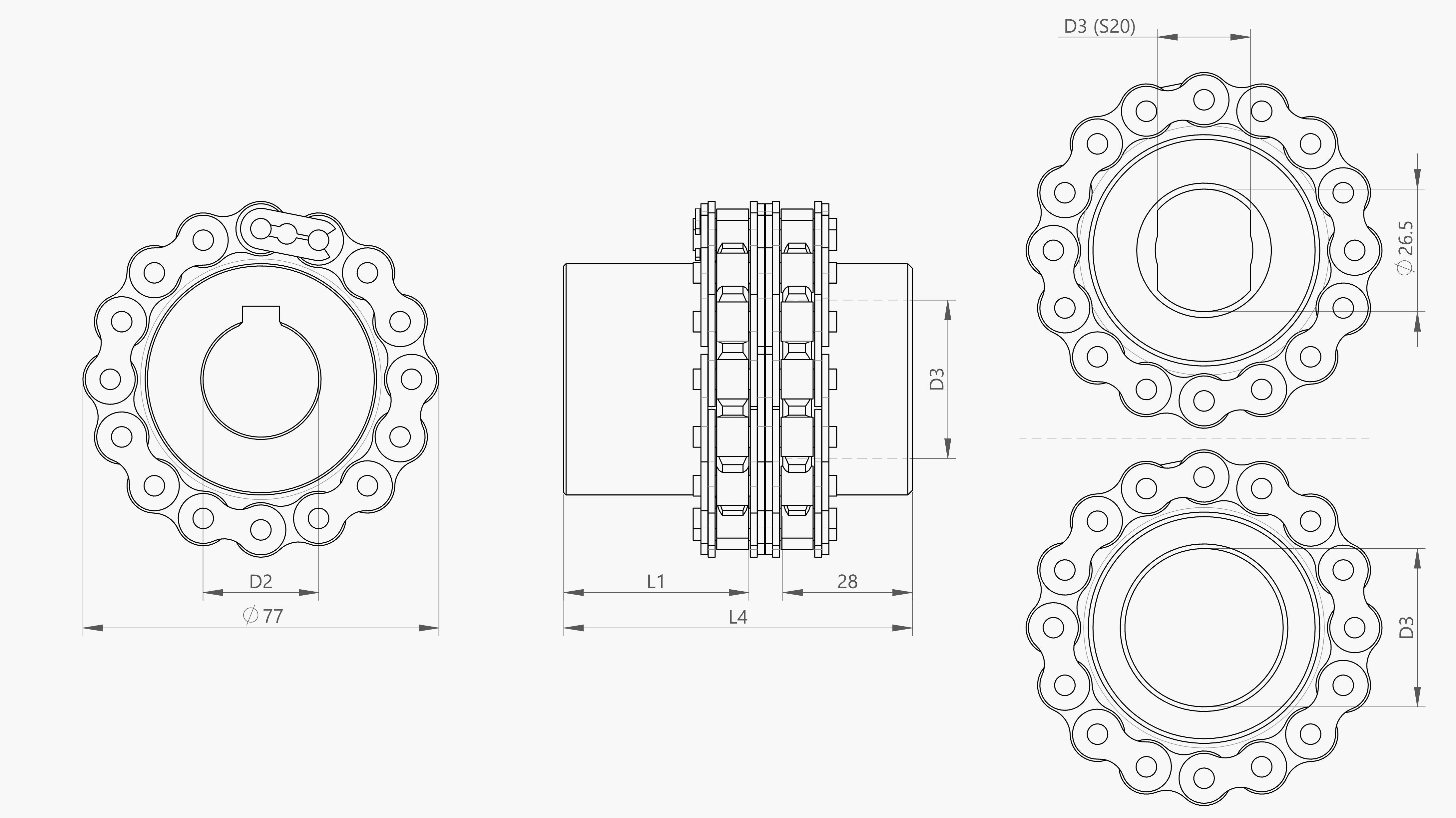

Tmax [Nm]
240
Z [teeth]
16
D1 [mm]
77
D2 [mm]
18
D3 [mm]
43,2
L1 [mm]
28
L4 [mm]
64
m [kg]
0,6
Article Information
This set conform DIN 8187 ISO 08B-2 consists of:
- A motor sprocket with 12 or 16 teeth.
- A duplex chain (p = 1/2”) with master link.
- The weld sprocket is available for drive tube 3/4", 1" of 5/4" or an sprocket S20 or ZK.
- The sprocket (1/2” x 5/16”) is only suitable for GW10.
- The S20 version is suitable for the THG rack gearcase with S20 shafts
- The ZK version is suitable for the THG rack box with hexagonal shafts.
Articles
Description
CC-set 3/4" z12 p1/2" GW10
m [kg]
0,5
A
D18
B
D075
Tmax [Nm]
120
Z [teeth]
12
Db [inch]
3/4
D1 [mm]
61
D2 [mm]
18
D3 [mm]
27,4
D4 [mm]
L1 [mm]
28
L2 [mm]
L3 [mm]
L4 [mm]
64
Boostfactor
Description
CC-set 1" z12 p1/2" GW10
m [kg]
0,5
A
D18
B
D100
Tmax [Nm]
120
Z [teeth]
12
Db [inch]
1
D1 [mm]
61
D2 [mm]
18
D3 [mm]
34,2
D4 [mm]
L1 [mm]
28
L2 [mm]
L3 [mm]
L4 [mm]
64
Boostfactor
Description
CC-set 1" z16 p1/2" GW10
m [kg]
0,7
A
D18
B
D100
Tmax [Nm]
240
Z [teeth]
16
Db [inch]
1
D1 [mm]
77
D2 [mm]
18
D3 [mm]
34,2
D4 [mm]
50
L1 [mm]
28
L2 [mm]
28
L3 [mm]
-
L4 [mm]
64
Boostfactor
Description
CC-set 5/4" z16 p1/2" GW10
m [kg]
0,6
A
D18
B
D125
Tmax [Nm]
240
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
77
D2 [mm]
18
D3 [mm]
43,2
D4 [mm]
50
L1 [mm]
28
L2 [mm]
28
L3 [mm]
-
L4 [mm]
64
Boostfactor
Description
CC-set S20 z16 p1/2" GW10
m [kg]
0,8
A
D18
B
S20
Tmax [Nm]
240
Z [teeth]
16
Db [inch]
-
D1 [mm]
77
D2 [mm]
18
D3 [mm]
S20
D4 [mm]
50
L1 [mm]
28
L2 [mm]
28
L3 [mm]
-
L4 [mm]
64
Boostfactor
Description
CC-set 3/4" z16 GW20/GW40/GWK
m [kg]
1,1
A
D25
B
D075
Tmax [Nm]
240
Z [teeth]
16
Db [inch]
3/4
D1 [mm]
77
D2 [mm]
25
D3 [mm]
27,4
D4 [mm]
50
L1 [mm]
40
L2 [mm]
28
L3 [mm]
-
L4 [mm]
76
Boostfactor
Description
CC-set 1" z16 GW20/GW40/GWK
m [kg]
1,0
A
D25
B
D100
Tmax [Nm]
240
Z [teeth]
16
Db [inch]
1
D1 [mm]
77
D2 [mm]
25
D3 [mm]
34,2
D4 [mm]
50
L1 [mm]
40
L2 [mm]
28
L3 [mm]
-
L4 [mm]
76
Boostfactor
Description
CC-set S20 D25 z16 p1/2" (GW30-80)
m [kg]
1,1
A
D25
B
S20
Tmax [Nm]
240
Z [teeth]
16
Db [inch]
-
D1 [mm]
77
D2 [mm]
25
D3 [mm]
S20
D4 [mm]
50
L1 [mm]
40
L2 [mm]
28
L3 [mm]
-
L4 [mm]
76
Boostfactor
| Article | Description | Tmax [Nm] | Z [teeth] | D1 [mm] | D2 [mm] | D3 [mm] | L1 [mm] | L4 [mm] | m [kg] |
| P.KK08B.Z12.D18.D075 | CC-set 3/4" z12 p1/2" GW10 | 120 | 12 | 61 | 18 | 27,4 | 28 | 64 | 0,5 |
2 P.KK08B.Z12.D18.D075 13 CC-set 3/4" z12 p1/2" GW10 14 16 P.KK10B.Z16.D00.D000.jpg 17 18 CAT_P.KK08B.Z16.D00.D000S20_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z12.D18.D100 | CC-set 1" z12 p1/2" GW10 | 120 | 12 | 61 | 18 | 34,2 | 28 | 64 | 0,5 |
2 P.KK08B.Z12.D18.D100 13 CC-set 1" z12 p1/2" GW10 14 16 P.KK10B.Z16.D00.D000.jpg 17 18 CAT_P.KK08B.Z16.D00.D000S20_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z16.D18.D100 | CC-set 1" z16 p1/2" GW10 | 240 | 16 | 77 | 18 | 34,2 | 28 | 64 | 0,7 |
2 P.KK08B.Z16.D18.D100 13 CC-set 1" z16 p1/2" GW10 14 16 P.KK10B.Z16.D00.D000.jpg 17 18 CAT_P.KK08B.Z16.D00.D000S20_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z16.D18.D125 | CC-set 5/4" z16 p1/2" GW10 | 240 | 16 | 77 | 18 | 43,2 | 28 | 64 | 0,6 |
2 P.KK08B.Z16.D18.D125 13 CC-set 5/4" z16 p1/2" GW10 14 16 P.KK10B.Z16.D00.D000.jpg 17 18 CAT_P.KK08B.Z16.D00.D000S20_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z16.D18.S20 | CC-set S20 z16 p1/2" GW10 | 240 | 16 | 77 | 18 | S20 | 28 | 64 | 0,8 |
2 P.KK08B.Z16.D18.S20 13 CC-set S20 z16 p1/2" GW10 14 16 P.KK10B.Z16.S20.D000.jpg 17 18 CAT_P.KK08B.Z16.D00.D000S20_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z16.D25.D075 | CC-set 3/4" z16 GW20/GW40/GWK | 240 | 16 | 77 | 25 | 27,4 | 40 | 76 | 1,1 |
2 P.KK08B.Z16.D25.D075 13 CC-set 3/4" z16 GW20/GW40/GWK 14 16 P.KK10B.Z16.D00.D000.jpg 17 18 CAT_P.KK10B.Z16.D00.D000_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z16.D25.D100 | CC-set 1" z16 GW20/GW40/GWK | 240 | 16 | 77 | 25 | 34,2 | 40 | 76 | 1,0 |
2 P.KK08B.Z16.D25.D100 13 CC-set 1" z16 GW20/GW40/GWK 14 16 P.KK10B.Z16.D00.D000.jpg 17 18 CAT_P.KK10B.Z16.D00.D000_2D.gif 20 23 10 | |||||||||
| P.KK08B.Z16.D25.S20 | CC-set S20 D25 z16 p1/2" (GW30-80) | 240 | 16 | 77 | 25 | S20 | 40 | 76 | 1,1 |
2 P.KK08B.Z16.D25.S20 13 CC-set S20 D25 z16 p1/2" (GW30-80) 14 16 P.KK10B.Z16.S20.D000.jpg 17 18 CAT_P.KK10B.Z16.D00.D000_2D.gif 20 23 10 |
