Tube bolt chain coupling 10B
HomeProductsCouplingsTube bolt chain couplingsTube bolt chain coupling 10BP.BBKK10B.ZK.D100

Tube bolt CC set 10B ZK z16 5/4"

Download
Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"

Article properties

Article number
P.BBKK10B.ZK.D100
Description
Tube bolt CC set 10B ZK z16 5/4"
Tmax [Nm]
420
Z [teeth]
16
D1 [mm]
-
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
160
m [kg]
1,6
Article Information
Technical Image
Articles
General Information

Article Information

This set conform DIN 8187 ISO 10B-2 consists of:

  • A motor or sprocket with 16 teeth.
  • A duplex chain (p = 5/8”) with master link.
  • The sprocket (5/8” x 3/8”) is suitable for GW10-GW40.
  • The tube bolt sprocket is available for 1” or 5/4” drive tube.

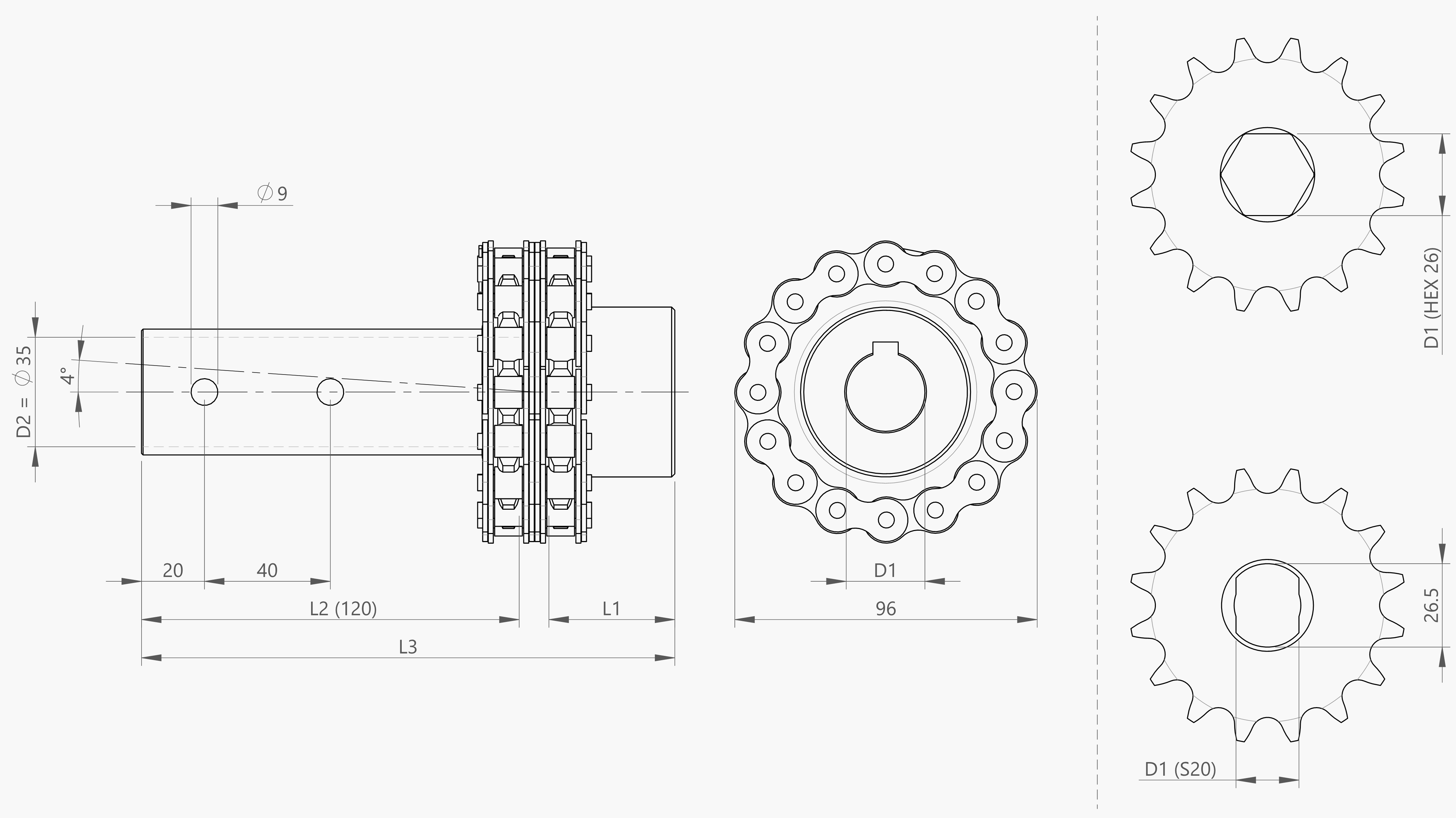

Technical Image

Tube bolt CC set 10B ZK z16 5/4"

Articles

P.BBKK10B.D18.D100 Tube bolt CC set 10B D18 z16 1" GW10
Tube bolt CC set 10B D18 z16 1" GW10

P.BBKK10B.D18.D100

Description
Tube bolt CC set 10B D18 z16 1" GW10
m [kg]
1,6
A
D18
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
18
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
Boostfactor
P.BBKK10B.D18.D125 Tube bolt CC set 10B D18 z16 5/4" GW10
Tube bolt CC set 10B D18 z16 5/4" GW10

P.BBKK10B.D18.D125

Description
Tube bolt CC set 10B D18 z16 5/4" GW10
m [kg]
1,9
A
D18
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
18
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
150
Boostfactor
P.BBKK10B.D25.D100 Tube bolt CC set 10B D25 z16 1"
Tube bolt CC set 10B D25 z16 1"

P.BBKK10B.D25.D100

Description
Tube bolt CC set 10B D25 z16 1"
m [kg]
1,6
A
D25
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
25
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
40
L3 [mm]
120
Boostfactor
P.BBKK10B.D25.D125 Tube bolt CC set 10B D25 z16 5/4"
Tube bolt CC set 10B D25 z16 5/4"

P.BBKK10B.D25.D125

Description
Tube bolt CC set 10B D25 z16 5/4"
m [kg]
1,9
A
D25
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
25
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
40
L3 [mm]
150
Boostfactor
P.BBKK10B.S20.D100 Tube bolt CC set 10B S20 z16 5/4"
Tube bolt CC set 10B S20 z16 5/4"

P.BBKK10B.S20.D100

Description
Tube bolt CC set 10B S20 z16 5/4"
m [kg]
1,6
A
S20
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
-
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
Boostfactor
P.BBKK10B.S20.D125 Tube bolt CC set 10B S20 z16 5/4"
Tube bolt CC set 10B S20 z16 5/4"

P.BBKK10B.S20.D125

Description
Tube bolt CC set 10B S20 z16 5/4"
m [kg]
1,9
A
S20
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
-
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
150
Boostfactor
P.BBKK10B.ZK.D100 Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"

P.BBKK10B.ZK.D100

Description
Tube bolt CC set 10B ZK z16 5/4"
m [kg]
1,6
A
ZK
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
-
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
Boostfactor
P.BBKK10B.ZK.D125 Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"

P.BBKK10B.ZK.D125

Description
Tube bolt CC set 10B ZK z16 5/4"
m [kg]
1,9
A
ZK
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
-
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
150
Boostfactor
P.BBKK10B.D18.D100 Tube bolt CC set 10B D18 z16 1" GW10
Tube bolt CC set 10B D18 z16 1" GW10

P.BBKK10B.D18.D100

Description
Tube bolt CC set 10B D18 z16 1" GW10
m [kg]
1,6
A
D18
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
18
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
Boostfactor
P.BBKK10B.D18.D125 Tube bolt CC set 10B D18 z16 5/4" GW10
Tube bolt CC set 10B D18 z16 5/4" GW10

P.BBKK10B.D18.D125

Description
Tube bolt CC set 10B D18 z16 5/4" GW10
m [kg]
1,9
A
D18
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
18
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
150
Boostfactor
P.BBKK10B.D25.D100 Tube bolt CC set 10B D25 z16 1"
Tube bolt CC set 10B D25 z16 1"

P.BBKK10B.D25.D100

Description
Tube bolt CC set 10B D25 z16 1"
m [kg]
1,6
A
D25
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
25
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
40
L3 [mm]
120
Boostfactor
P.BBKK10B.D25.D125 Tube bolt CC set 10B D25 z16 5/4"
Tube bolt CC set 10B D25 z16 5/4"

P.BBKK10B.D25.D125

Description
Tube bolt CC set 10B D25 z16 5/4"
m [kg]
1,9
A
D25
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
25
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
40
L3 [mm]
150
Boostfactor
P.BBKK10B.S20.D100 Tube bolt CC set 10B S20 z16 5/4"
Tube bolt CC set 10B S20 z16 5/4"

P.BBKK10B.S20.D100

Description
Tube bolt CC set 10B S20 z16 5/4"
m [kg]
1,6
A
S20
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
-
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
Boostfactor
P.BBKK10B.S20.D125 Tube bolt CC set 10B S20 z16 5/4"
Tube bolt CC set 10B S20 z16 5/4"

P.BBKK10B.S20.D125

Description
Tube bolt CC set 10B S20 z16 5/4"
m [kg]
1,9
A
S20
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
-
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
150
Boostfactor
P.BBKK10B.ZK.D100 Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"

P.BBKK10B.ZK.D100

Description
Tube bolt CC set 10B ZK z16 5/4"
m [kg]
1,6
A
ZK
B
D100
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
1
D1 [mm]
-
D2 [mm]
35,0
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
120
Boostfactor
P.BBKK10B.ZK.D125 Tube bolt CC set 10B ZK z16 5/4"
Tube bolt CC set 10B ZK z16 5/4"

P.BBKK10B.ZK.D125

Description
Tube bolt CC set 10B ZK z16 5/4"
m [kg]
1,9
A
ZK
B
D125
Tmax [Nm]
420
Z [teeth]
16
Db [inch]
5/4
D1 [mm]
-
D2 [mm]
43,1
D3 [mm]
96
D4 [mm]
-
L1 [mm]
30
L3 [mm]
150
Boostfactor
ArticleDescriptionTmax [Nm]Z [teeth]D1 [mm]D2 [mm]D3 [mm]D4 [mm]L1 [mm]L3 [mm]m [kg]
P.BBKK10B.D18.D100Tube bolt CC set 10B D18 z16 1" GW10420161835,096-301201601,6
P.BBKK10B.D18.D125Tube bolt CC set 10B D18 z16 5/4" GW10420161843,196-301501901,9
P.BBKK10B.D25.D100Tube bolt CC set 10B D25 z16 1" 420162535,096-401201701,6
P.BBKK10B.D25.D125Tube bolt CC set 10B D25 z16 5/4"420162543,196-401502001,9
P.BBKK10B.S20.D100Tube bolt CC set 10B S20 z16 5/4"42016-35,096-301201601,6
P.BBKK10B.S20.D125Tube bolt CC set 10B S20 z16 5/4"42016-43,196-301501901,9
P.BBKK10B.ZK.D100Tube bolt CC set 10B ZK z16 5/4"42016-35,096-301201601,6
P.BBKK10B.ZK.D125Tube bolt CC set 10B ZK z16 5/4"42016-43,196-301501901,9

General Information

A tube bolt chain coupling accommodates minor differences in angle or alignment between the output shaft of a gearmotor, worm gearbox or rack and pinion unit, with the system's drive shaft.
